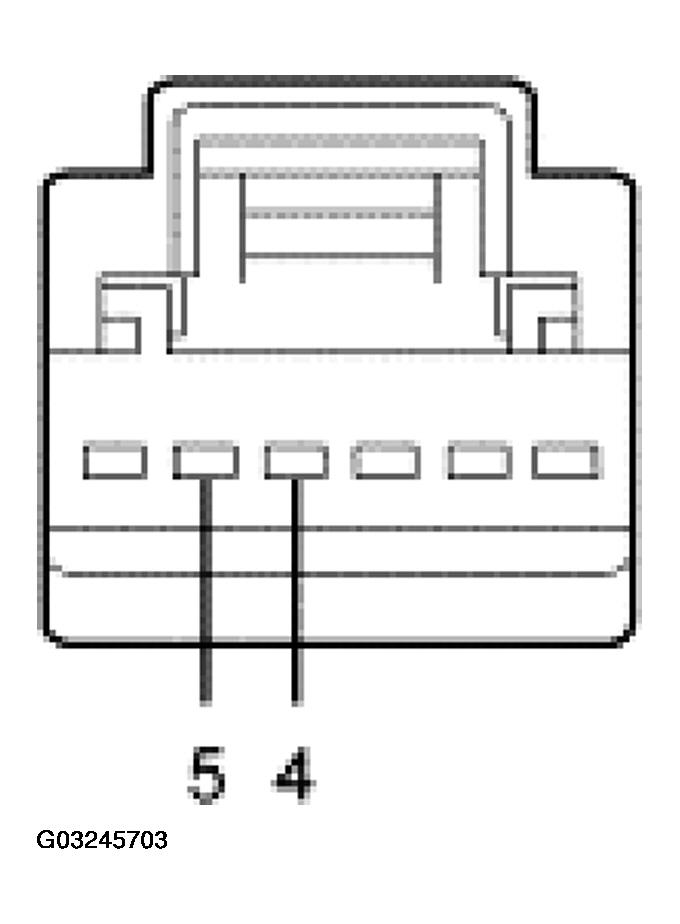

MESSAGE CENTER SWITCH C253 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 1410 (TN/OG) message center return | 0 volts, less than 5 ohms resistance between the instrument cluster and the message center switch. Greater than 10,000 ohms resistance between the instrument cluster and ground. |
| 5 | 1411 (GY/OG) message center switch input | 0 volts, less than 5 ohms resistance between the message center switch and the instrument cluster. Greater than 10,000 ohms resistance between the message center switch and ground. |
