Brake Fluid Level Switch C124
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

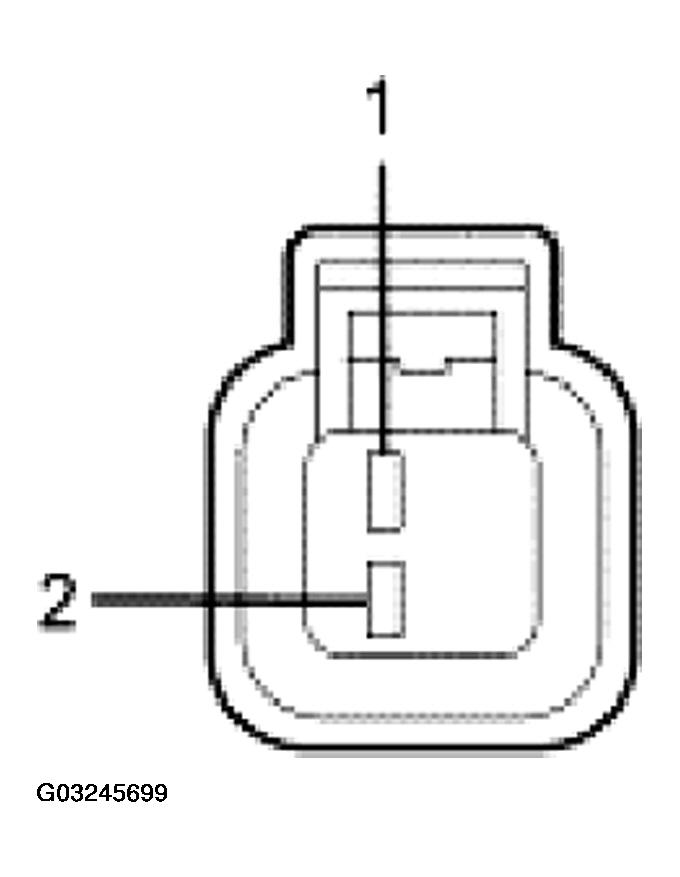

BRAKE FLUID LEVEL SWITCH C124 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1305 (DB) brake fluid level signal circuit | 0 volts, less than 5 ohms resistance between the brake fluid level switch and the SJB. Greater than 10,000 ohms resistance between the brake fluid level switch and chassis ground. |
| 2 | 512 (TN/LG) brake fluid level ground | 0 volts, less than 5 ohms resistance between the brake fluid level switch and chassis ground. |
