Rear Integrated Control Panel (RICP) C9025

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

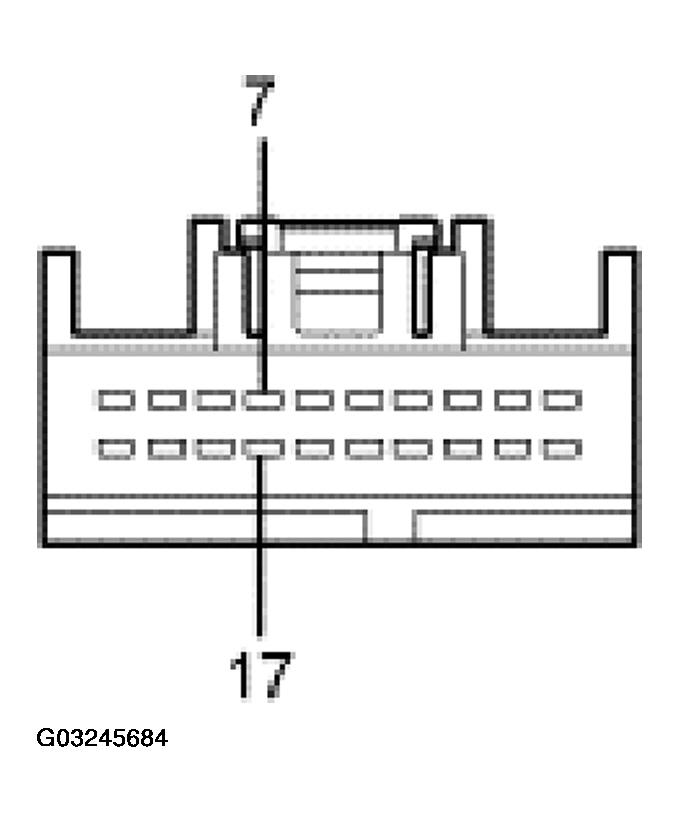

Fig 1: Identifying Rear Integrated Control Panel (RICP) C9025 Pins

Courtesy of FORD MOTOR CO.

REAR INTEGRATED CONTROL PANEL (RICP) C9025 CONNECTOR CIRCUIT REFERENCE

Pin Number (s)	Circuit Designation/Description	Normal Condition/Measurement
7	1205 (BK) ground	0 volts, less than 5 ohms resistance between the RICP and chassis ground.
17	1417 (LG/RD) dimmable backlighting power supply	0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position.
