Power Vent Window Control Switch C2981

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

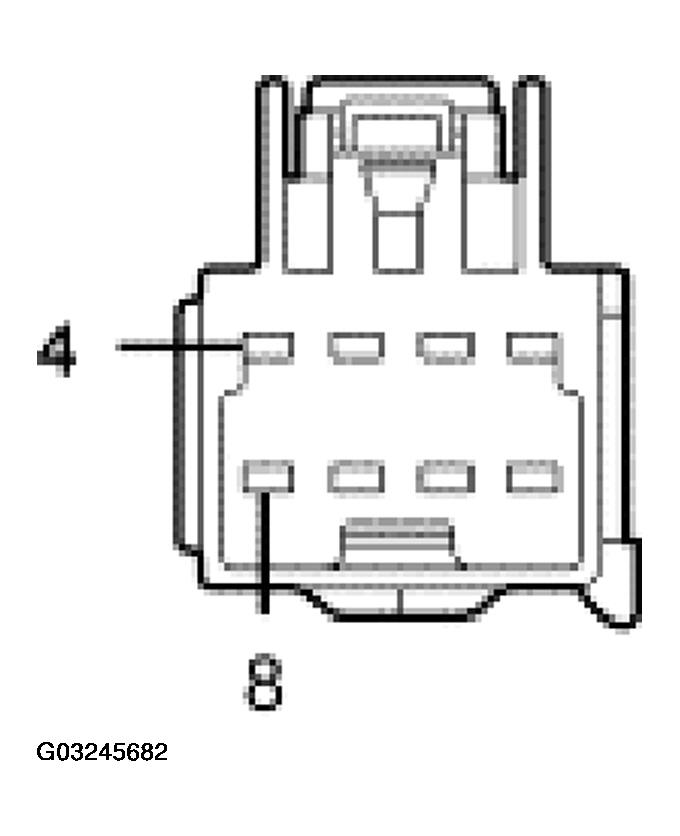

Fig 1: Identifying Power Vent Window Control Switch C2981 Pins
G03245682Courtesy of FORD MOTOR CO.
POWER VENT WINDOW CONTROL SWITCH C2981 CONNECTOR CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
4 1417 (LG/RD) illumination feed for LED 0 volts with the ignition switch in the OFF position. Greater than 10 volts with the ignition switch in the ON position.
8 1205 (BK) ground 0 volts, less than 5 ohms resistance between the power vent window control switch and ground.
