Overhead Console C930

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

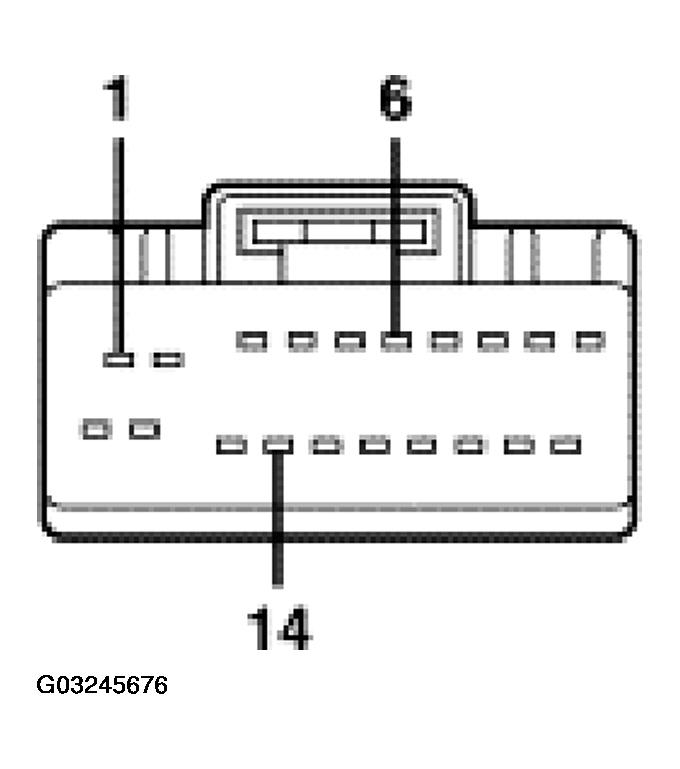

Fig 1: Identifying Overhead Console C930 Pins
G03245676Courtesy of FORD MOTOR CO.
OVERHEAD CONSOLE C930 CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1205 (BK) ground 0 volts, less than 5 ohms between the overhead console and chassis ground.
6 1417 (LG/RD) dimmable backlighting power supply 0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position.
14 1418 (LB/WH) dimmable backlighting power supply 0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position.
