Driver Side Power Window Control Switch C508a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

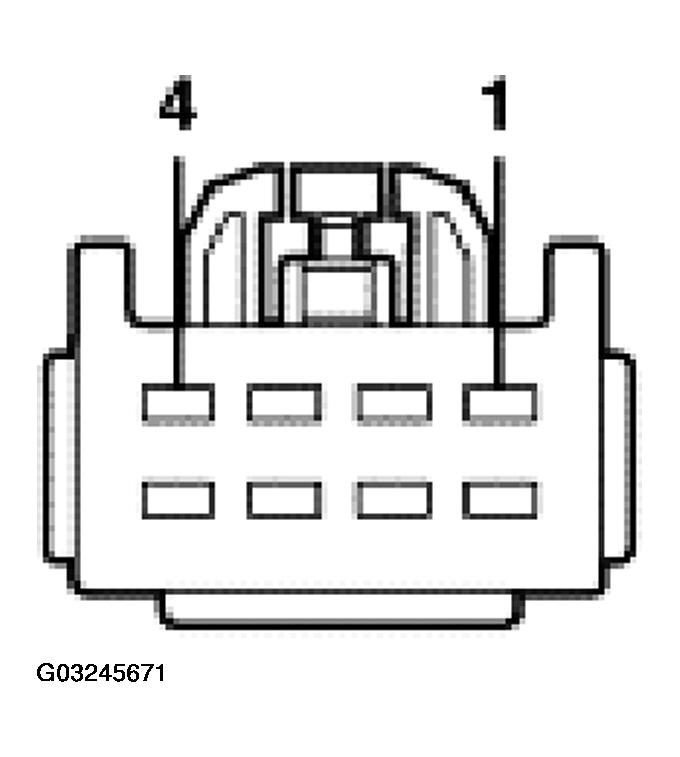

Fig 1: Identifying Driver Side Power Window Control Switch C508a Pins
G03245671Courtesy of FORD MOTOR CO.
DRIVER SIDE POWER WINDOW CONTROL SWITCH C508A CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1205 (BK) ground 0 volts, less than 5 ohms resistance between the driver side power window switch and chassis ground.
4 400 (LB/BK) fixed backlighting power supply Greater than 10 volts with the ignition switch in the ON position, 0 volts with the ignition switch in the OFF position.
