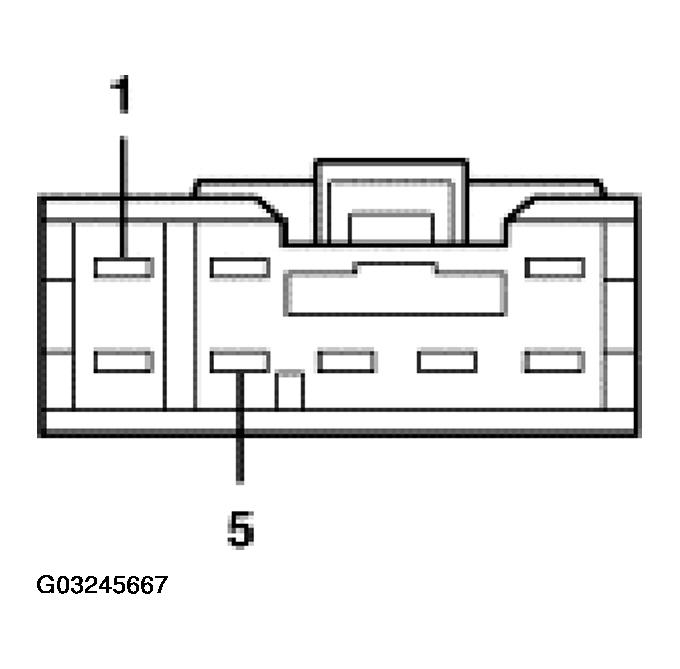

CLOCKSPRING C218B CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1205 (BK) illumination ground | 0 volts, less than 5 ohms between the headlamp switch and chassis ground |
| 5 | 1417 (LG/RD) dimmable backlighting power supply | 0 volts with the headlamp switch in OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position. |
