Clock C2016

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

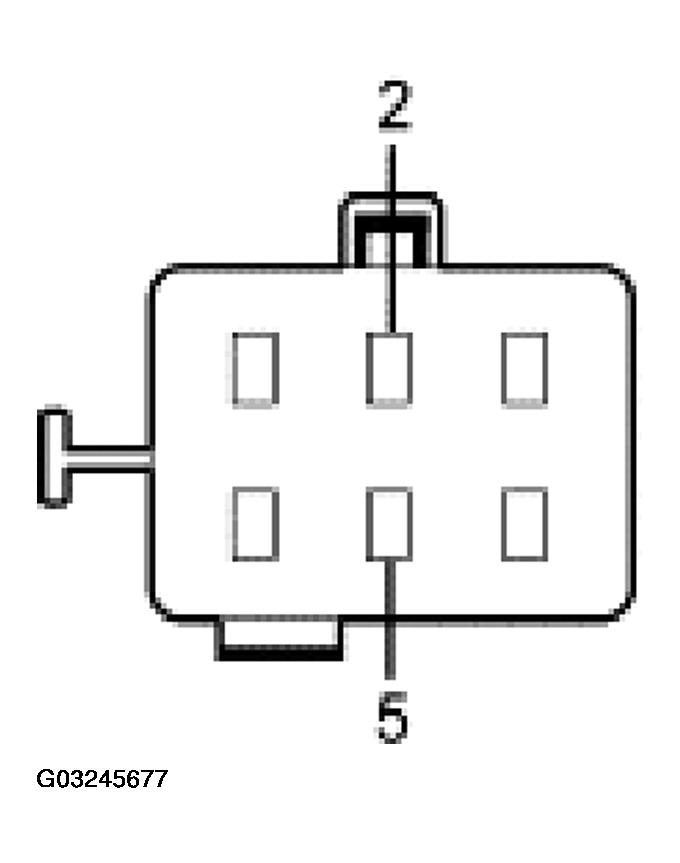

Fig 1: Identifying Clock C2016 Pins
G03245677Courtesy of FORD MOTOR CO.
CLOCK C2016 CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 1418 (LB/WH) dimmable backlighting power supply 0 volt with the headlamp switch in the OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position.
5 1205 (BK) ground 0 volts, less than 5 ohms resistance between the clock and chassis ground.
