Adjustable Pedal Switch C2089

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

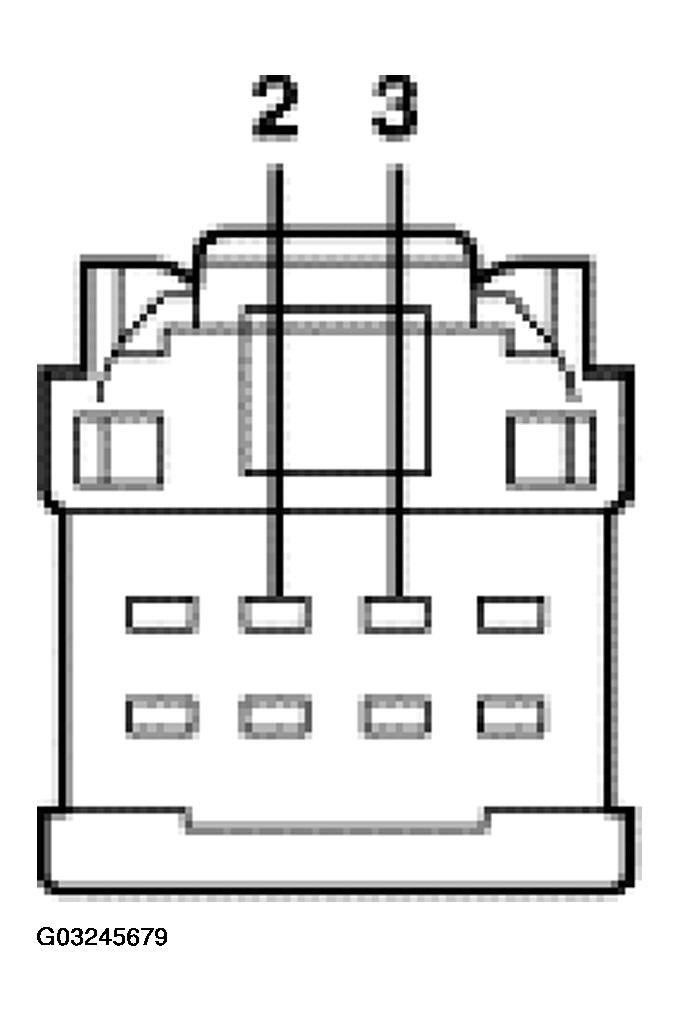

Fig 1: Identifying Adjustable Pedal Switch C2089 Pins
G03245679Courtesy of FORD MOTOR CO.
ADJUSTABLE PEDAL SWITCH C2089 CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 1205 (BK) ground 0 volts, less than 5 ohms resistance between the adjustable pedal switch and chassis ground.
3 1417 (LG/RD) dimmable backlighting power supply 0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the instrument panel dimmer switch in the full illumination position and the headlamp switch in the PARK/ON position.
