Temperature Blend Door Actuator - RH

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The RH temperature blend door actuator can be accessed from below the RH side of the instrument panel.

Remove the parts in the order indicated in the following illustration and table.

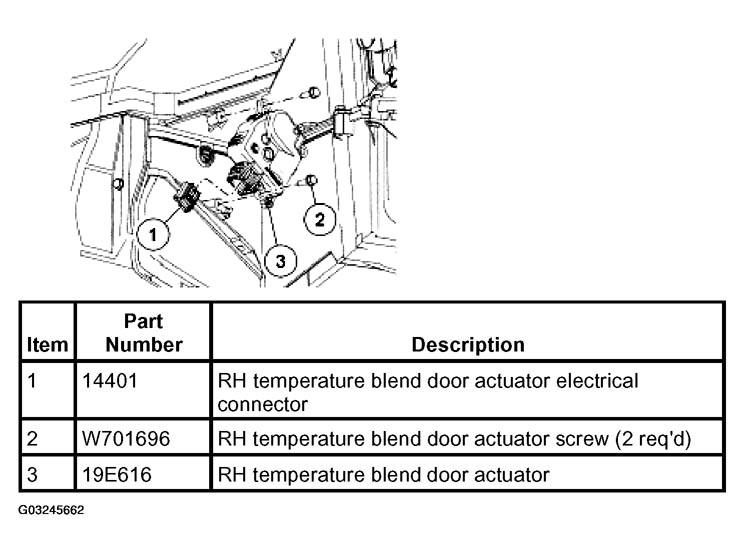

Fig 1: RH Temperature Blend Door Actuator Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
