Blower Motor Resistor - Auxiliary

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH quarter trim panel. For additional information refer to BODY SYSTEM - INTERIOR .
  2. Remove the auxiliary blower motor resistor.
    1. Disconnect the auxiliary blower motor resistor electrical connector.
    2. Remove the screws.
    3. Remove the auxiliary blower motor resistor.

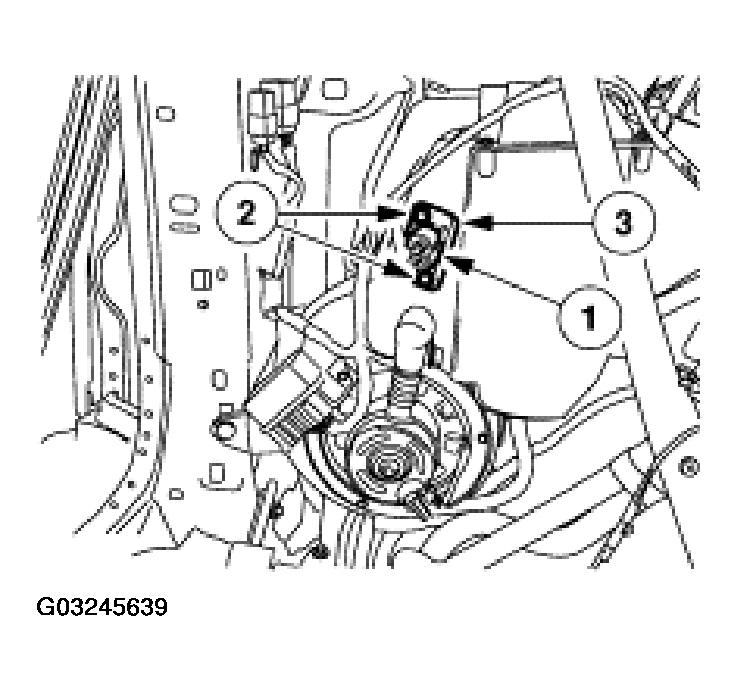

    Fig 1: Auxiliary Blower Motor Resistors Components Removal Sequence
    G03245639Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
