Blower Motor - Auxiliary

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH quarter trim panel. For additional information refer to BODY SYSTEM - INTERIOR .
  2. Detach the wire harness.
    1. Remove the screws.
    2. Disconnect the blower motor electrical connector and position the wire harness aside.

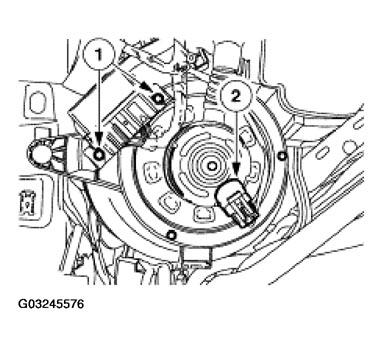

    Fig 1: Detaching Wire Harness
    G03245576Courtesy of FORD MOTOR CO.
  3. Remove the auxiliary blower motor.
    1. Detach the vent tube.
    2. Remove the screws.
    3. Remove the blower motor.

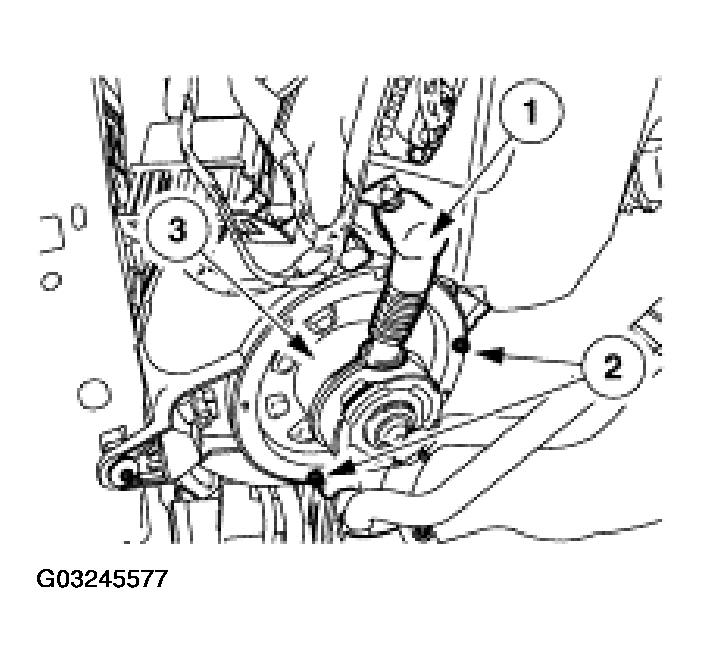

    Fig 2: Removing Auxiliary Blower Motor
    G03245577Courtesy of FORD MOTOR CO.
  4. Remove the blower motor wheel.
    1. Remove the clip.
    2. Remove the blower motor wheel.

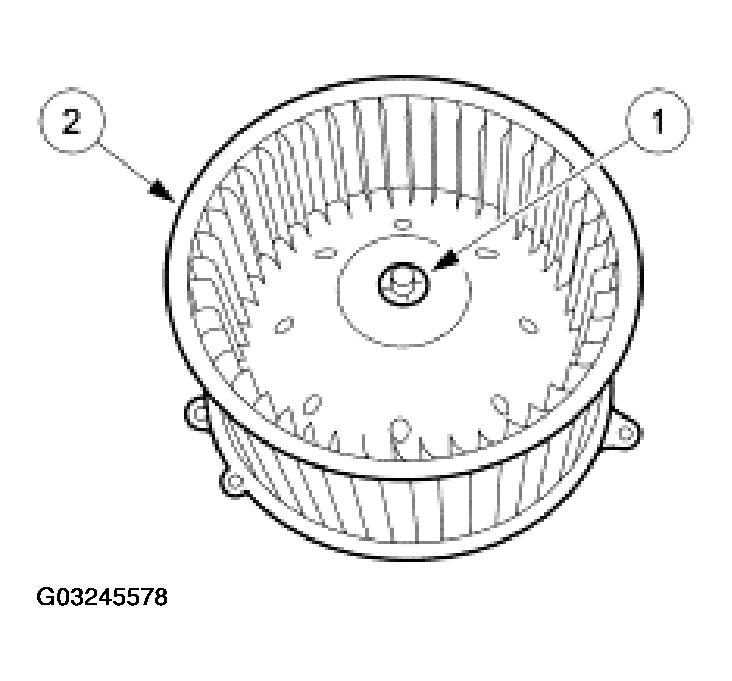

    Fig 3: Removing Blower Motor Wheel
    G03245578Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
