Item 8: A/C Clutch Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C clutch bolt.
    1. Using the special tool, hold the clutch plate.
    2. Remove the bolt.

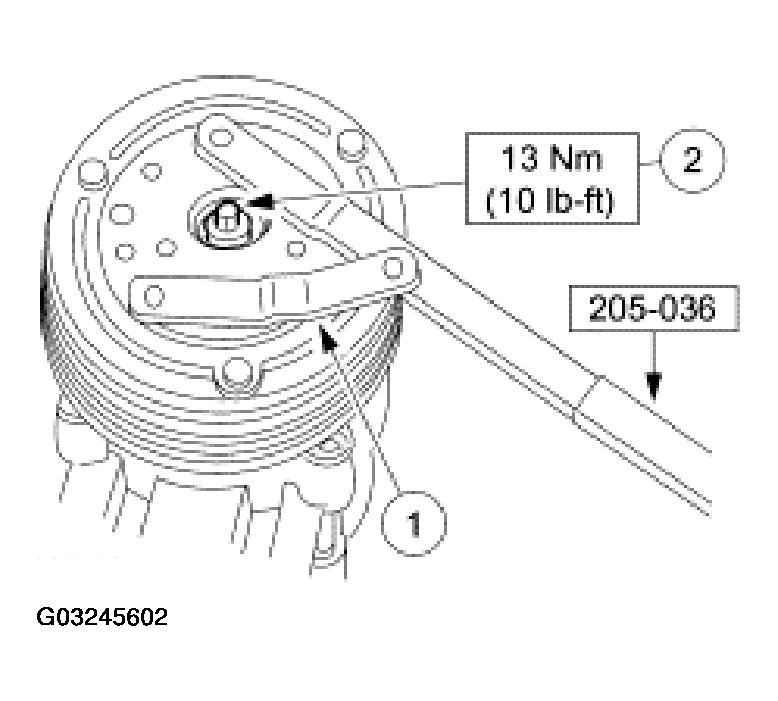

Fig 1: Removing A/C Clutch Bolt
G03245602Courtesy of FORD MOTOR CO.
