Item 13: A/C Clutch Field Coil Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

Remove the A/C clutch field coil.
1. Install the special tool.
2. Install the special tool.
3. Remove the A/C clutch field coil.

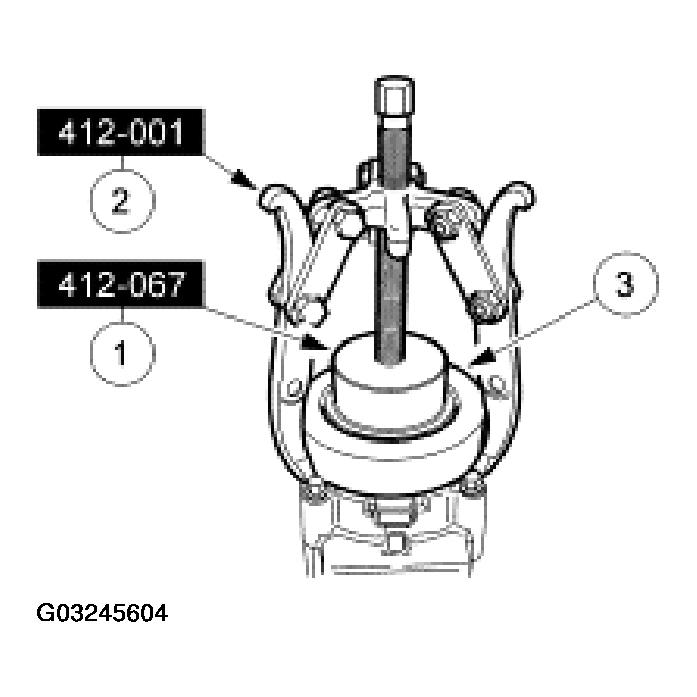

Fig 1: Removing A/C Clutch Field Coil

Courtesy of FORD MOTOR CO.
