Item 13: A/C Clutch Field Coil Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.
  1. Install the A/C clutch field coil.
    1. Place the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector correctly positioned.
    2. Place the special tool on the A/C clutch field coil.
    3. Place the special tool 412-065 on the special tool 412-078.
    4. Use the special tool to install the A/C clutch field coil.

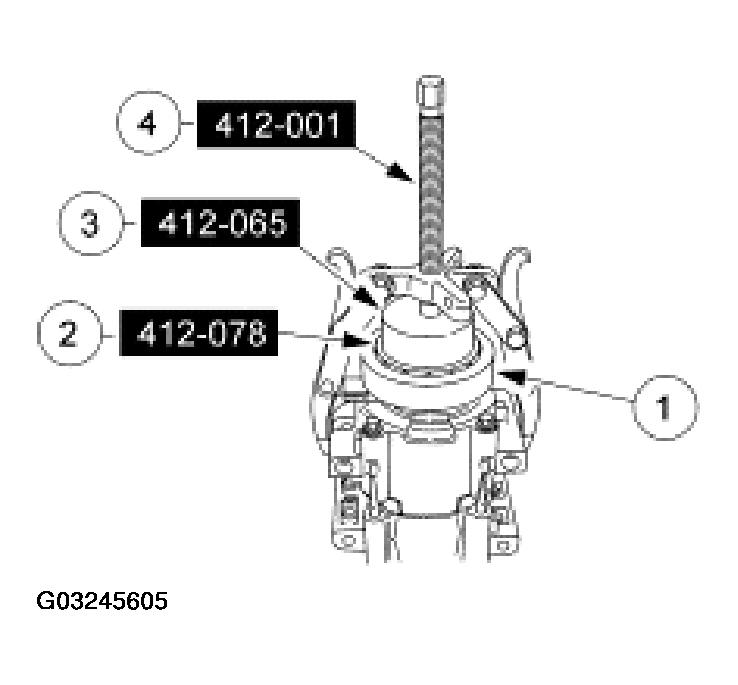

Fig 1: Installing A/C Clutch Field Coil
G03245605Courtesy of FORD MOTOR CO.
