Item 12: A/C Clutch Pulley Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C clutch pulley.
    1. Install the special tool.
    2. Remove the A/C clutch pulley.

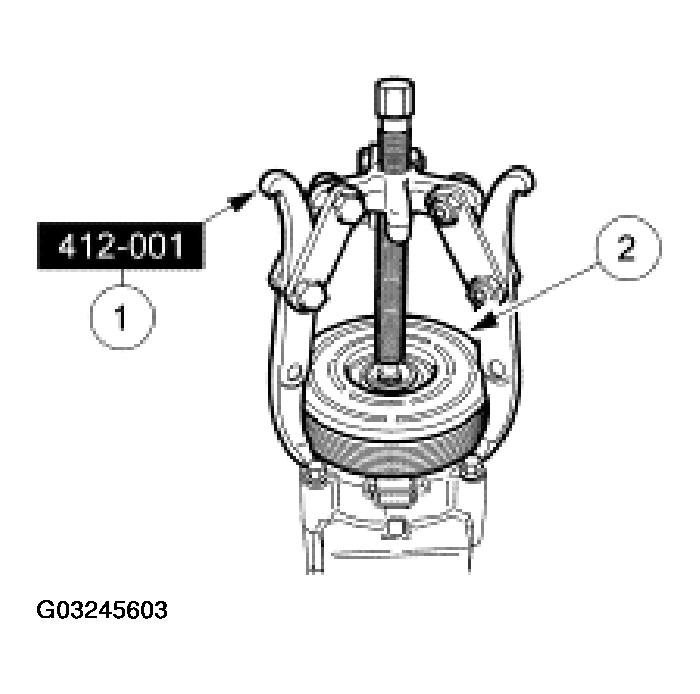

Fig 1: Removing A/C Clutch Pulley
G03245603Courtesy of FORD MOTOR CO.
