Air Conditioning (A/C) Compressor Shaft Seal: Installation

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent refrigerant system contamination, do not allow dirt or other foreign materials to enter the A/C compressor.

Clean the A/C compressor nose area.
Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with mineral oil or equivalent.

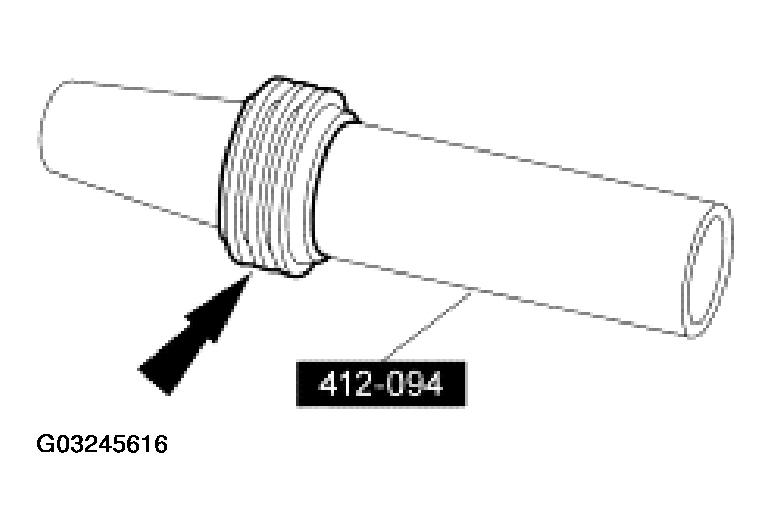

Fig 1: Identifying Shaft Seal
Courtesy of FORD MOTOR CO.
Position the shaft seal and the special tool over the A/C compressor shaft.

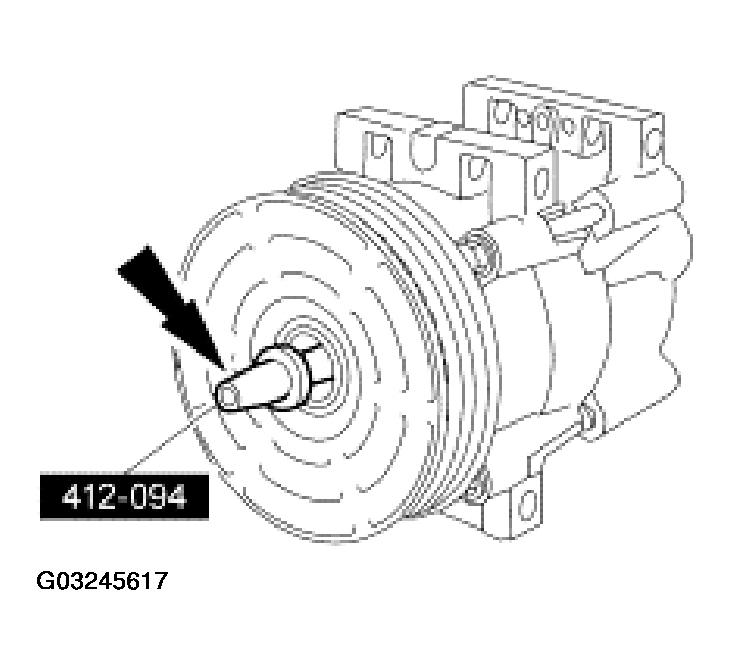

Fig 2: Positioning Shaft Seal
Courtesy of FORD MOTOR CO.
Push the shaft seal onto the A/C compressor shaft with the special tool until seated.

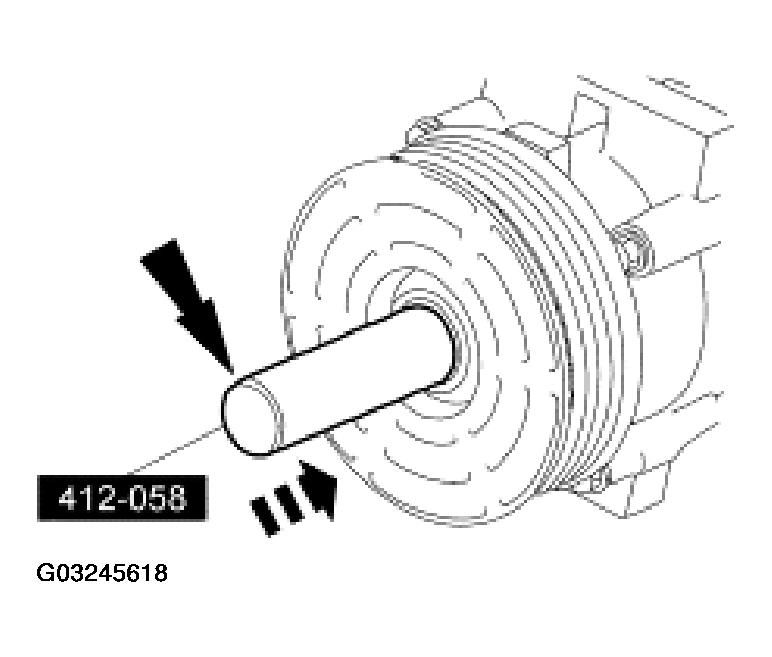

Fig 3: Pushing Shaft Seal Onto A/C Compressor Shaft
Courtesy of FORD MOTOR CO.
Install the shaft seal snap ring.

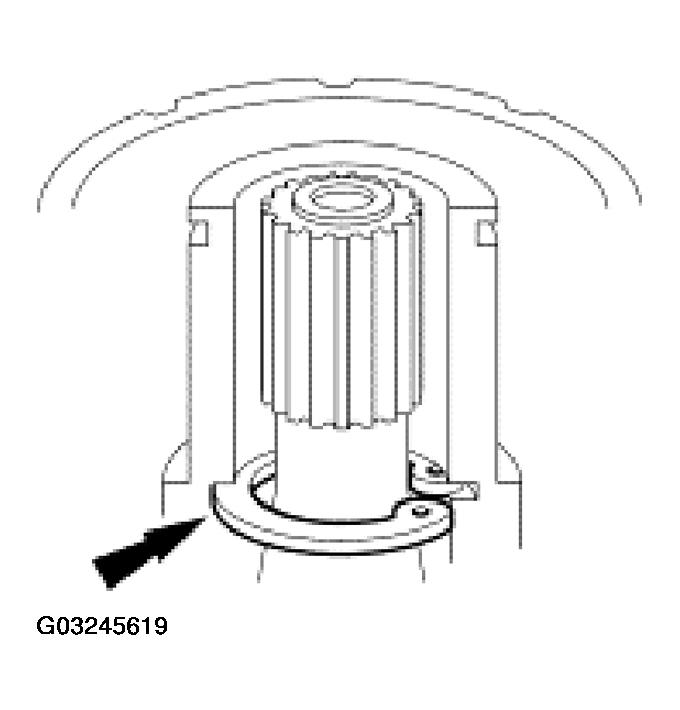

Fig 4: Installing Shaft Seal Snap Ring
Courtesy of FORD MOTOR CO.
Carry out the A/C Compressor-External Leak Test. For additional information refer to A/C COMPRESSOR - EXTERNAL LEAK TEST .
Install the shaft seal felt.

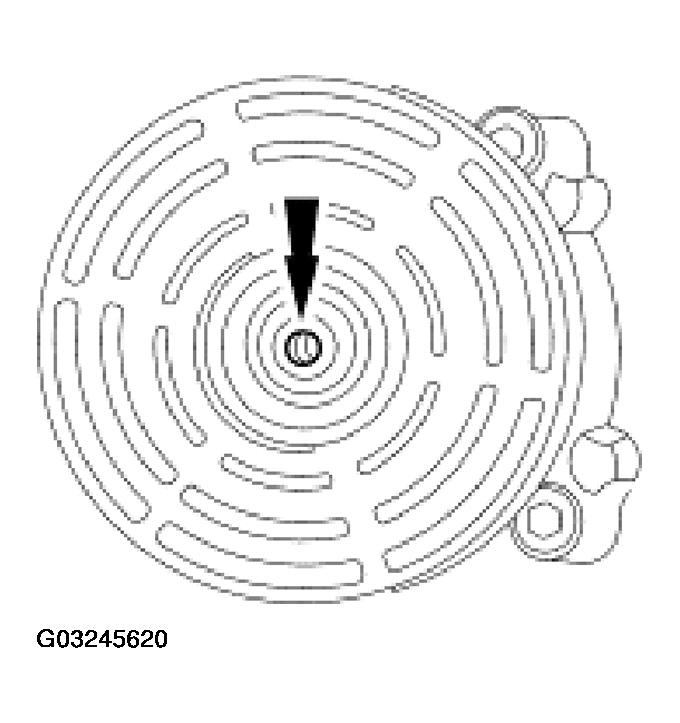

Fig 5: Installing Shaft Seal Felt
Courtesy of FORD MOTOR CO.
Install the A/C clutch disc and hub spacer, and the A/C clutch disc and hub.

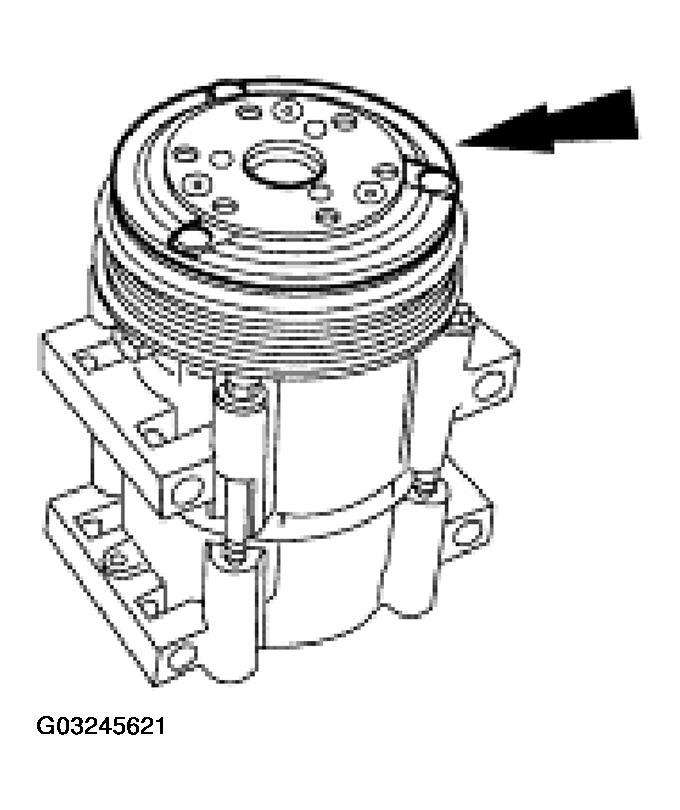

Fig 6: Installing A/C Clutch Disc
Courtesy of FORD MOTOR CO.
Install the bolt.
1. Hold the A/C clutch disc and hub with the special tool.
2. Tighten the bolt.

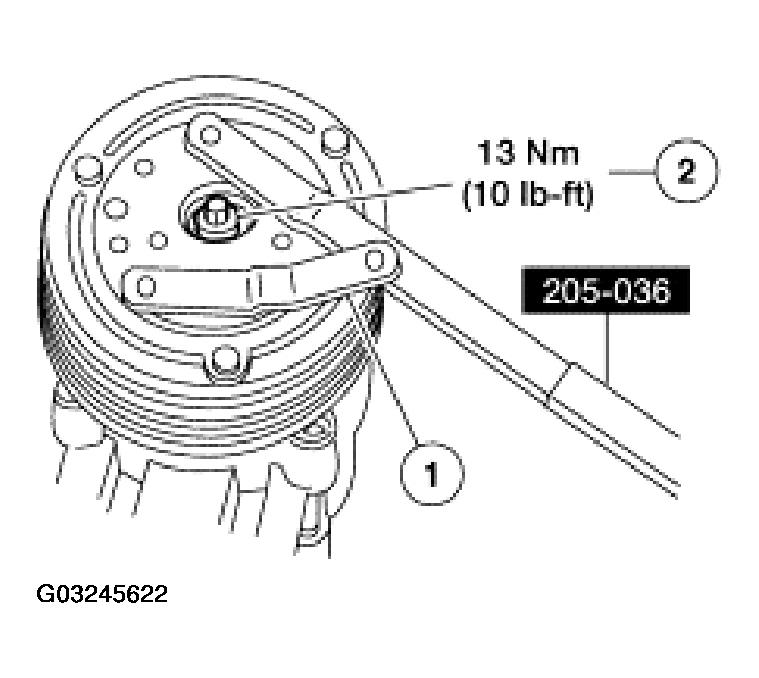

Fig 7: Holding A/C Clutch Disc And Hub With Special Tool
Courtesy of FORD MOTOR CO.
Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers.

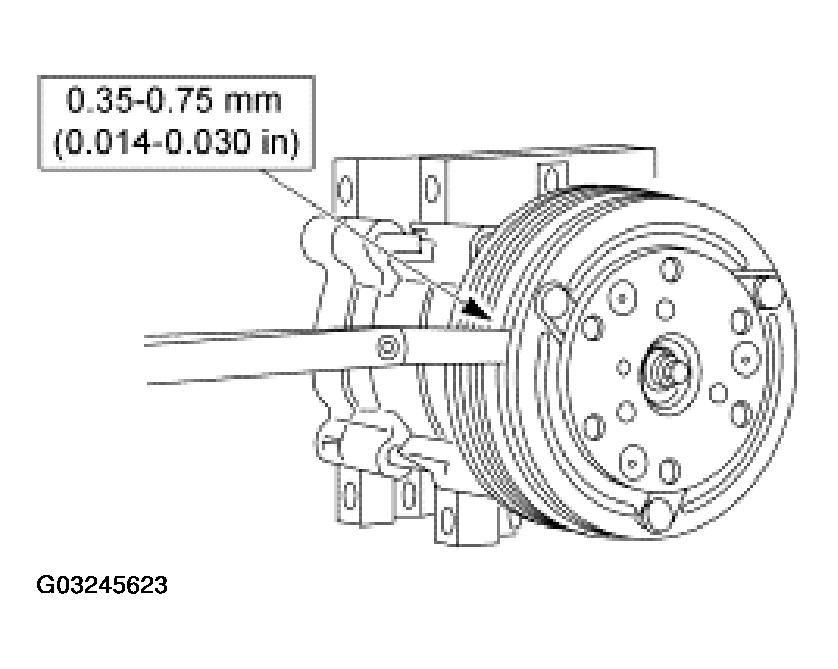

Fig 8: Adjusting Clutch Air Gap By Removing Or Adding A/C Clutch Hub Spacers
Courtesy of FORD MOTOR CO.
Install the A/C compressor. For additional information refer to AIR CONDITIONING (A/C) COMPRESSOR .
