Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

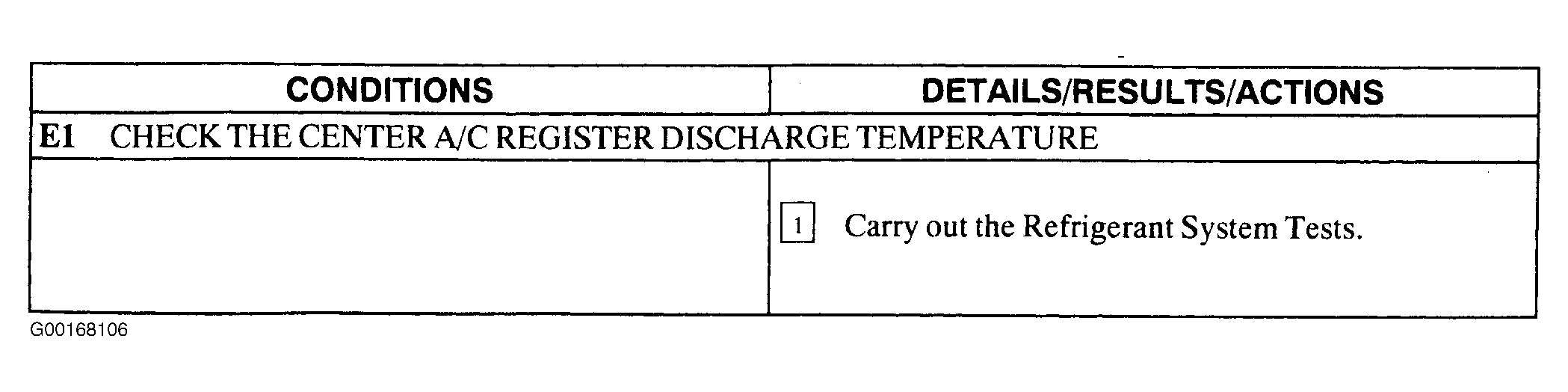

Fig 1: Test E (1 Of 6 - Step E1)

Courtesy of FORD MOTOR CO.

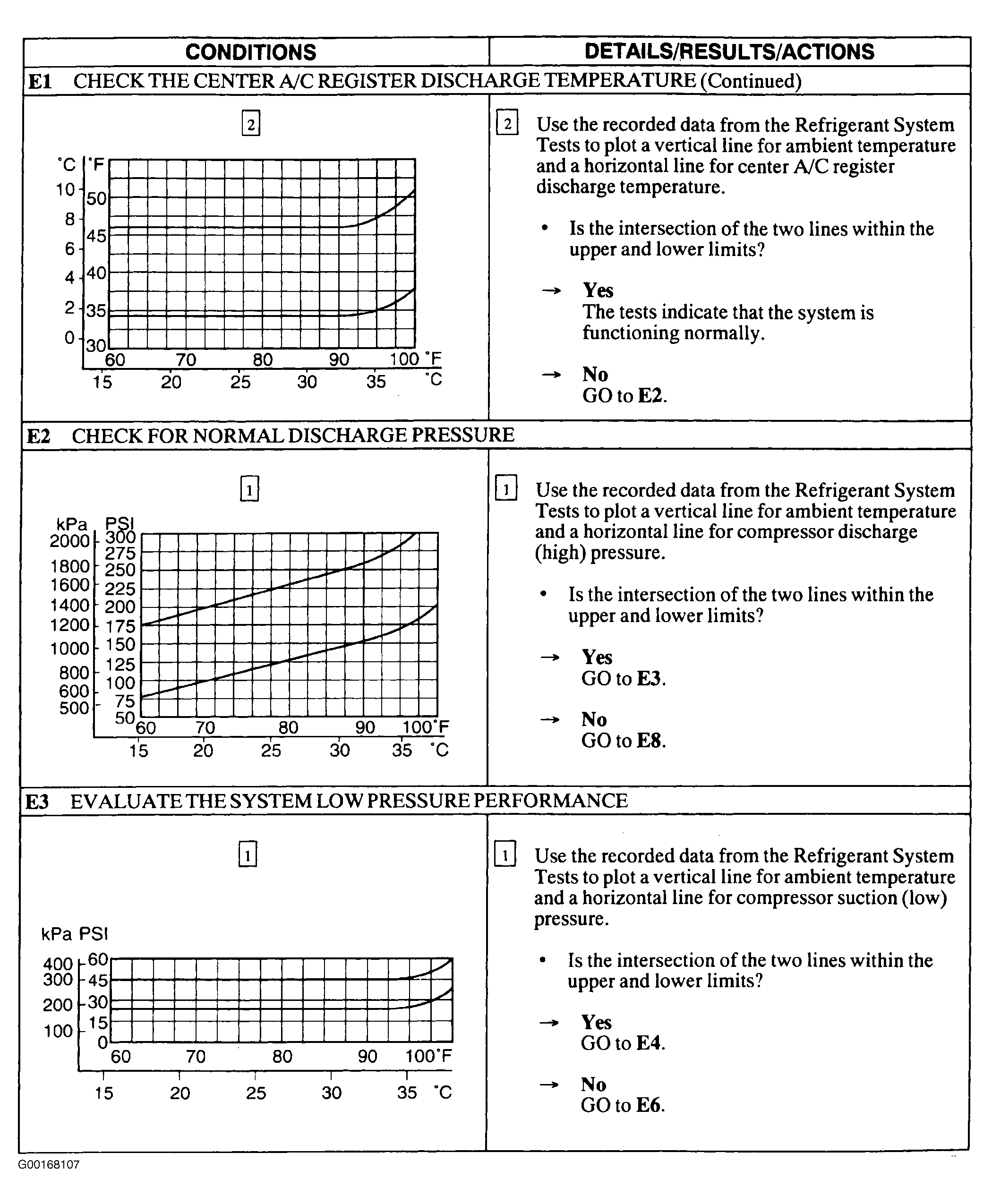

Fig 2: Test E (2 Of 6 - Steps E1 Cont.-E3)

Courtesy of FORD MOTOR CO.

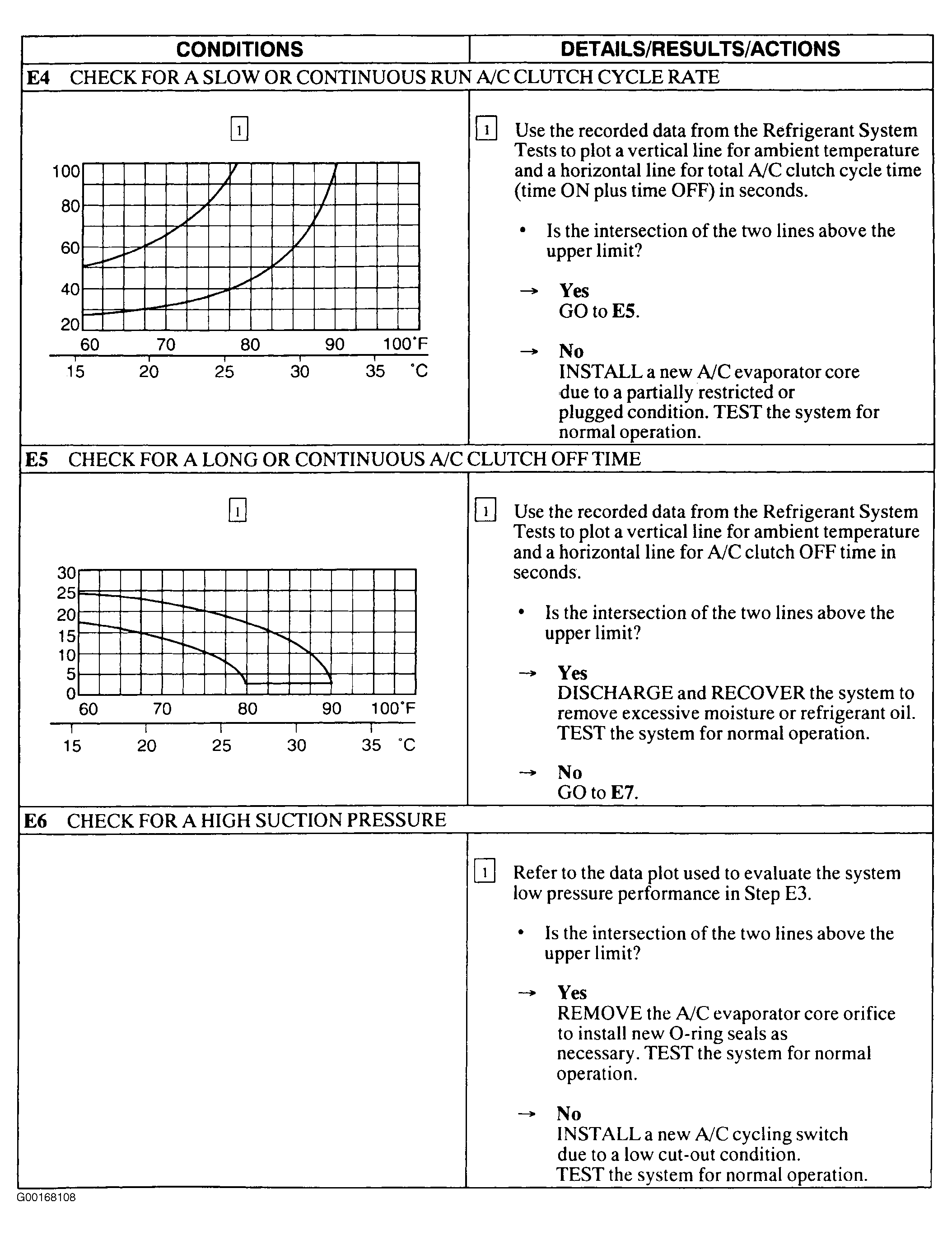

Fig 3: Test E (3 Of 6 - Steps E4-E5)

Courtesy of FORD MOTOR CO.

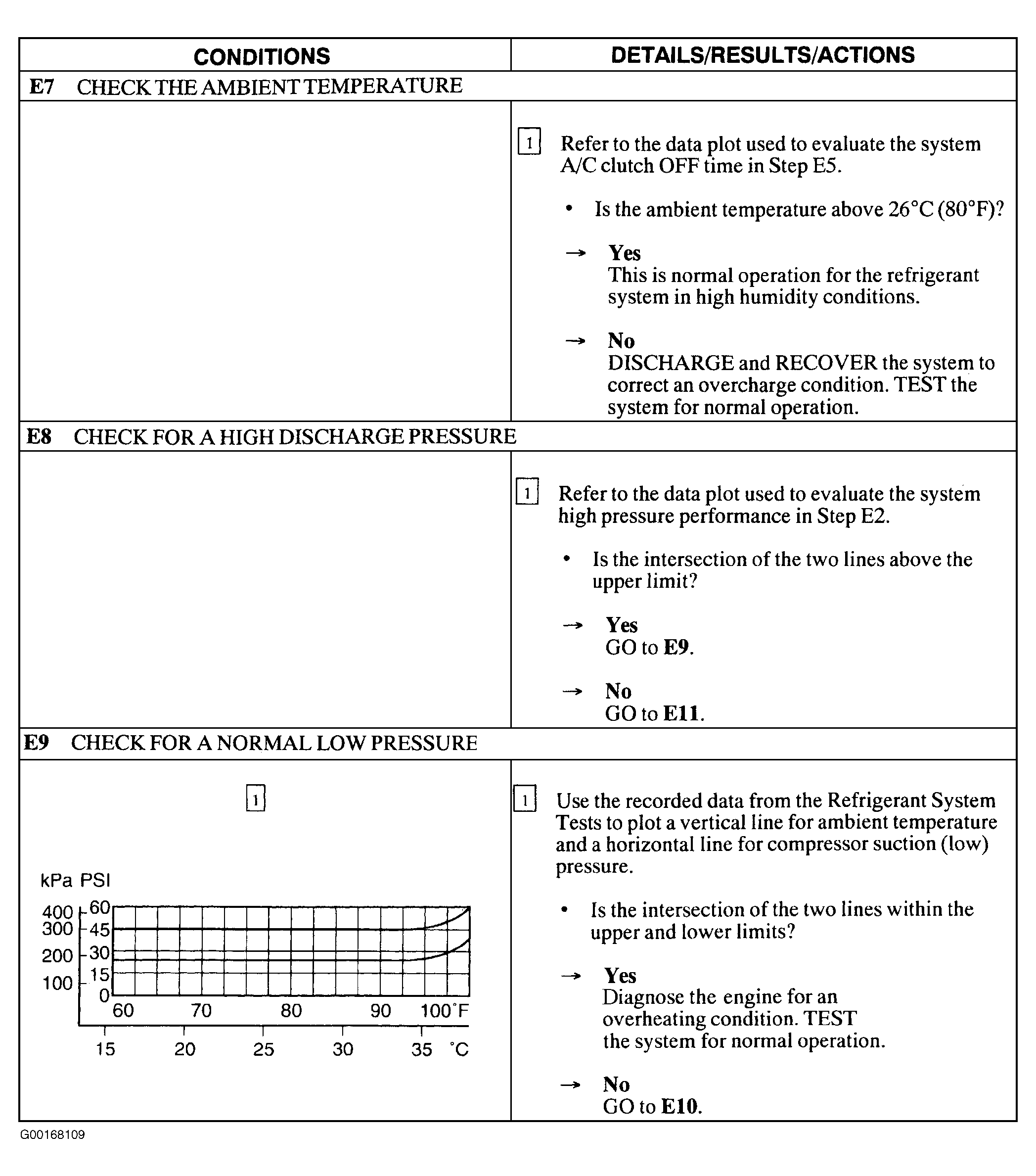

Fig 4: Test E (4 Of 6 - Steps E7-E9)

Courtesy of FORD MOTOR CO.

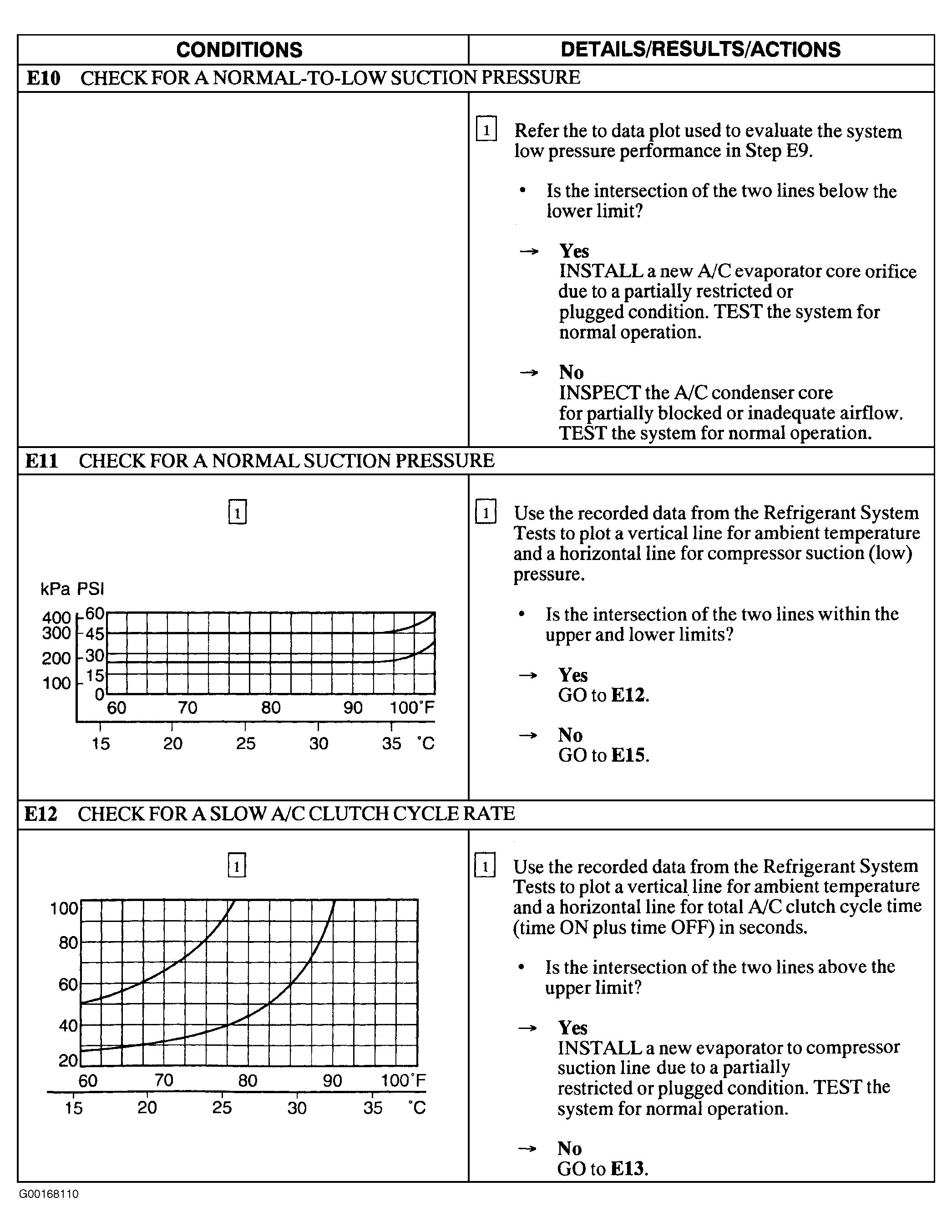

Fig 5: Test E (5 Of 6 - Steps E10-12)

Courtesy of FORD MOTOR CO.

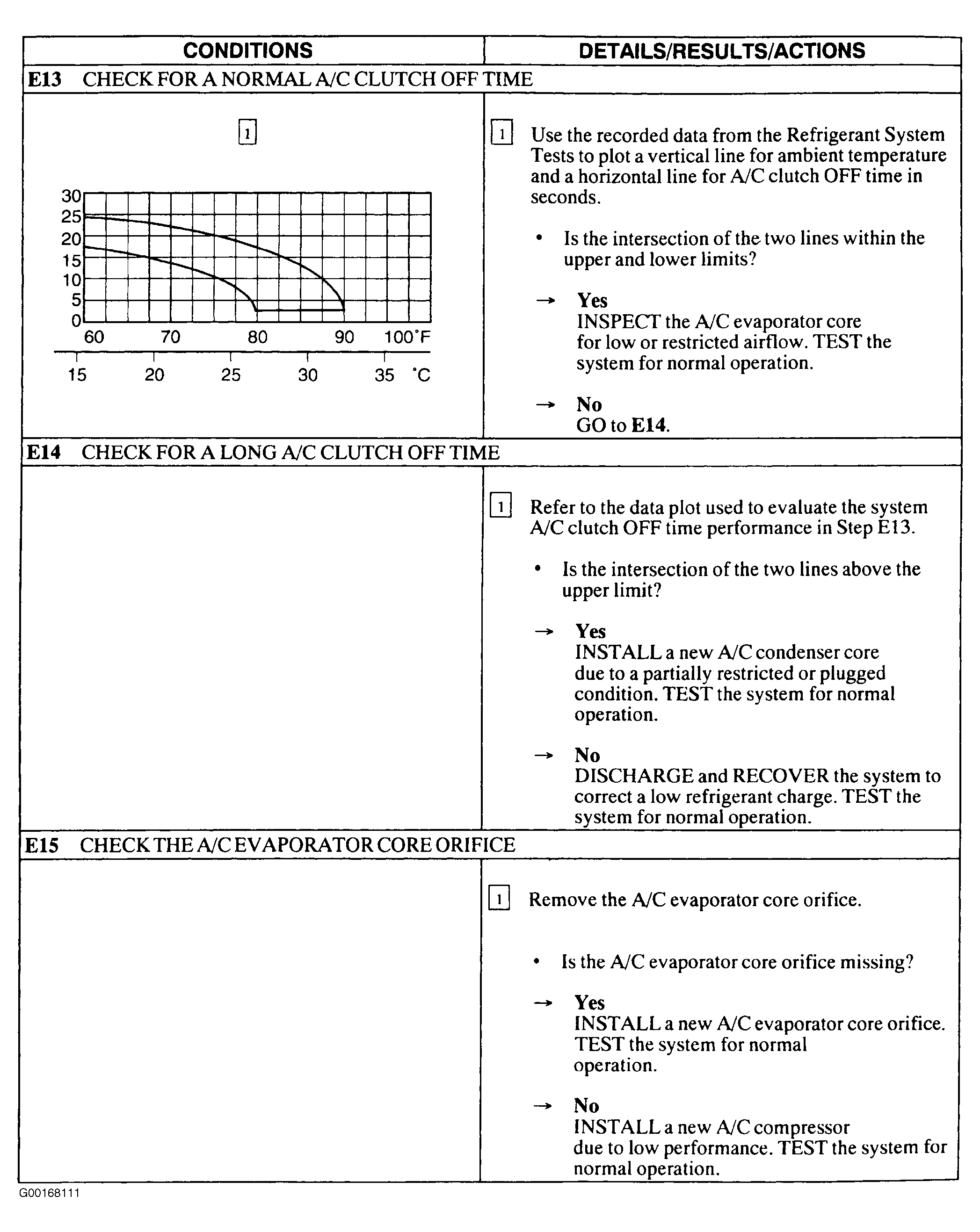

Fig 6: Test E (6 Of 6 - Steps E13-15)

Courtesy of FORD MOTOR CO.
