Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 4 .

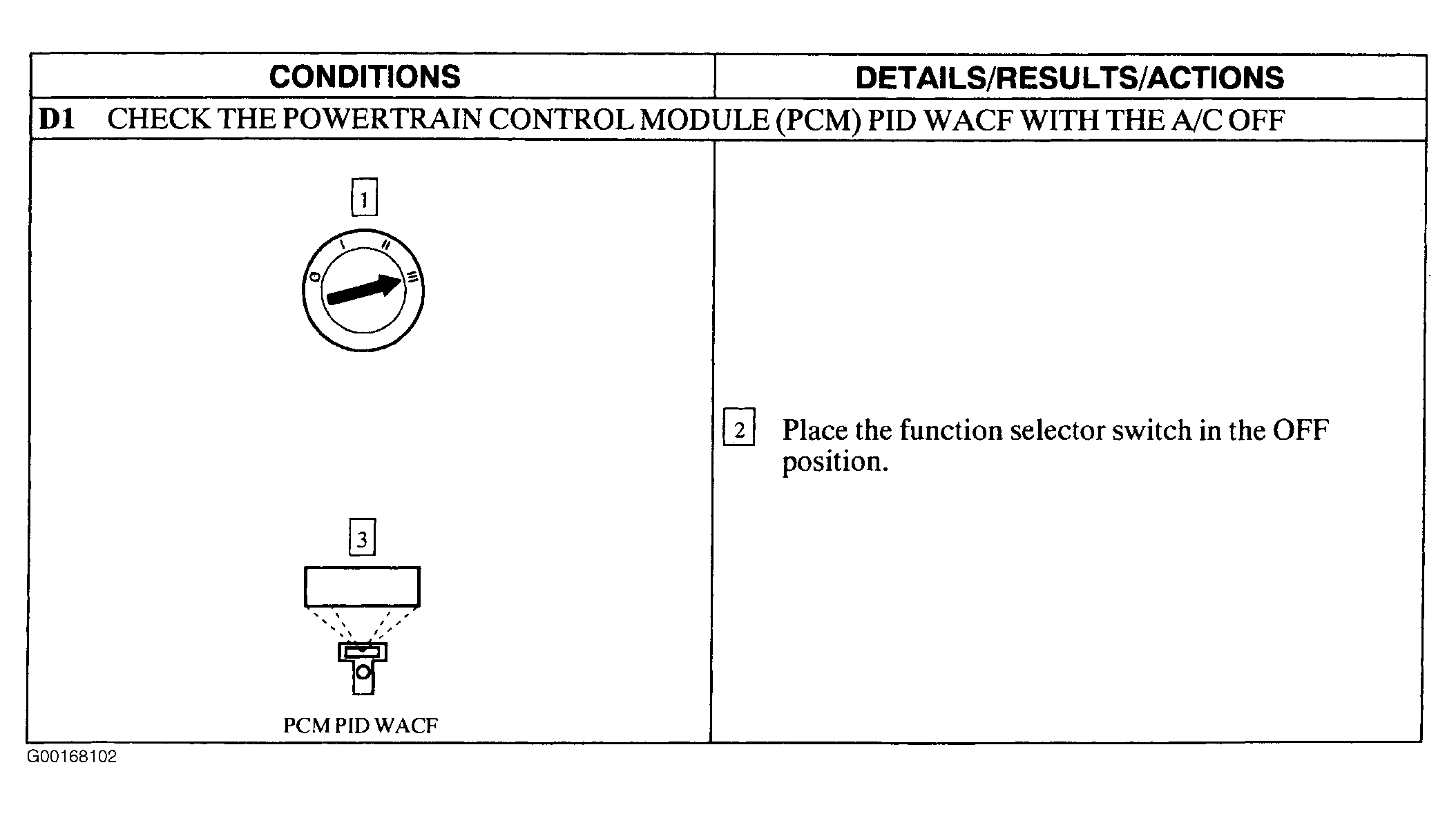

Fig 1: Test D (1 Of 4 - D1)

Courtesy of FORD MOTOR CO.

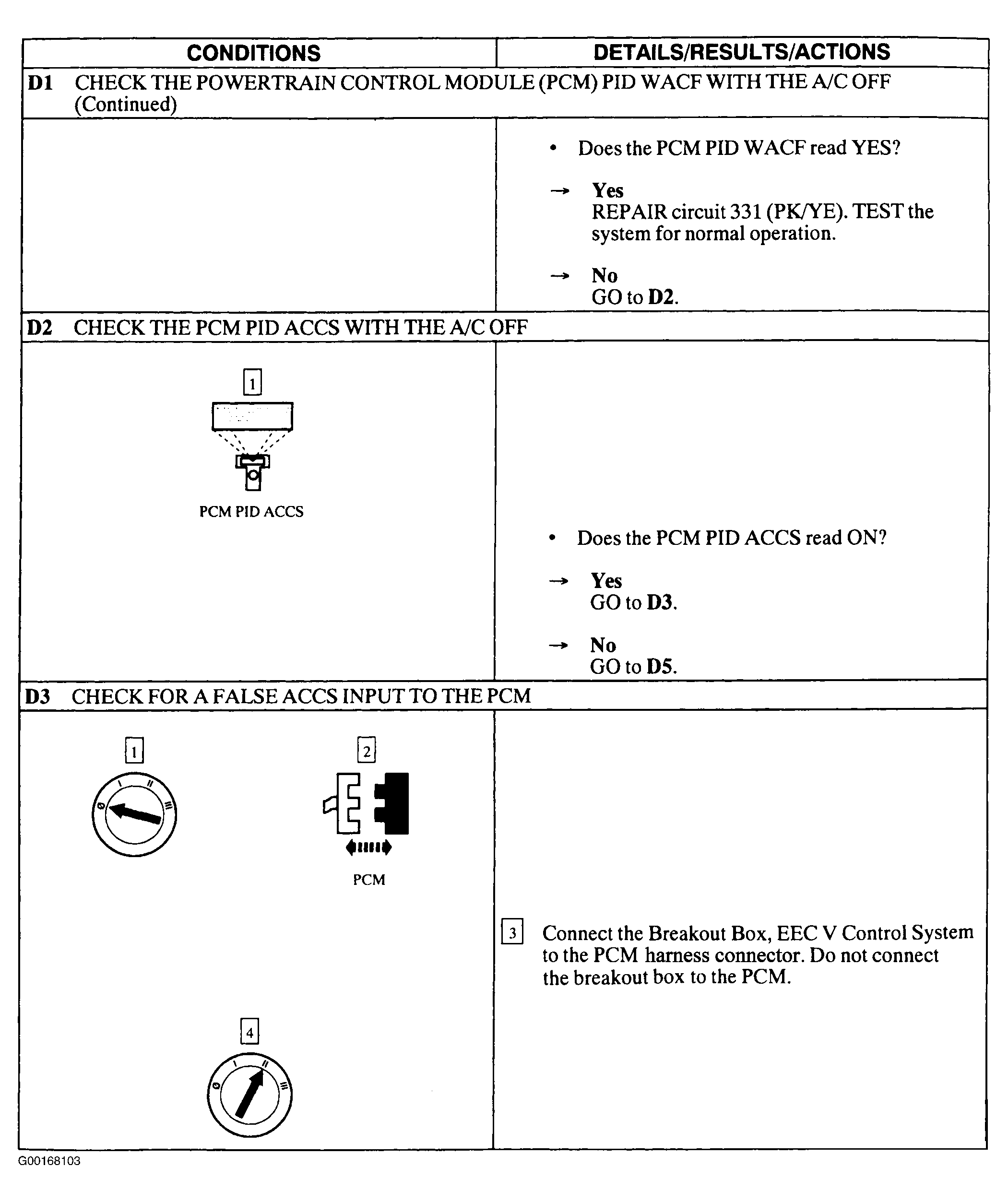

Fig 2: Test D (2 Of 4 - Steps D1 Cont.-D3)

Courtesy of FORD MOTOR CO.

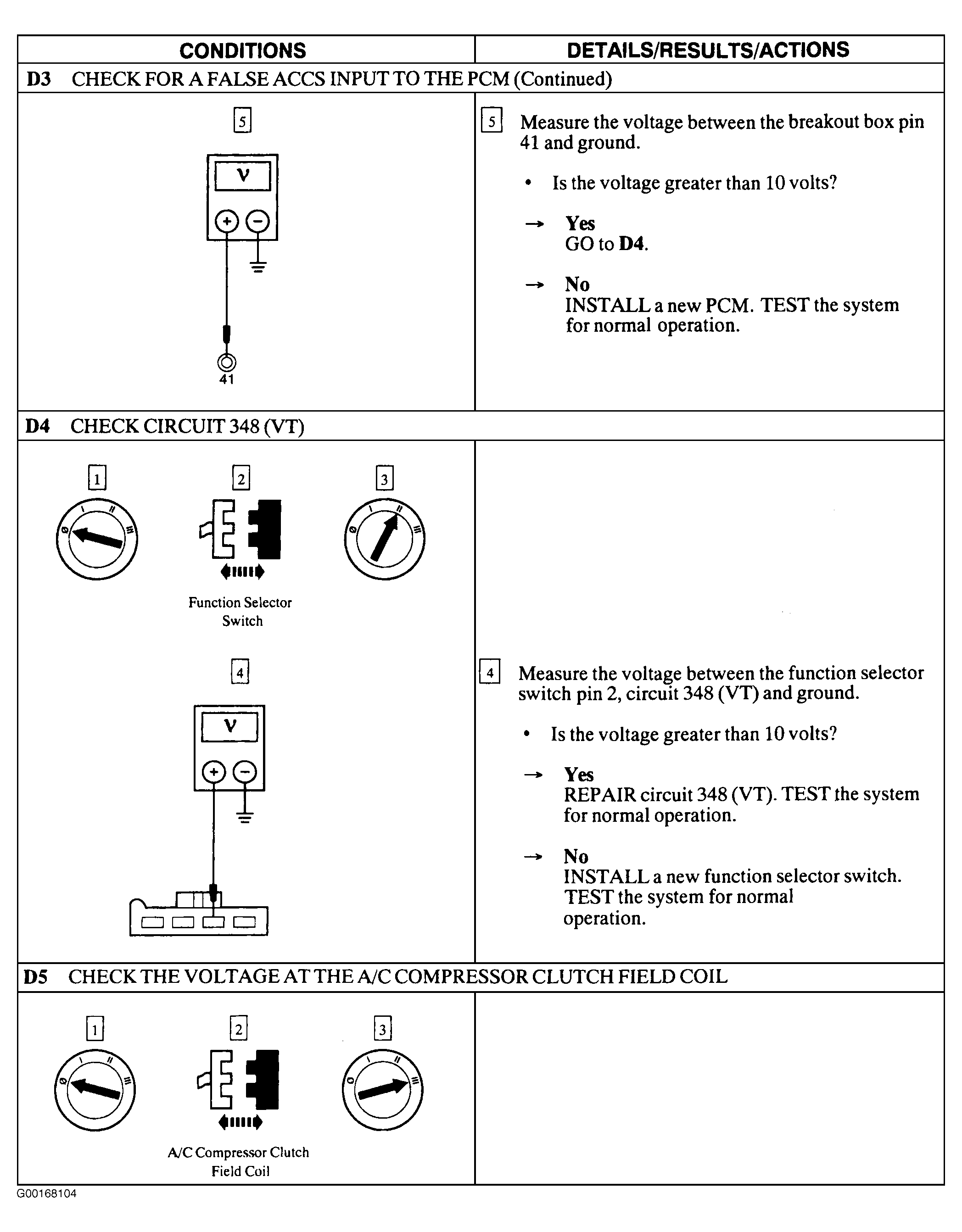

Fig 3: Test D (3 Of 4 - Steps D3 Cont.-D5)

Courtesy of FORD MOTOR CO.

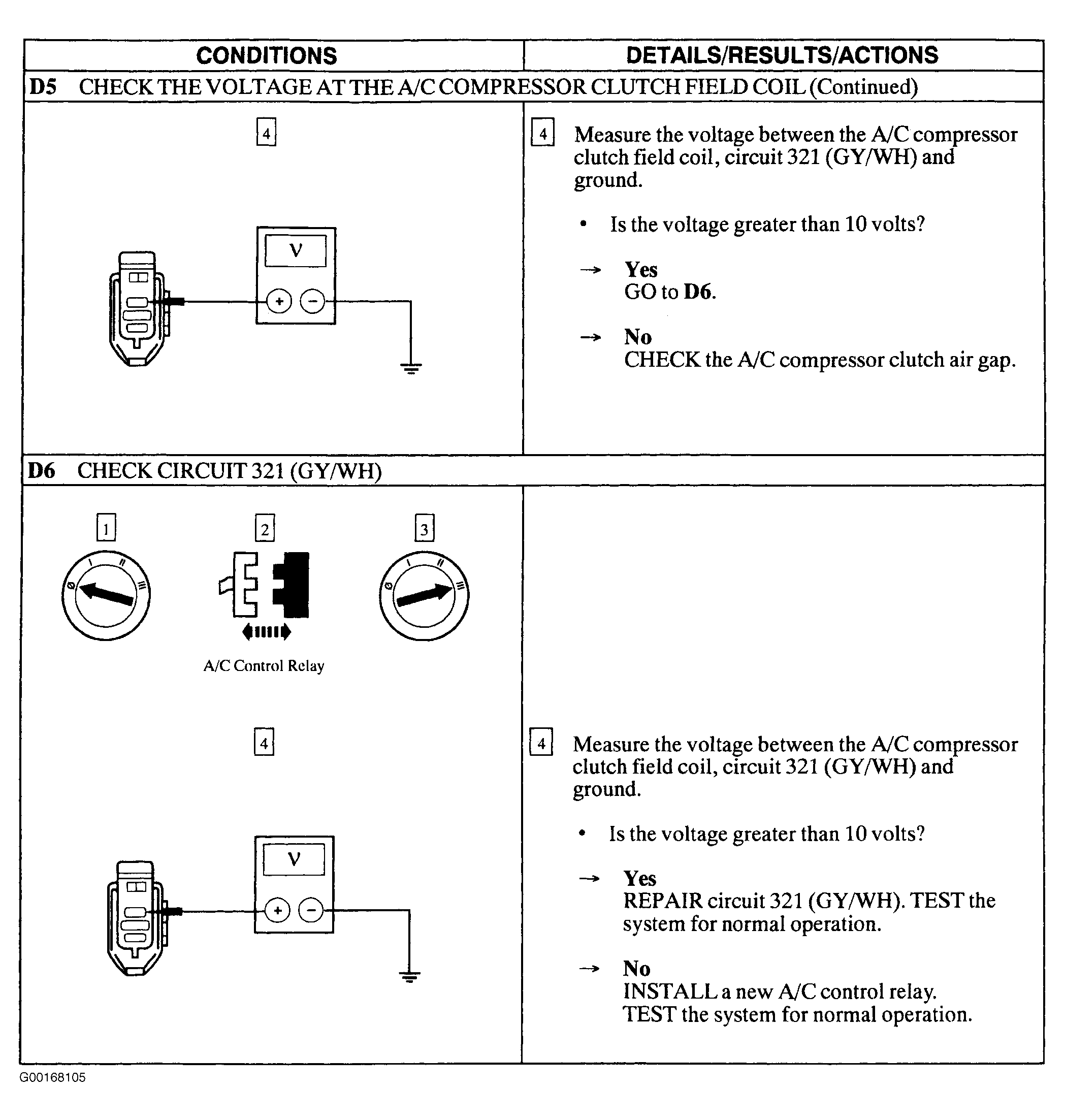

Fig 4: Test D (4 Of 4 - D5 Cont.-D6)

Courtesy of FORD MOTOR CO.
