Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 11 .

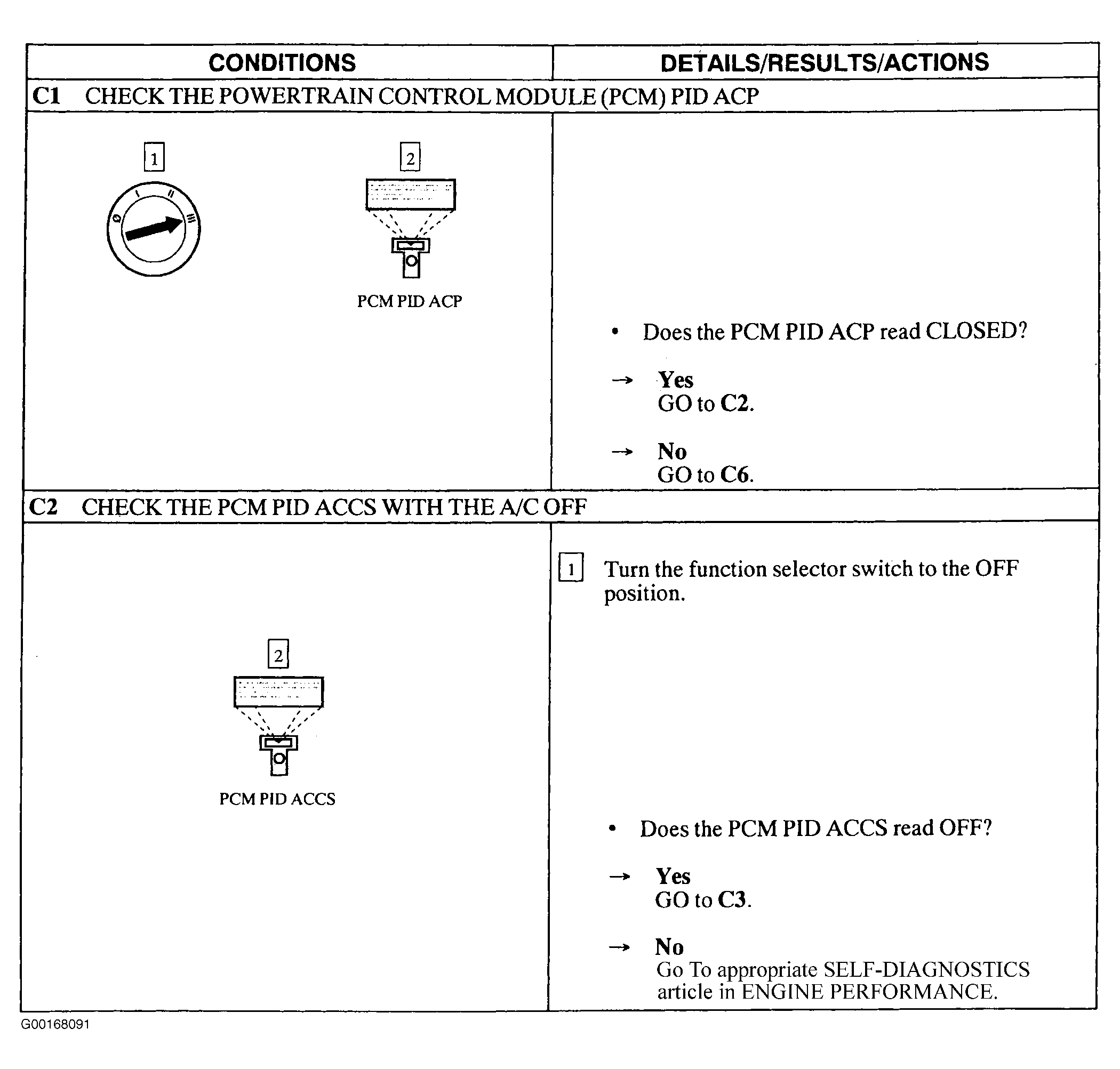

Fig 1: Test C (1 Of 11 - Steps C1-C2)

Courtesy of FORD MOTOR CO.

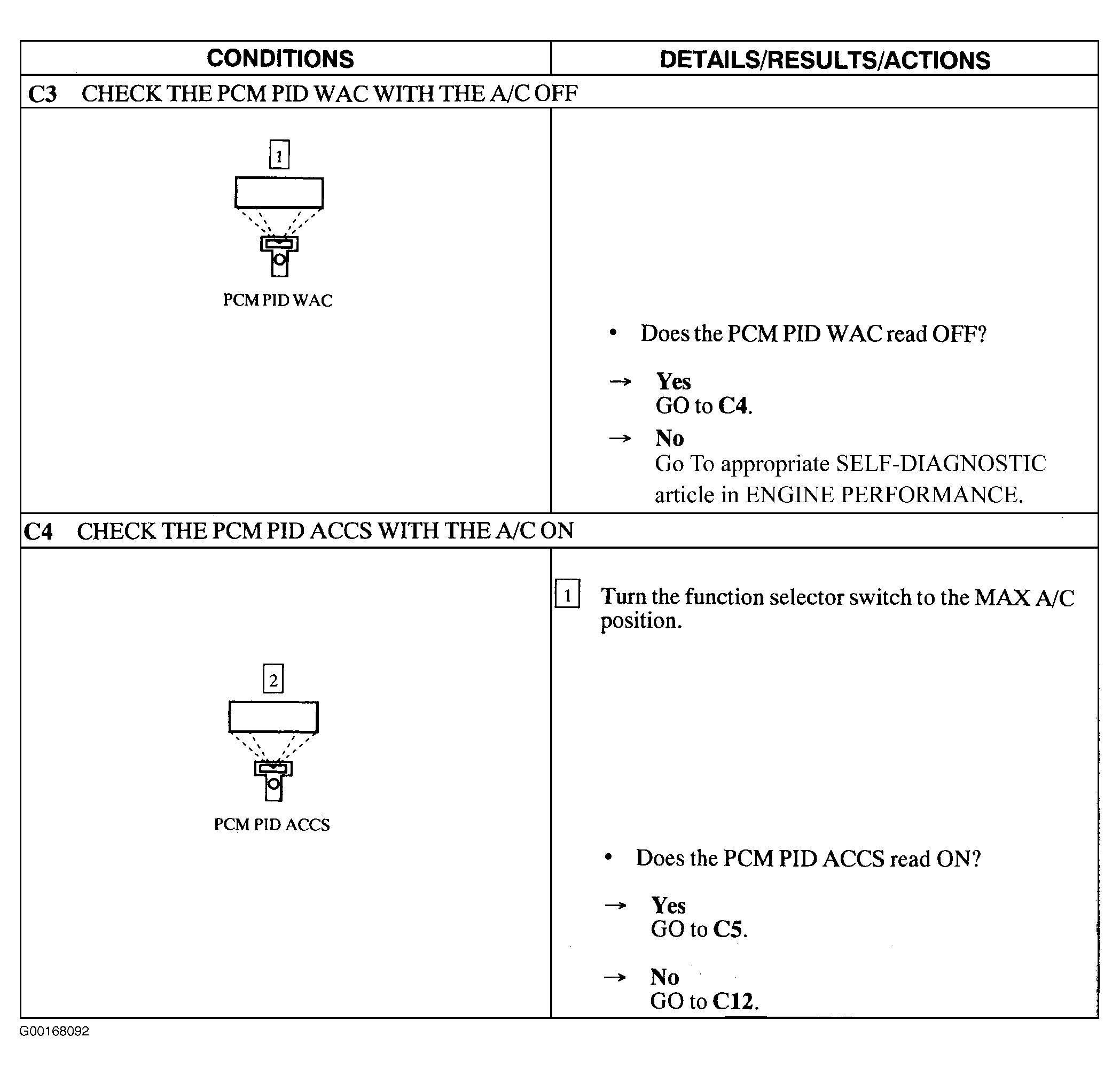

Fig 2: Test C (2 Of 11 - Steps C3-C4)

Courtesy of FORD MOTOR CO.

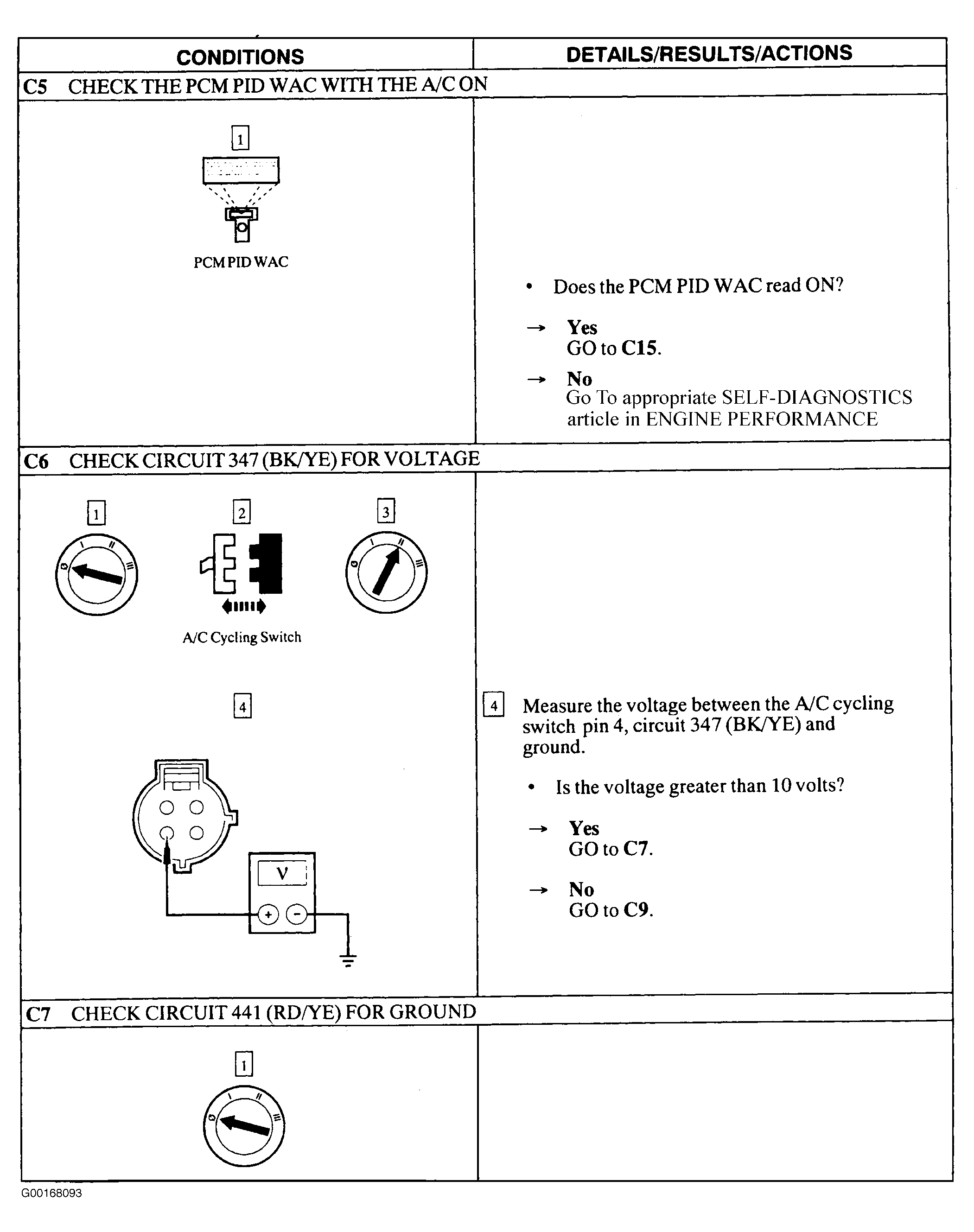

Fig 3: Test C (3 Of 11 - Steps C5-C6)

Courtesy of FORD MOTOR CO.

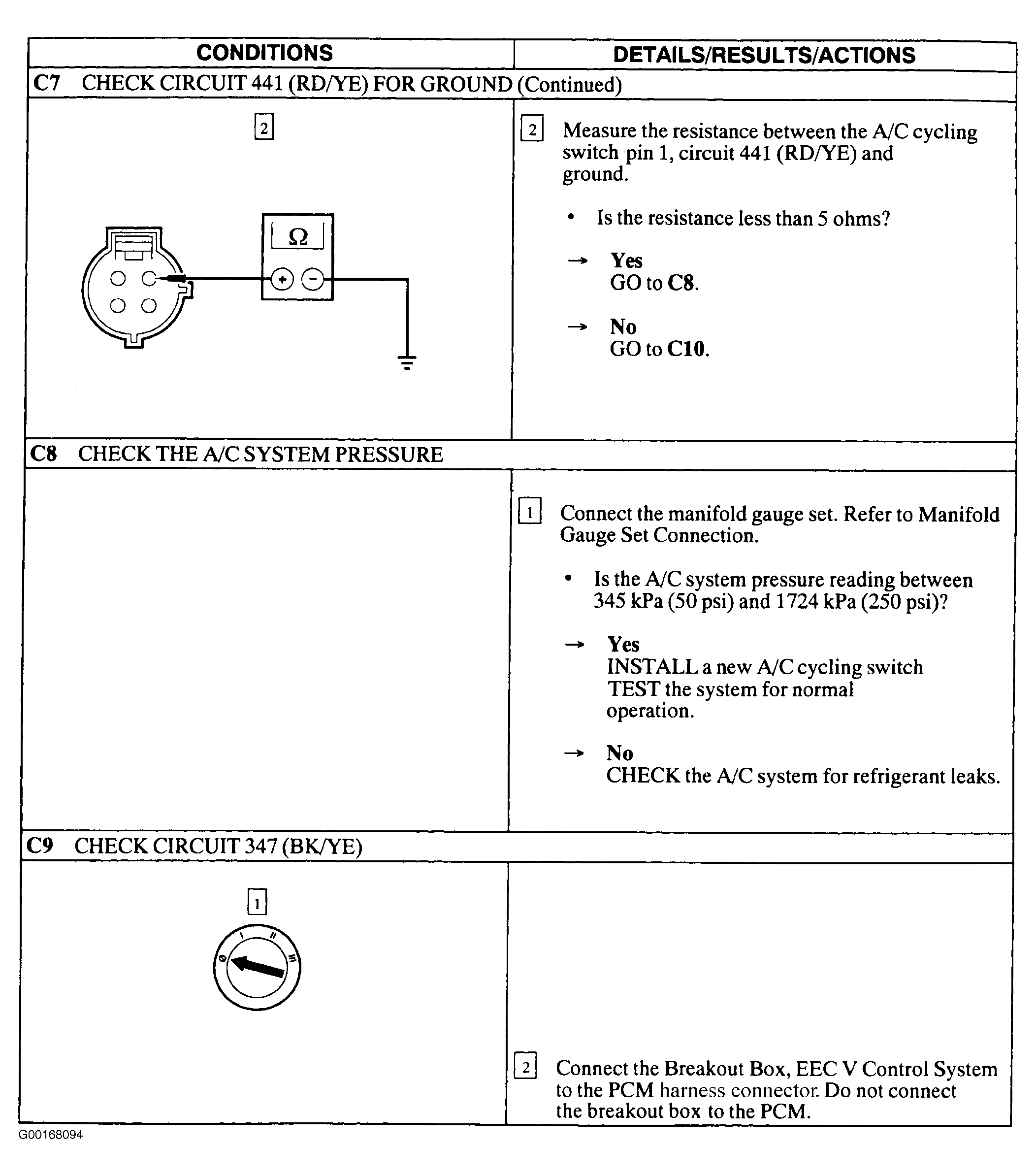

Fig 4: Test C (4 Of 11 - Steps C7-C9)

Courtesy of FORD MOTOR CO.

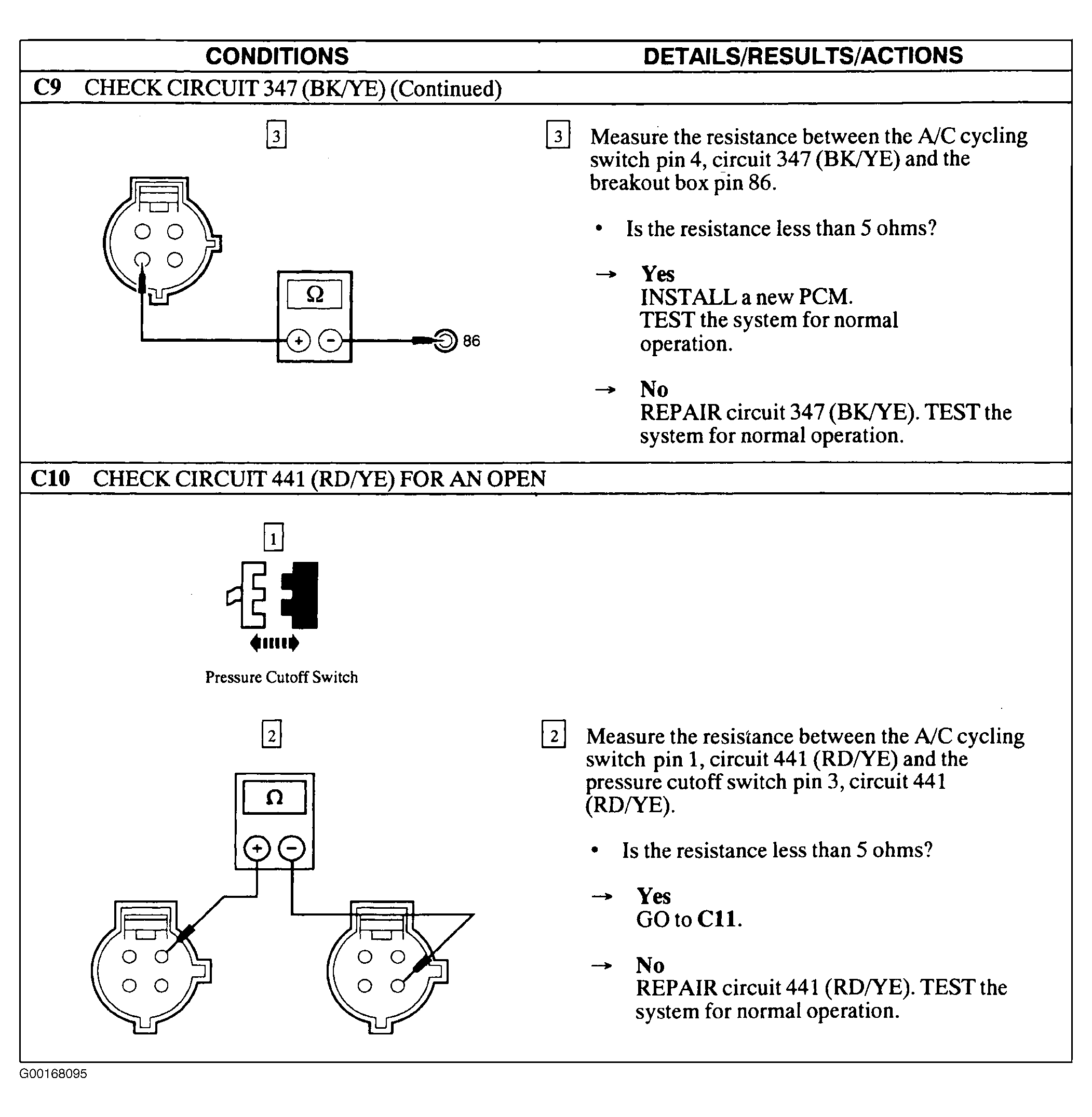

Fig 5: Test C (5 Of 11 - Steps C9 Cont.-C10)

Courtesy of FORD MOTOR CO.

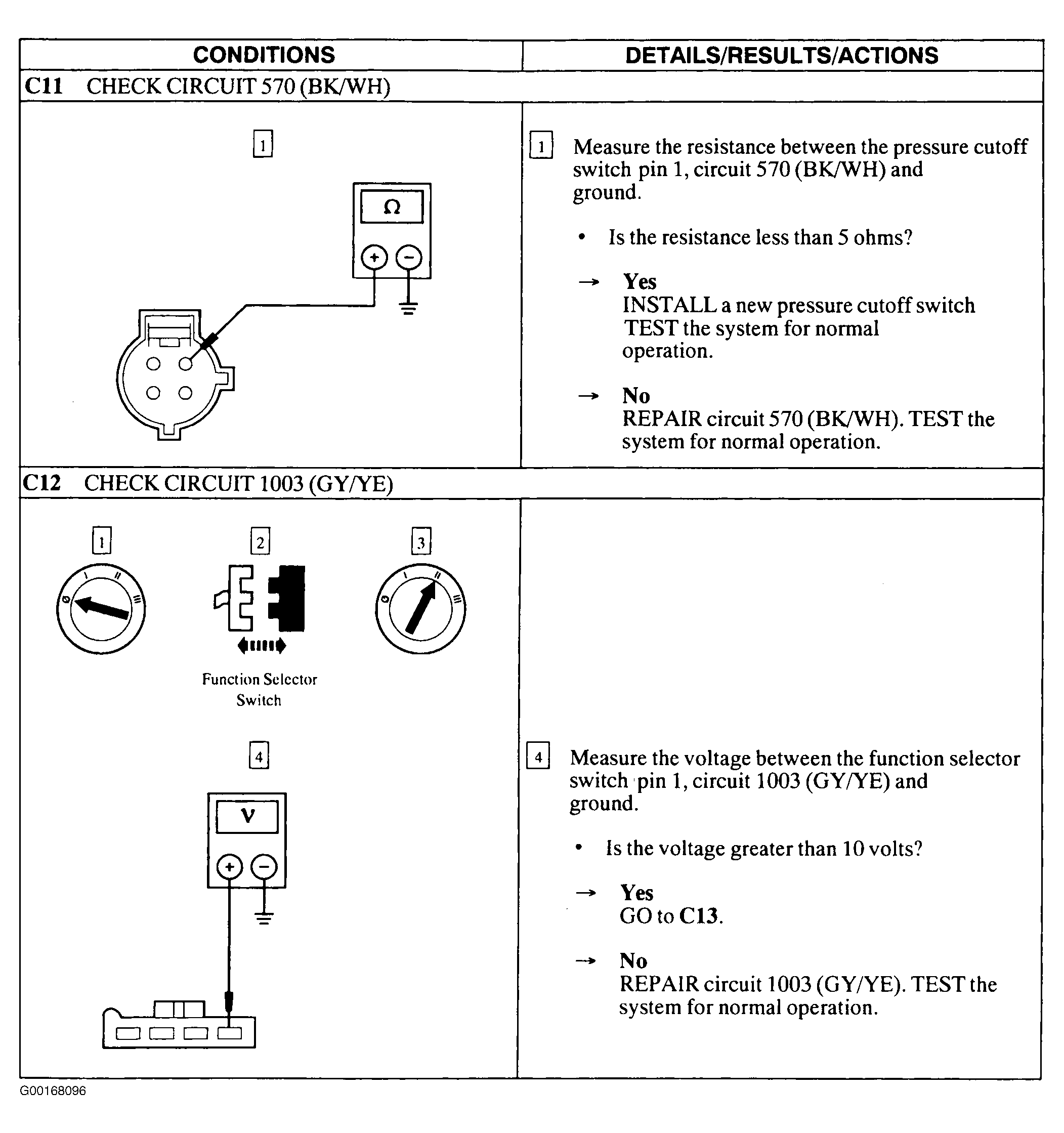

Fig 6: Test C (6 Of 11 - Steps C11-C12)

Courtesy of FORD MOTOR CO.

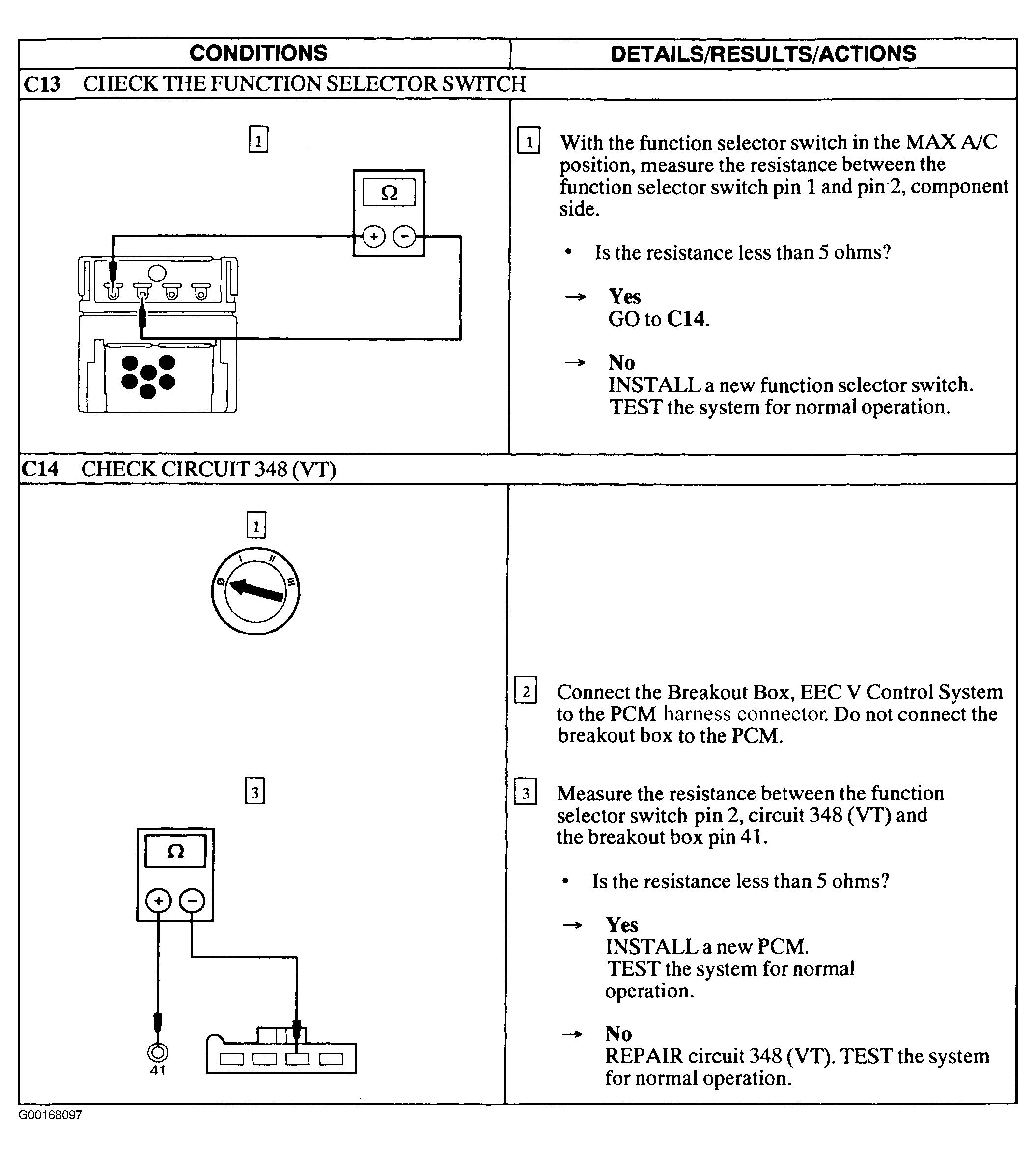

Fig 7: Test C (7 Of 11 - Steps C13-C14)

Courtesy of FORD MOTOR CO.

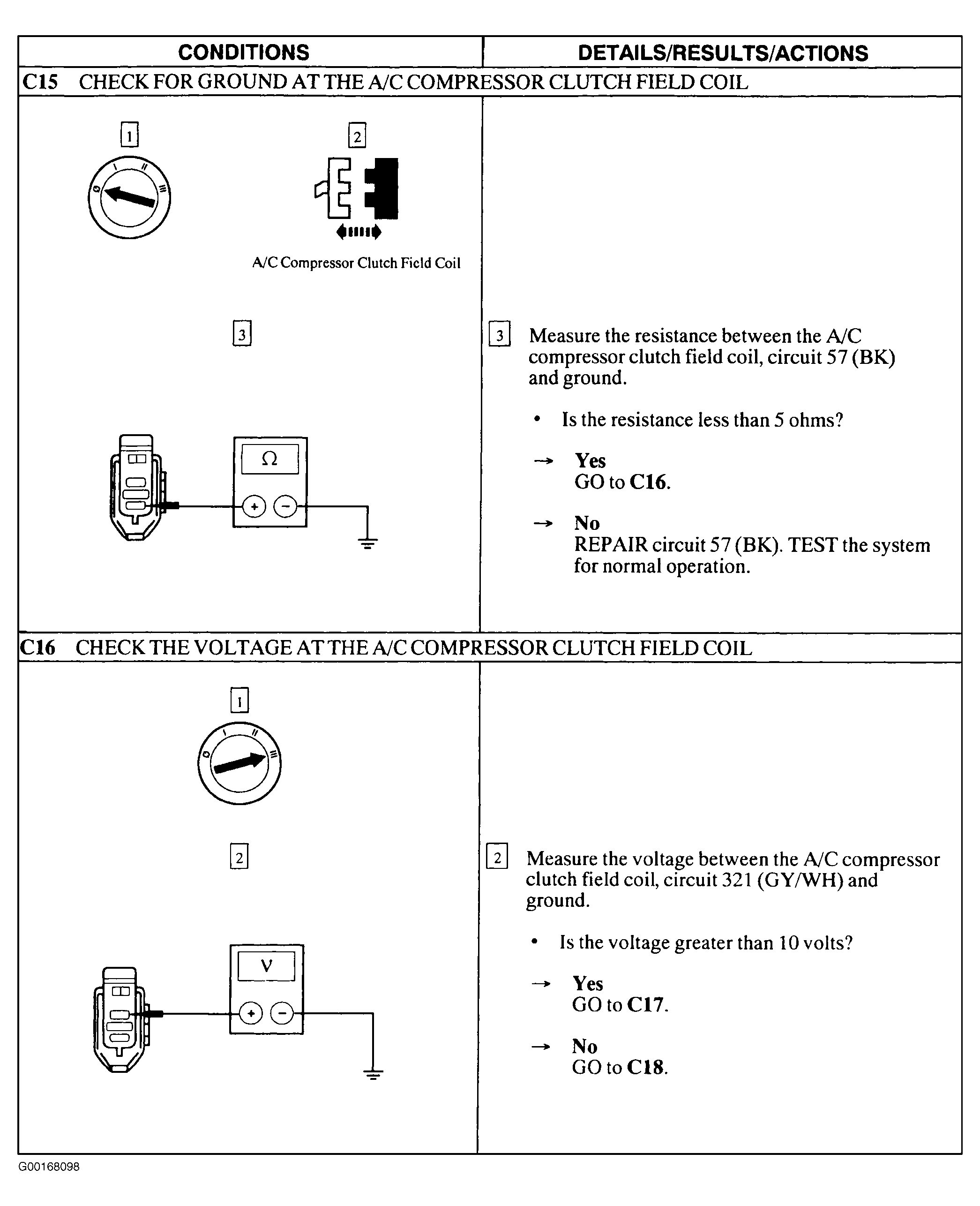

Fig 8: Test C (8 Of 11 - Steps C15-C16)

Courtesy of FORD MOTOR CO.

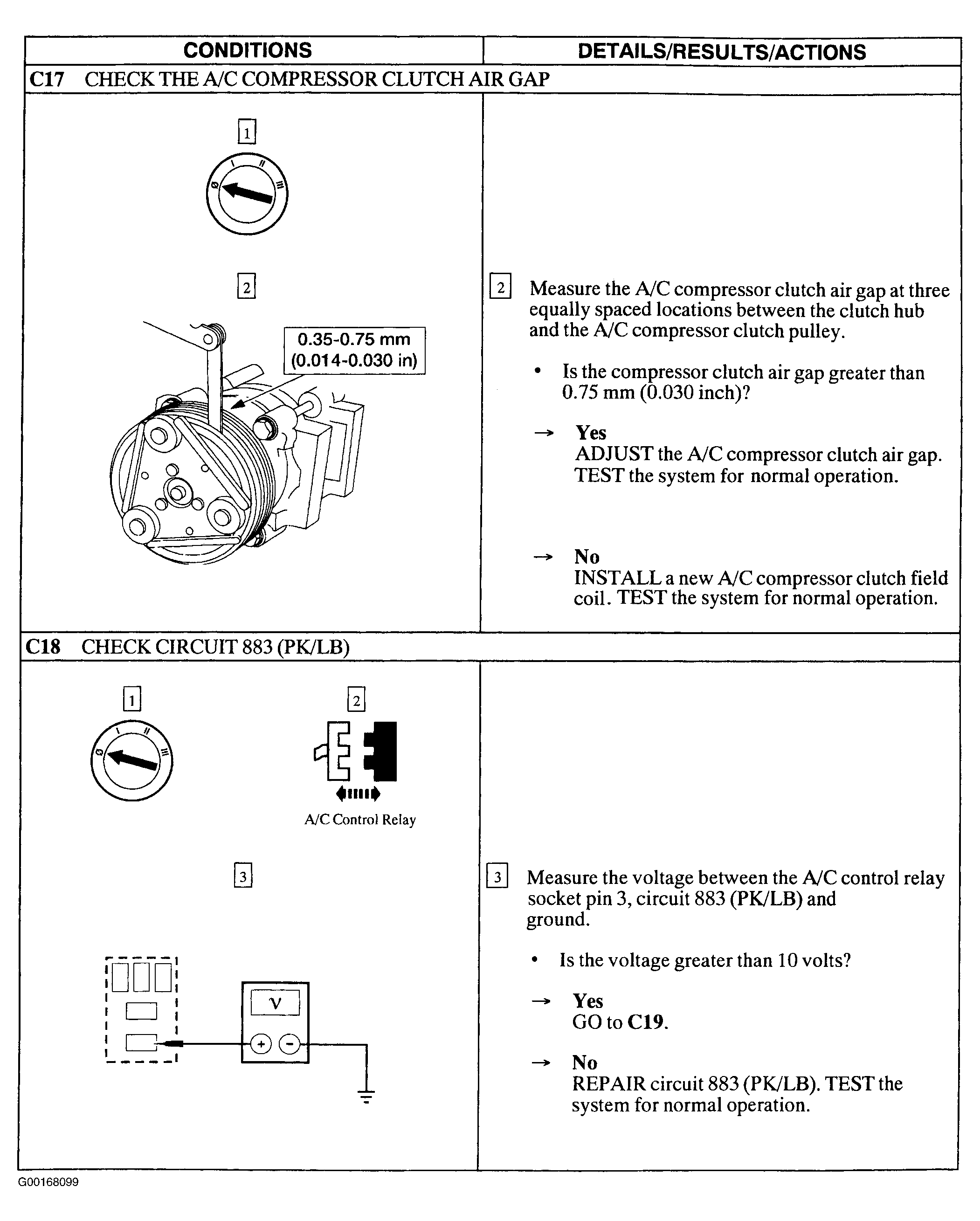

Fig 9: Test C (9 Of 11 - Steps C17-C18)

Courtesy of FORD MOTOR CO.

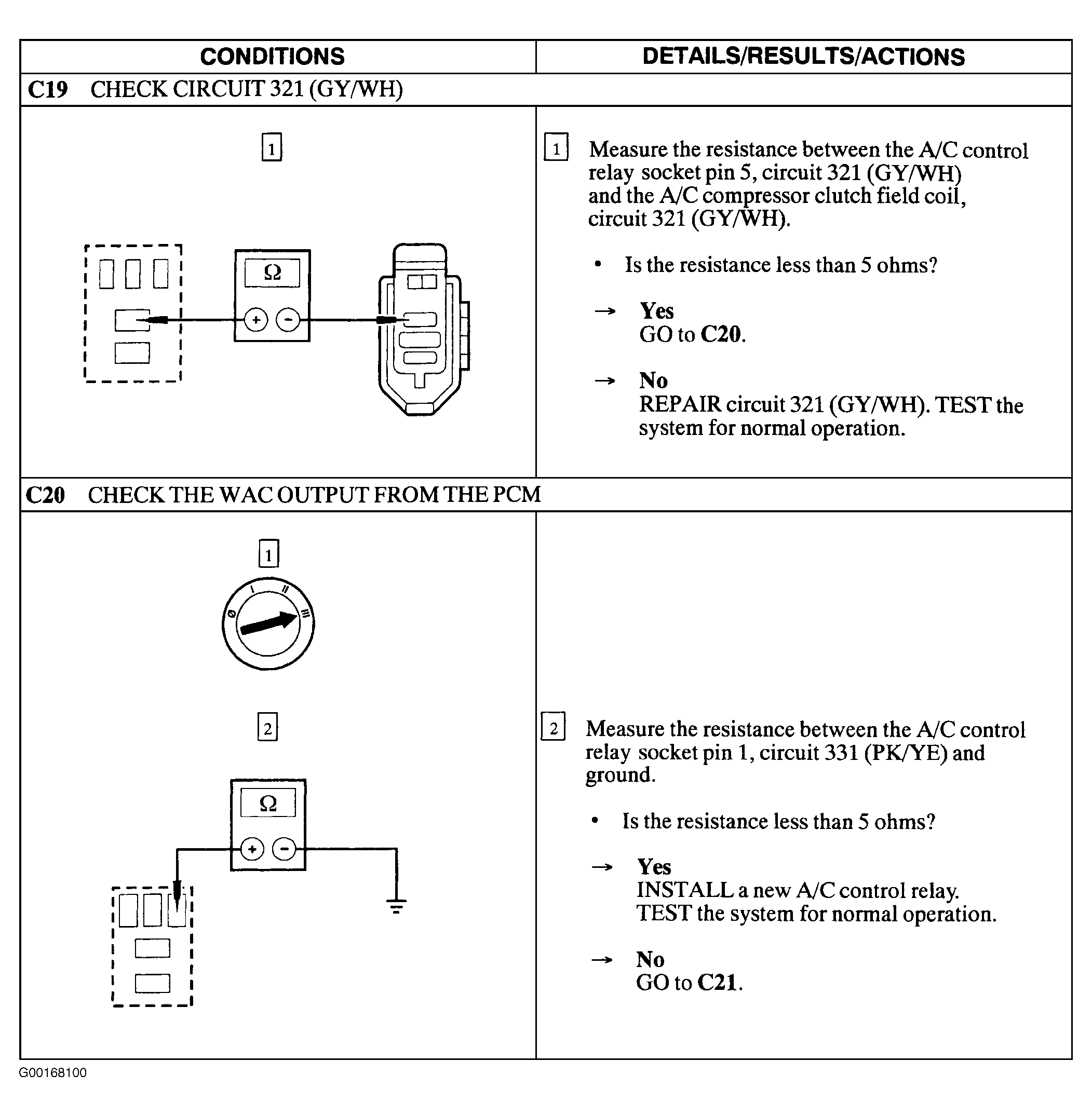

Fig 10: Test C (10 Of 11 - Steps C19-C20)

Courtesy of FORD MOTOR CO.

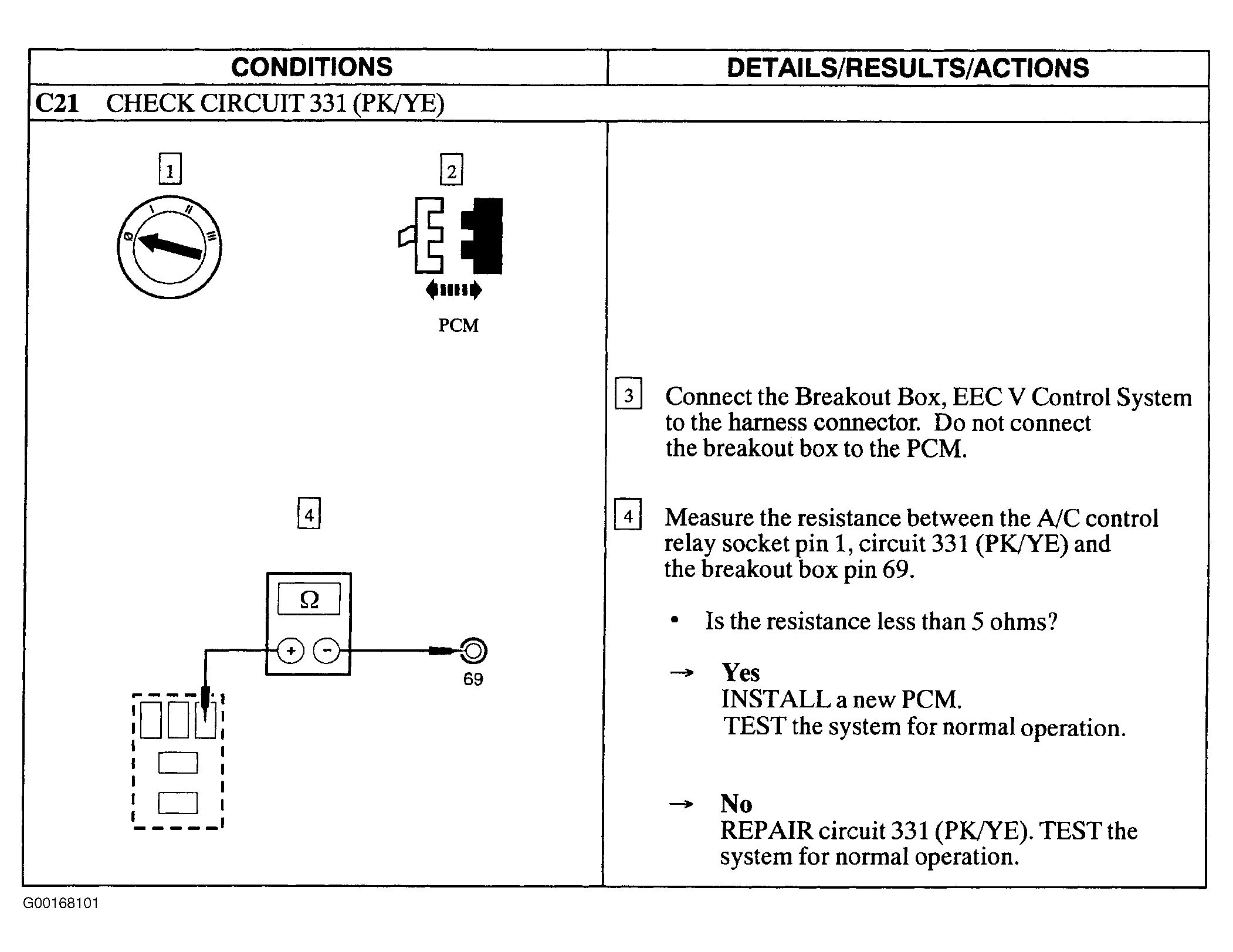

Fig 11: Test A (11 Of 11 - Step C21)

Courtesy of FORD MOTOR CO.
