Removal (Except 2.3L)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Discharge A/C system, using approved refrigerant recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove air cleaner assembly. Disconnect condenser to evaporator line from condenser. See Fig 1. Discard "O" rings.

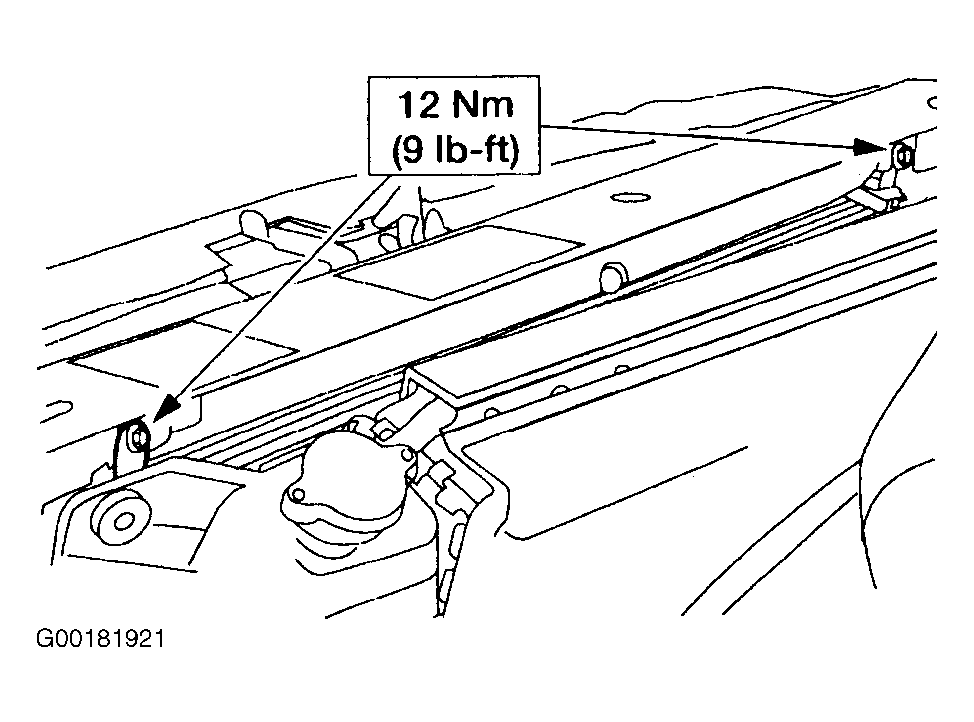

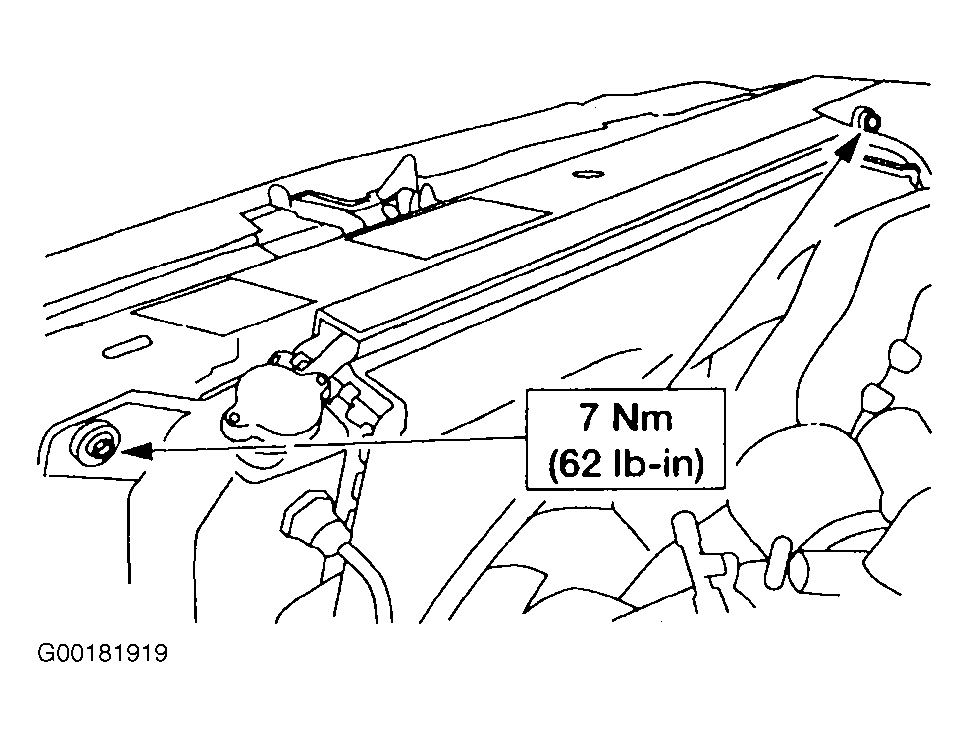

  2. Disconnect compressor to condenser discharge line from condenser. See Fig 2. Discard "O" rings. Plug open fittings. Remove radiator upper screws and tilt radiator back. See Figure. Removal upper radiator seal. See Figure. Remove condenser screws and condenser. See Figure.

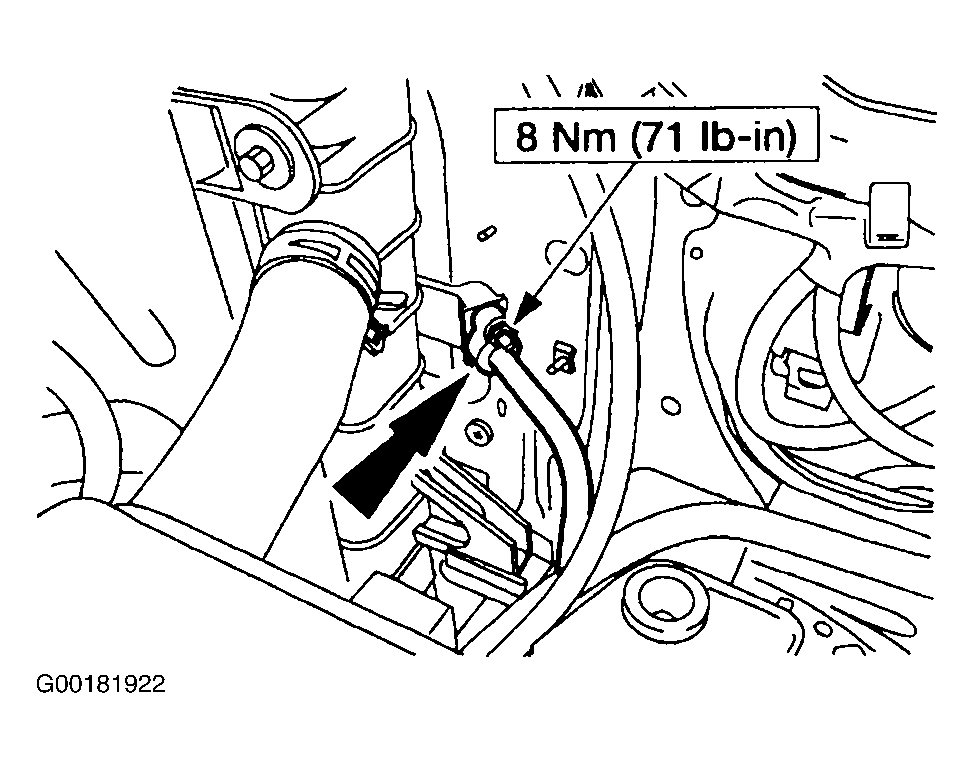

Fig 1: Removing Condenser-To-Evaporator Line From Condenser (Except 2.3L)
G00181922Courtesy of FORD MOTOR CO.

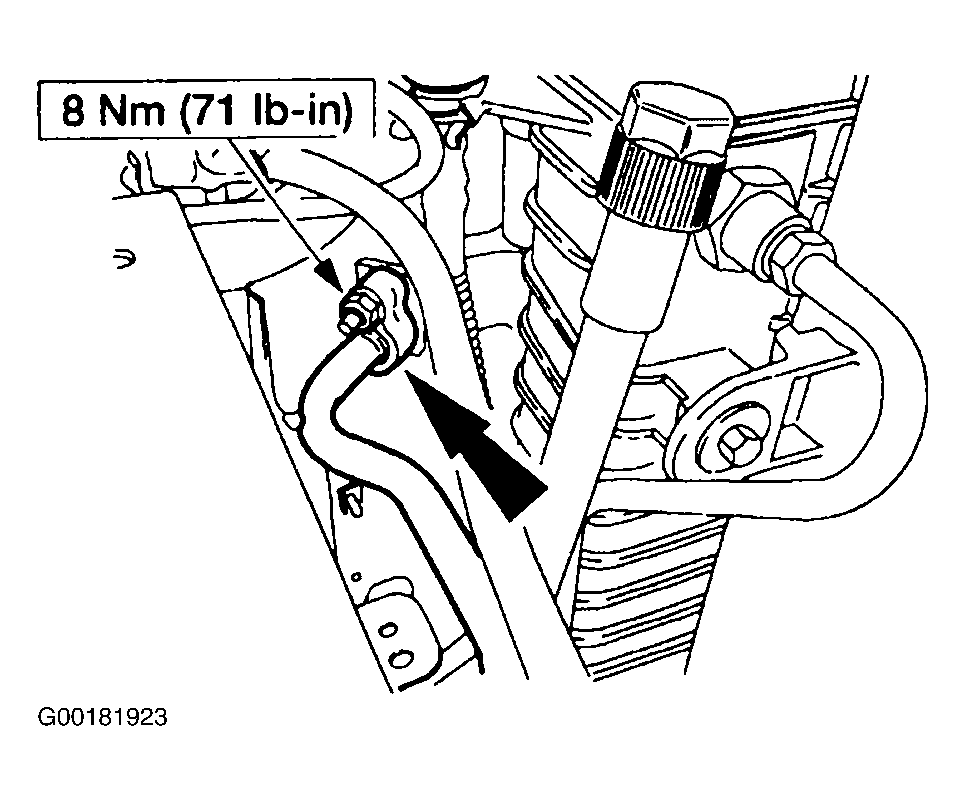

Fig 2: Removing Compressor-To-Condenser Line From Condenser (Except 2.3L)
G00181923Courtesy of FORD MOTOR CO.
