Removal (2.3L)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Discharge A/C system, using approved refrigerant recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove air cleaner outlet tube. See Figure. Remove compressor to condenser discharge line. See Fig 1. Discard "O" rings.
Disconnect condenser to evaporator line from condenser. See Fig 2. Discard "O" rings. Plug open fittings. Remove radiator upper screws and tilt radiator back. See Fig 3. Removal upper radiator seal. See Fig 4. Remove condenser screws and condenser. See Fig 5.

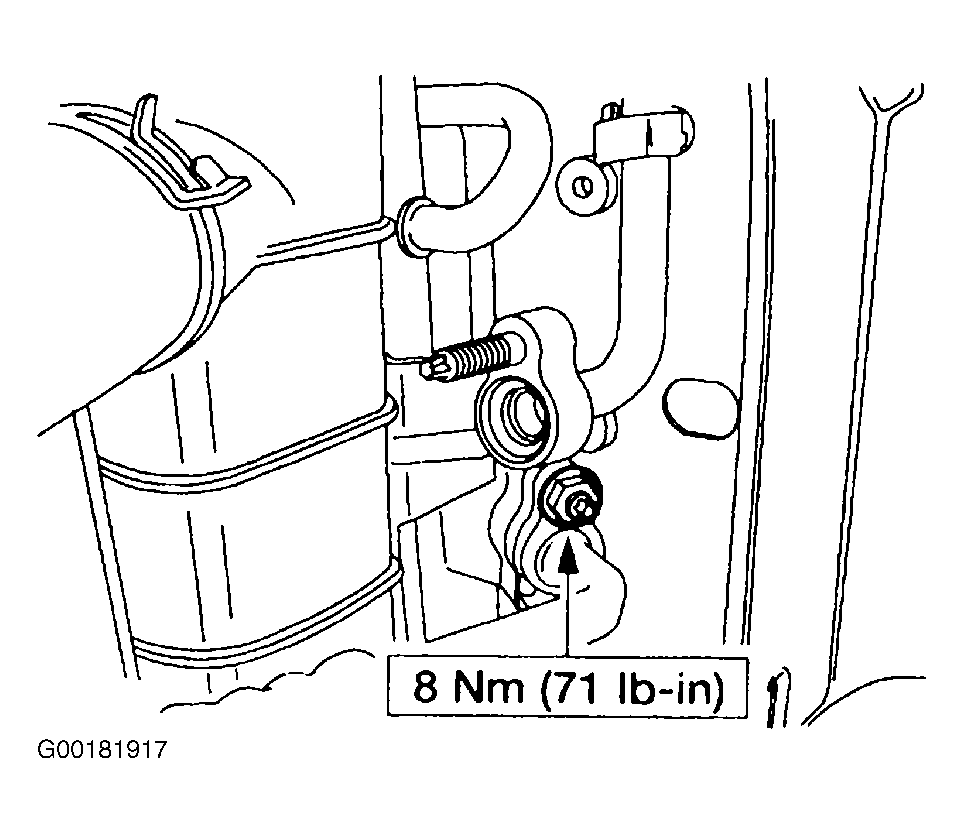

Fig 1: Removing Compressor-To-Condenser Discharge Line (2.3L)

Courtesy of FORD MOTOR CO.

Fig 2: Removing Condenser-To-Evaporator Line From Condenser (2.3L)

Courtesy of FORD MOTOR CO.

Fig 3: Removing Radiator Mounting Screws

Courtesy of FORD MOTOR CO.

Fig 4: Removing Upper Radiator Seal

Courtesy of FORD MOTOR CO.

Fig 5: Removing Condenser

Courtesy of FORD MOTOR CO.
