Removal (3.0L Engine)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. If flushing of refrigerant system has not been performed, discharge A/C system, using approved recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Loose clamp, disconnect crankcase ventilation tube and position air cleaner outlet tube aside. See Fig 1. Remove compressor drive belt. Disconnect A/C clutch coil connector. See Fig 2. Remove clamp nut on compressor manifold and tube assembly. See Fig 3. Remove manifold and tube assembly bolt. See Fig 4. Disconnect manifold and tube assembly. Remove 4 mounting bolts and compressor. See Fig 5. Discard "O" rings. Plug manifold openings.

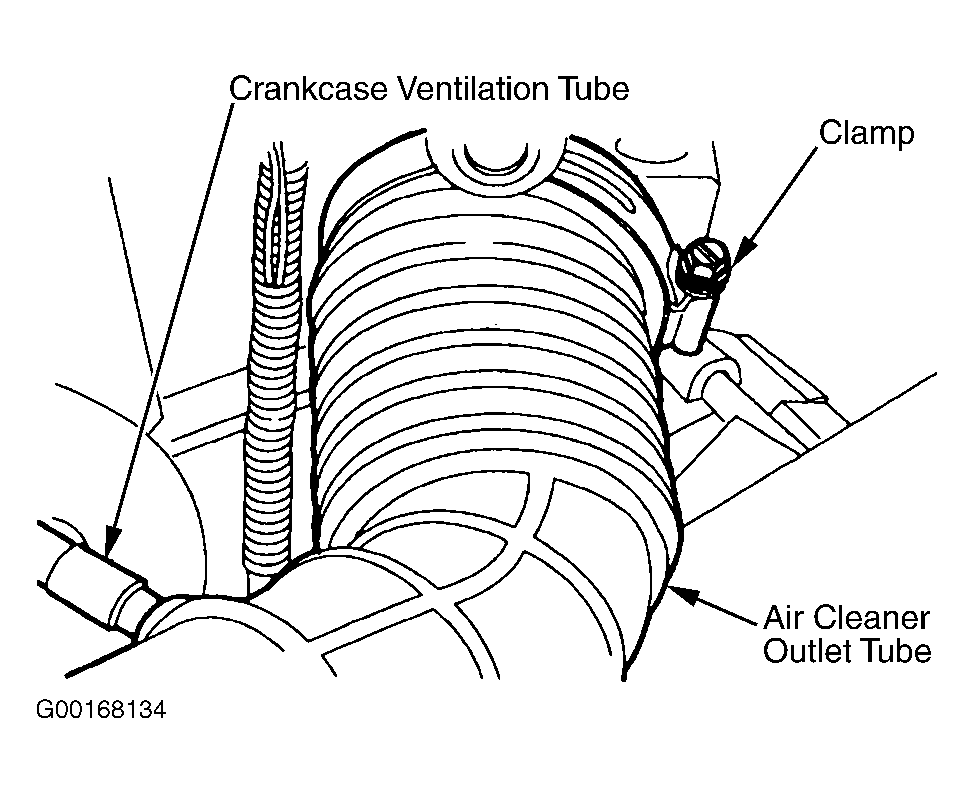

Fig 1: Removing Air Cleaner Outlet Tube (3.0L)

Courtesy of FORD MOTOR CO.

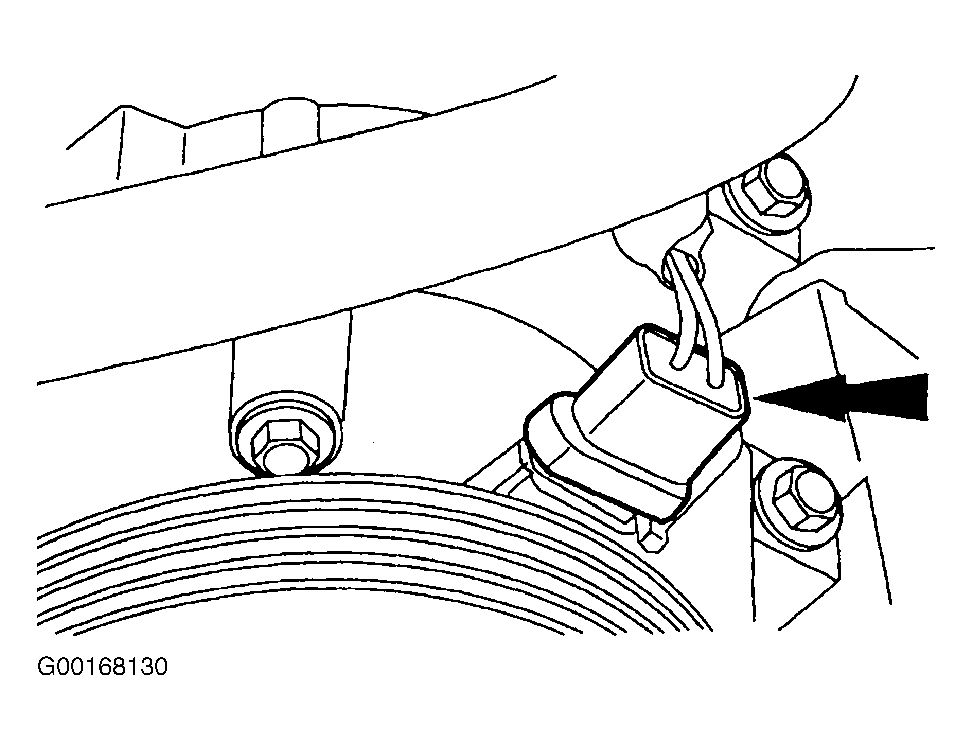

Fig 2: Identifying A/C Clutch Coil Connector (3.0L)

Courtesy of FORD MOTOR CO.

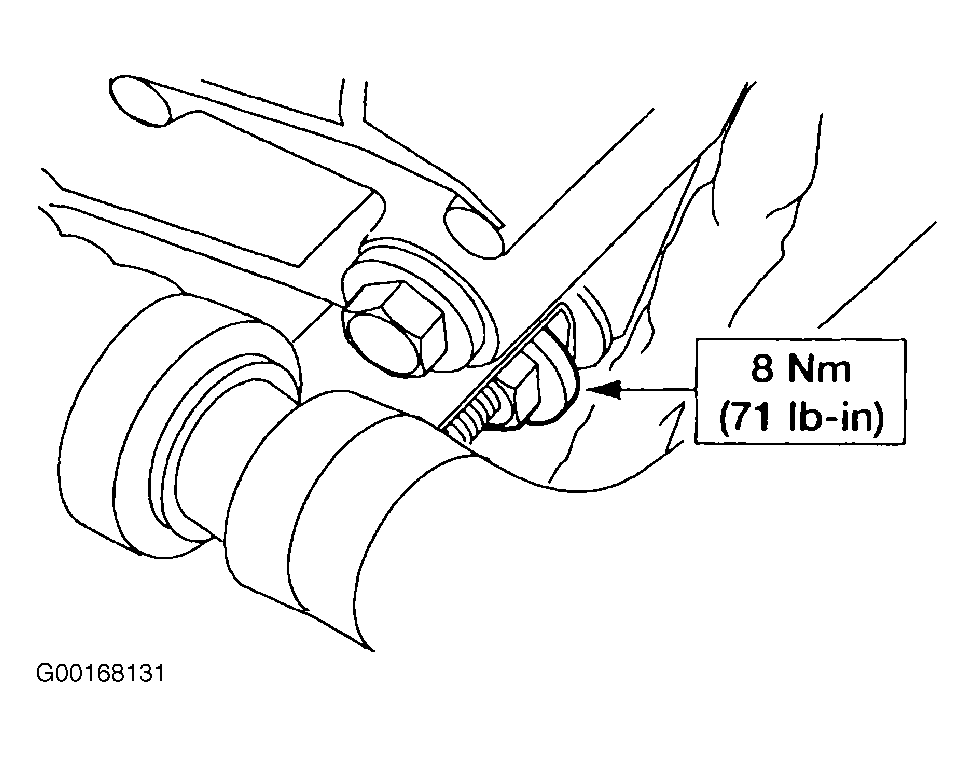

Fig 3: Identifying Clamp Nut (3.0L)

Courtesy of FORD MOTOR CO.

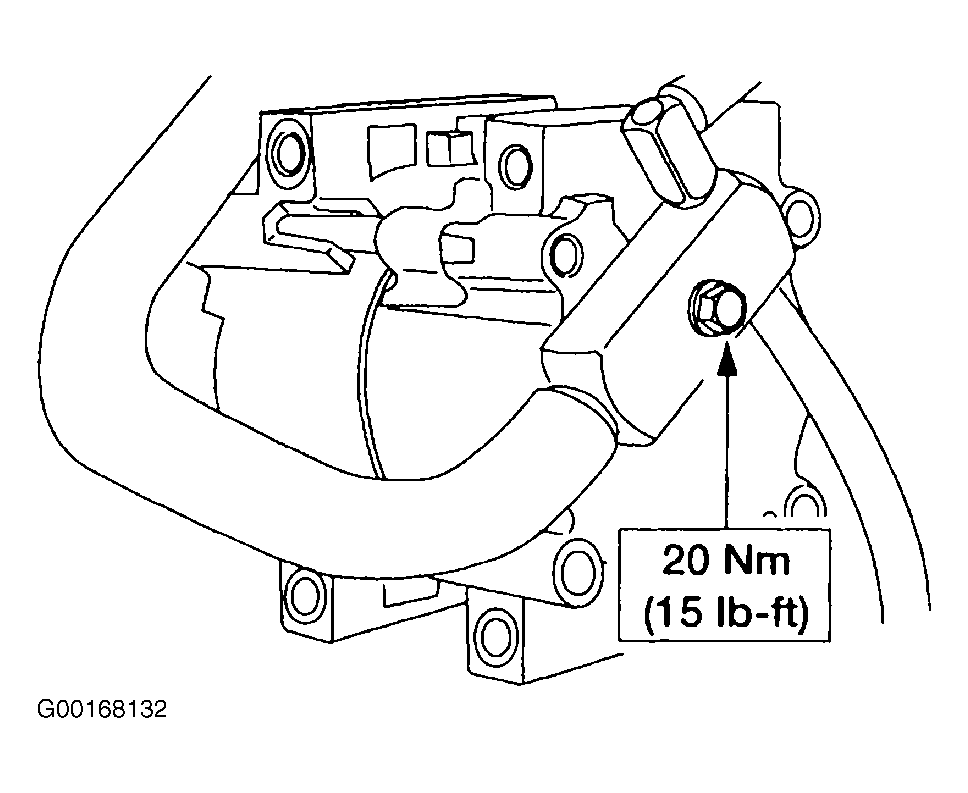

Fig 4: Identifying Manifold & Tube Assembly (3.0L)

Courtesy of FORD MOTOR CO.

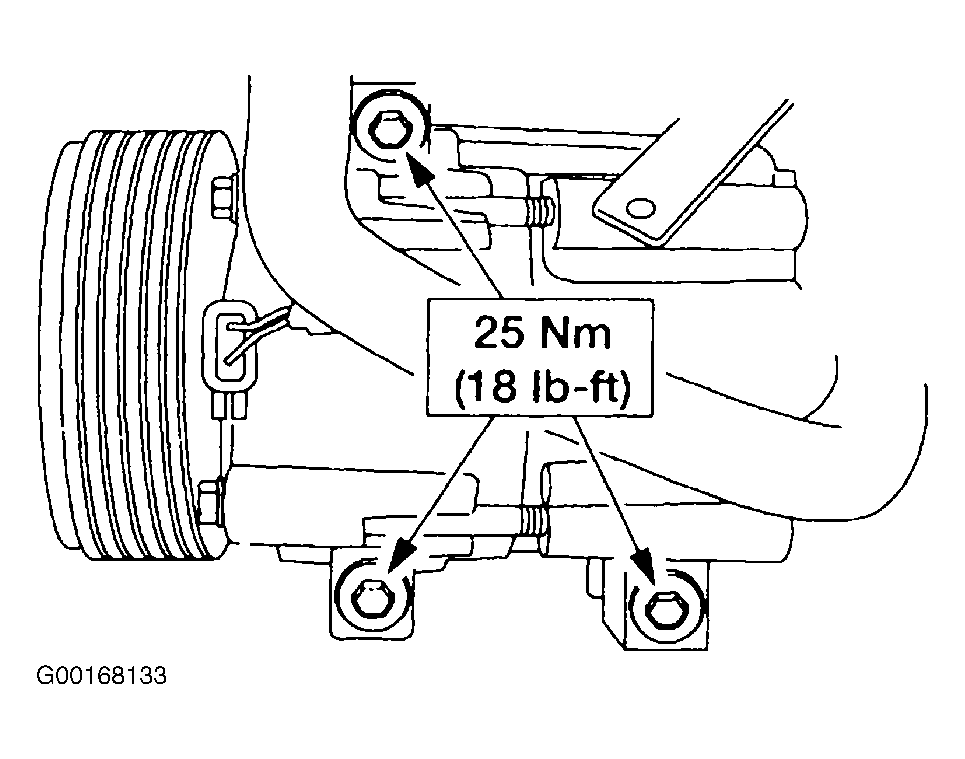

Fig 5: Removing A/C Compressor (3.0L)

Courtesy of FORD MOTOR CO.
