Removal (2.3L Engine)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. If flushing of refrigerant system has not been performed, discharge A/C system, using approved recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove compressor drive belt. Disconnect A/C clutch coil connector. See Fig 1. Remove manifold and tube assembly bolt. See Fig 2. Disconnect and position aside manifold and tube assembly. Remove 4 mounting bolts and remove compressor. See Fig 3. Discard "O" rings. Plug manifold openings.

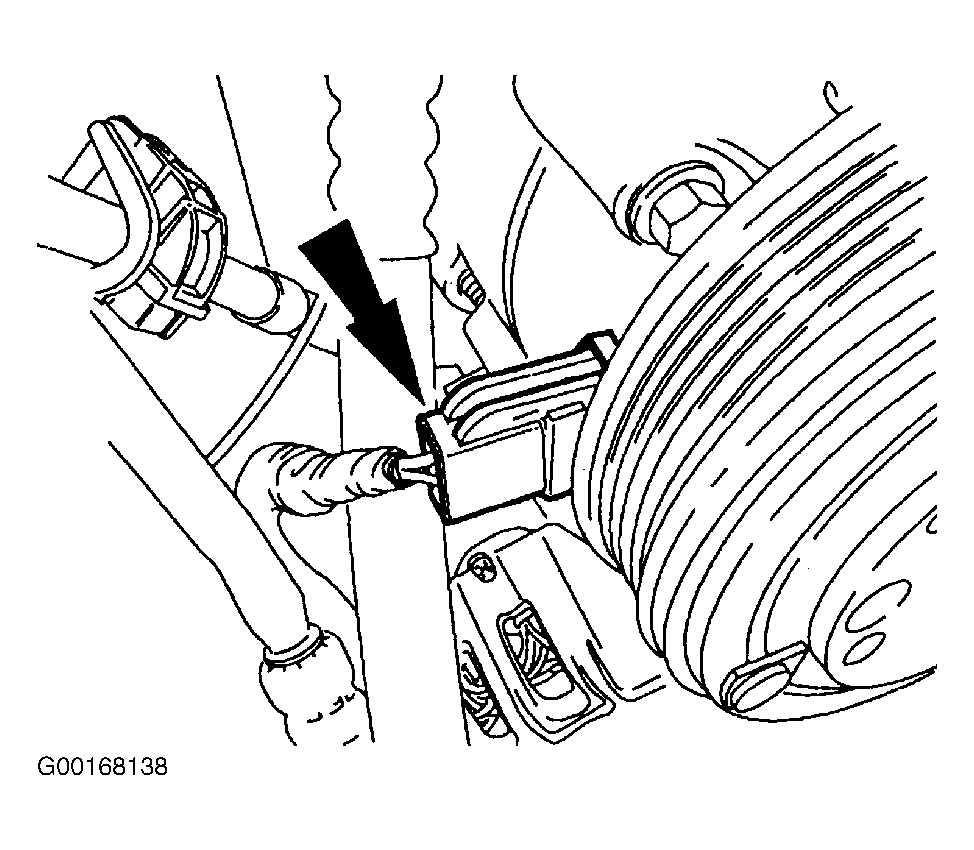

Fig 1: Identifying A/C Clutch Coil Connector (2.3L)

Courtesy of FORD MOTOR CO.

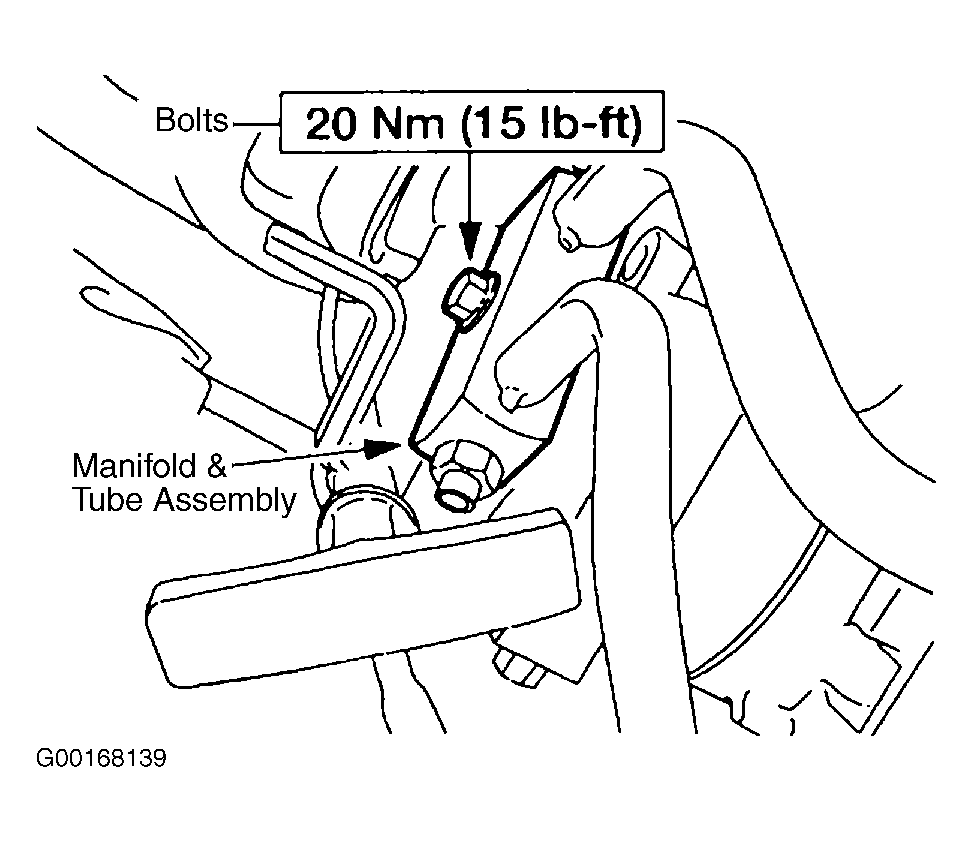

Fig 2: Identifying Manifold & Tube Assembly (2.3L)

Courtesy of FORD MOTOR CO.

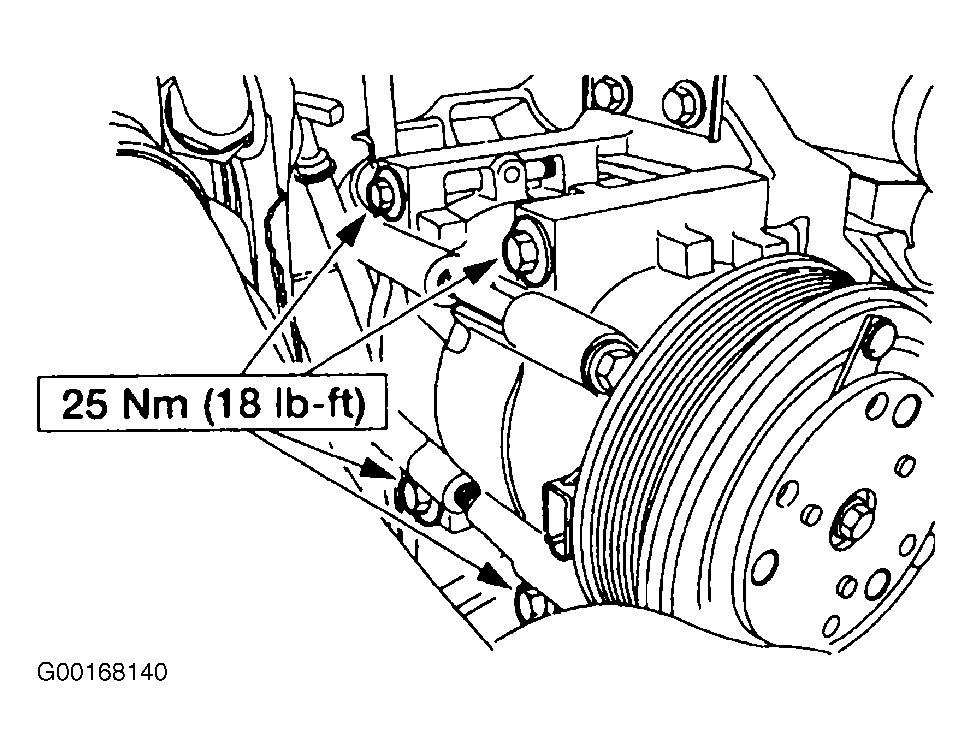

Fig 3: Removing A/C Compressor (2.3L)

Courtesy of FORD MOTOR CO.
