Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

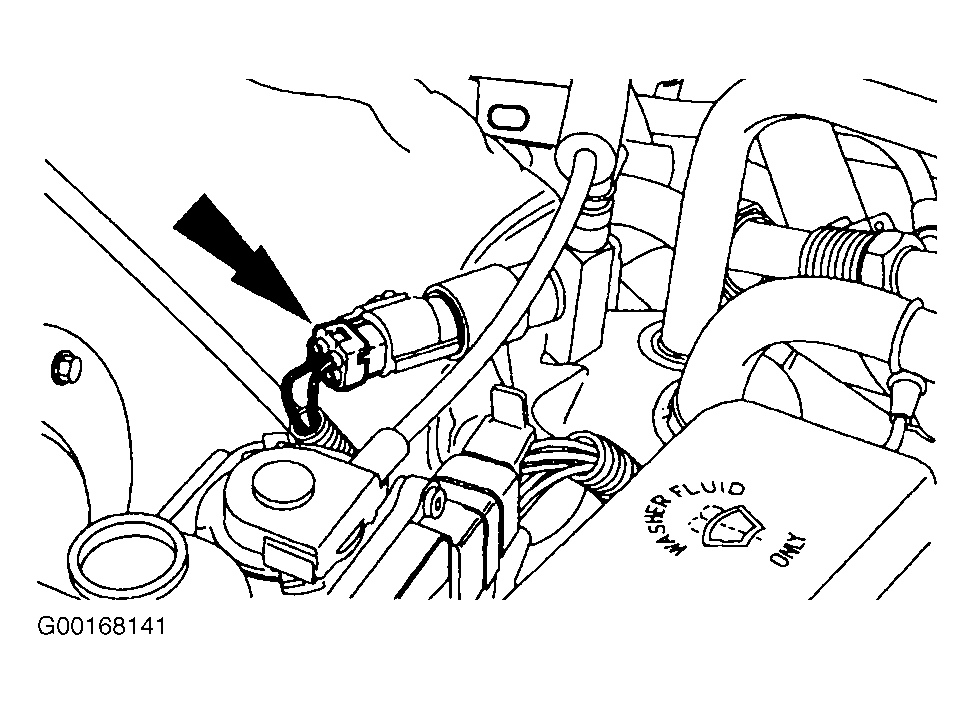

Disconnect negative battery cable. Disconnect harness connector from A/C cycling switch. See Figure. Unscrew pressure switch from accumulator-drier. To install, reverse removal procedure. Lubricate new "O" ring with clean refrigerant oil.
