Item 22: Fuel Gauge Sending Unit Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note the routing of the sending unit wire for installation.

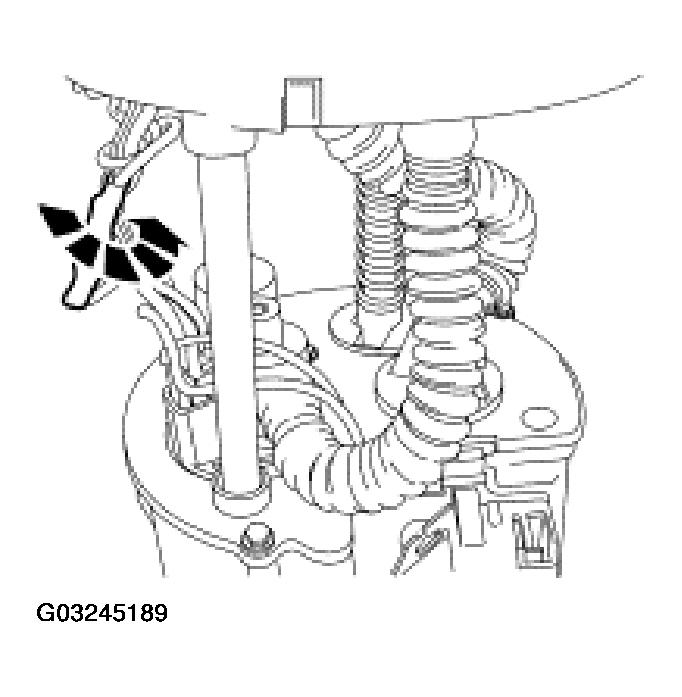

Fig 1: Unwrapping Sending Unit Wire From Fuel Pump Module Wire Harness

Courtesy of FORD MOTOR CO.

Unwrap the sending unit wire from the rest of the fuel pump module wire harness.

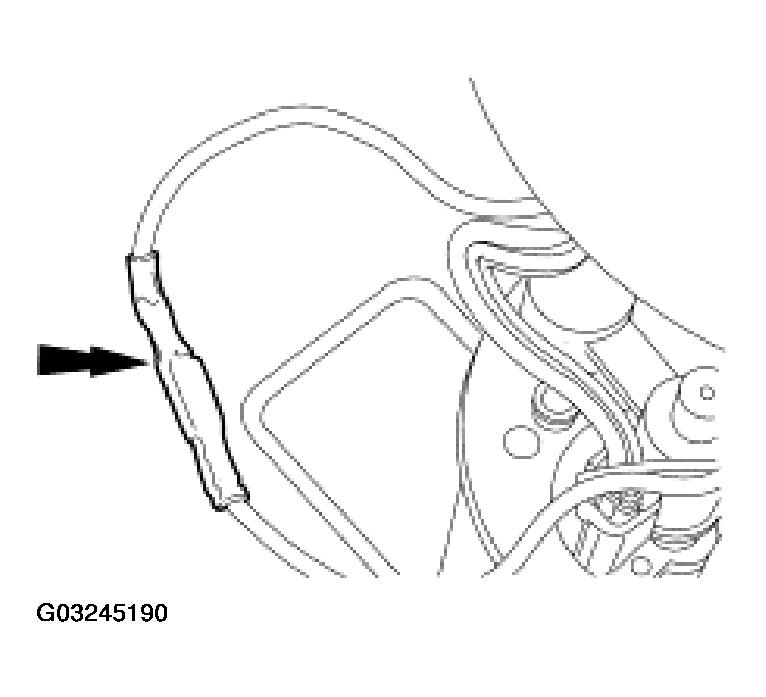

Remove the heat shrink tube covering the electrical connector.

Fig 2: Removing Heat Shrink Tube Covering Electrical Connector
Courtesy of FORD MOTOR CO.

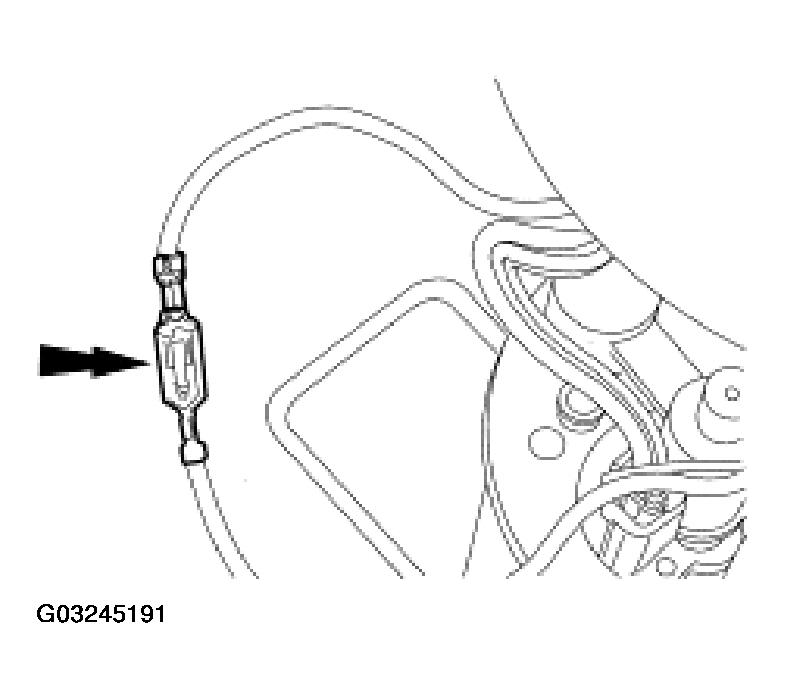

Disconnect the electrical connector.

Fig 3: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

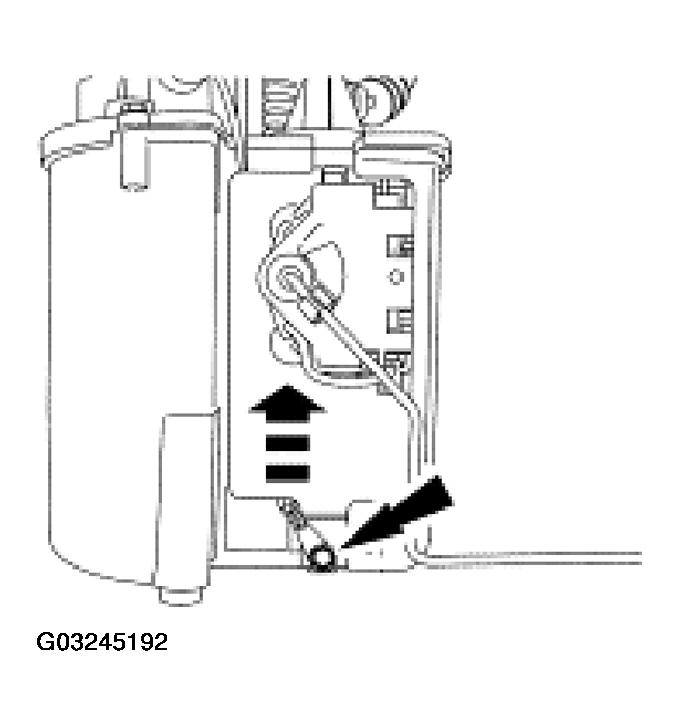

Remove the screw and lift up to remove the fuel gauge sending unit.

Fig 4: Removing Screw
Courtesy of FORD MOTOR CO.
