Item 5: Muffler Assembly Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable jack, support the exhaust system.

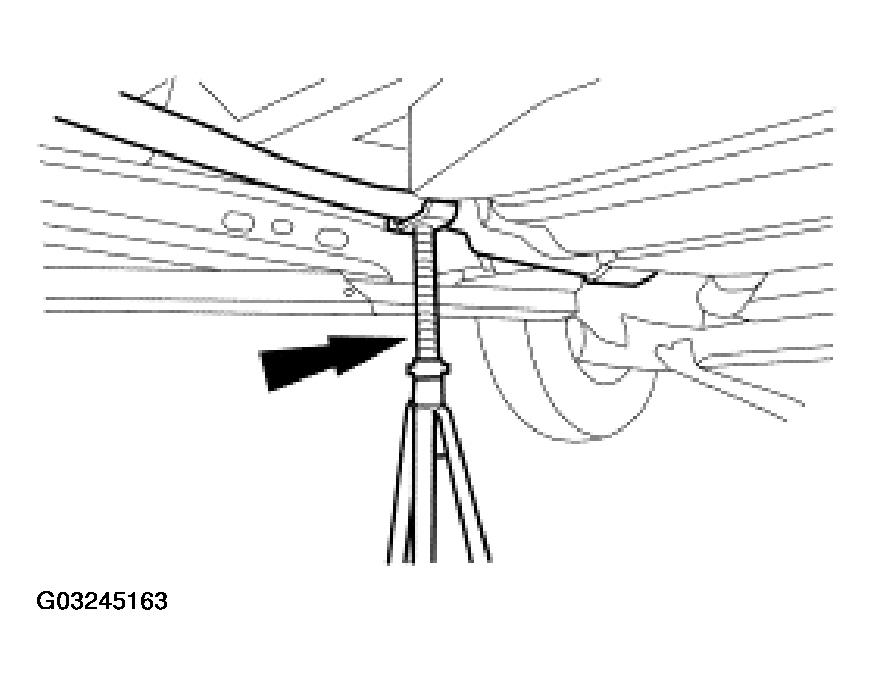

    Fig 1: Supporting Exhaust System Using Suitable Jack
    G03245163Courtesy of FORD MOTOR CO.
  2. Disconnect the ground strap from the exhaust hanger.

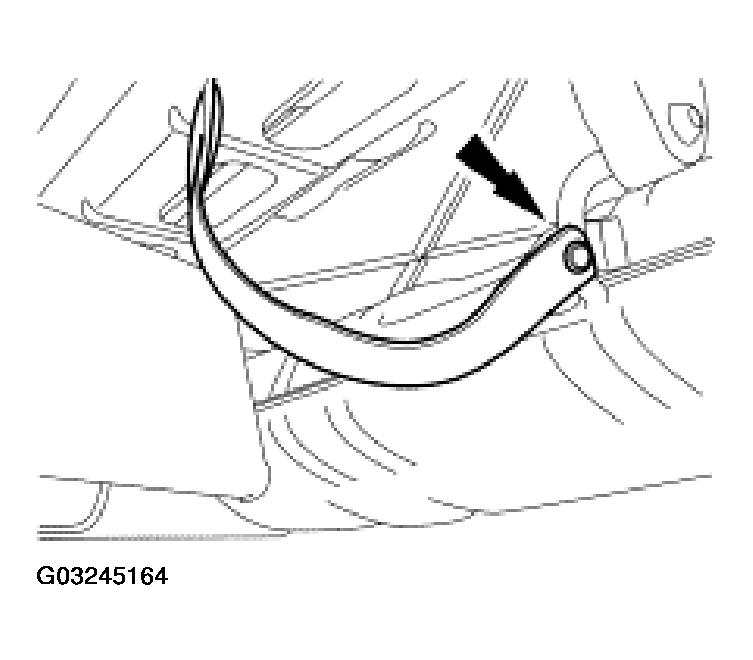

    Fig 2: Disconnecting Exhaust Hanger
    G03245164Courtesy of FORD MOTOR CO.
  3. Remove the track bar bolt, then detach the track bar from the body.

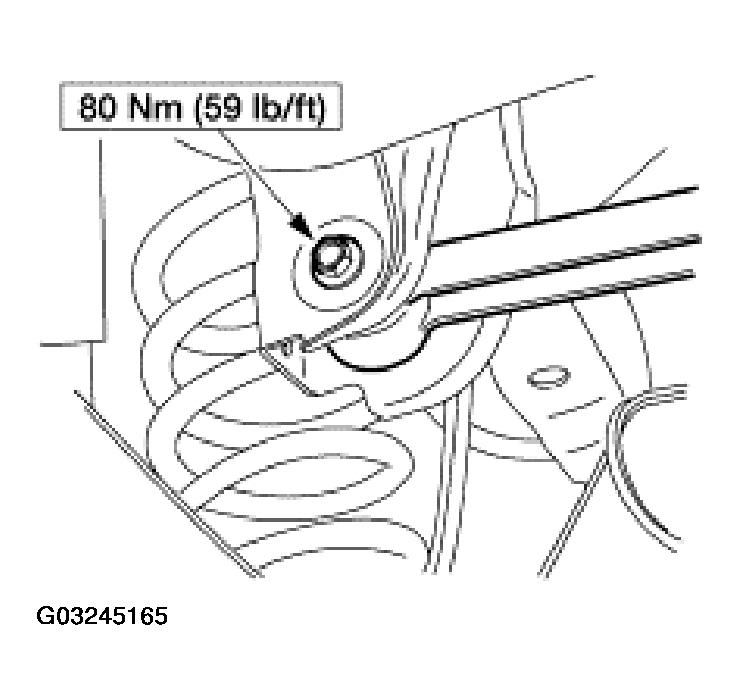

    Fig 3: Removing Track Bar Bolt
    G03245165Courtesy of FORD MOTOR CO.
