Item 13: Catalytic Converter Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Support the catalytic converter near the rear outlet. Use caution removing the catalytic converter. Make sure not to damage the manifold outlet flare, the converter inlet flare or the studs.

NOTE: If necessary, remove the damper.

Disconnect the lower catalytic converter bracket.

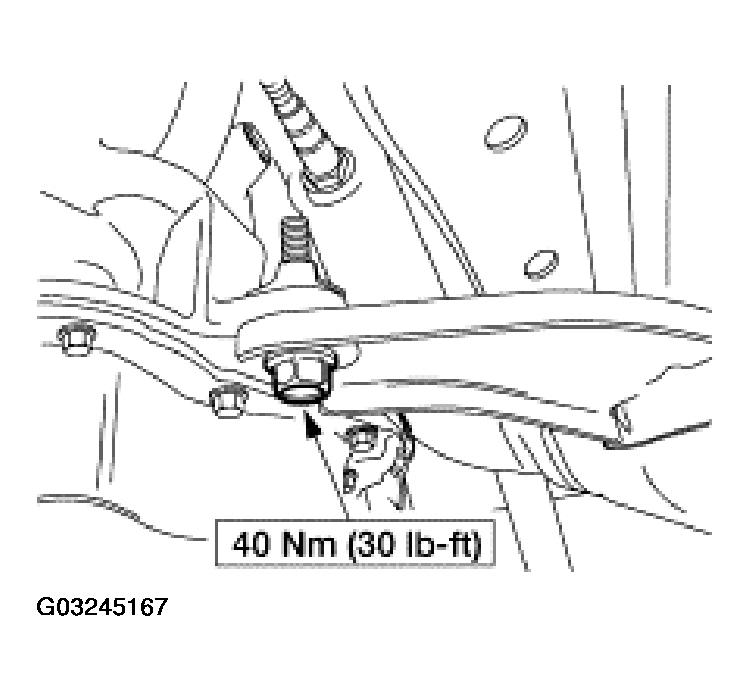

Fig 1: Disconnecting Lower Catalytic Converter Bracket
Courtesy of FORD MOTOR CO.
Disconnect the upper catalytic converter bracket.

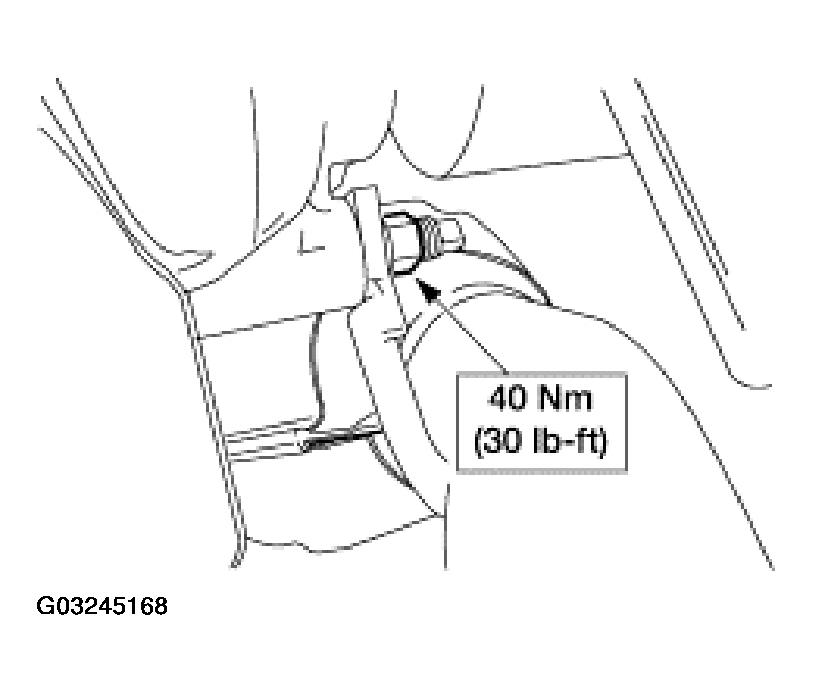

Fig 2: Disconnecting Upper Catalytic Converter Bracket
Courtesy of FORD MOTOR CO.
