Items 1 And 2: Transmission Selector Cable End And Retainer Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission selector cable from the bracket.
    1. Disconnect the transmission selector cable end from the manual lever.
    2. Push the lock tab and separate the transmission selector cable from the bracket.
    3. Position the transmission selector cable out of the way.

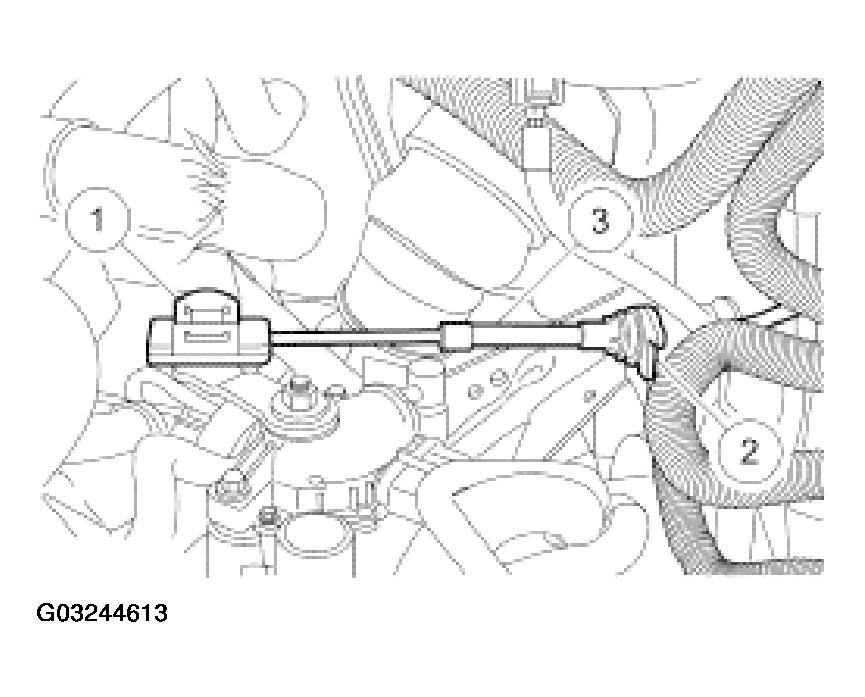

Fig 1: Removing Transmission Selector Cable From Bracket
G03244613Courtesy of FORD MOTOR CO.
