Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicles that are not equipped with a trailer tow package will have this type of a cooling system.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration.

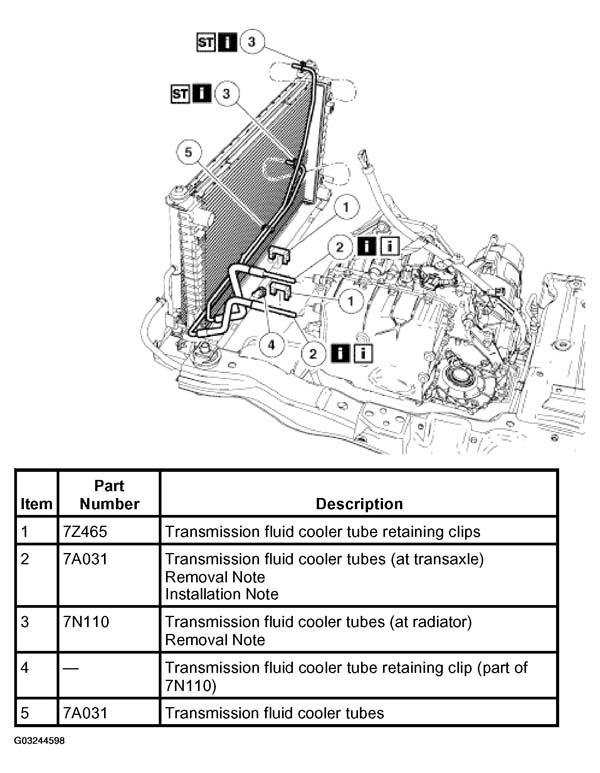

    Fig 1: Transmission Fluid Cooler Removal Sequence
    G03244598Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
