Drive Sprocket/Turbine Shaft: Disassembly

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive sprocket/turbine shaft seal and O-ring.
    • Remove the drive sprocket/turbine shaft O-ring.
    • Remove the drive sprocket/turbine shaft seal.

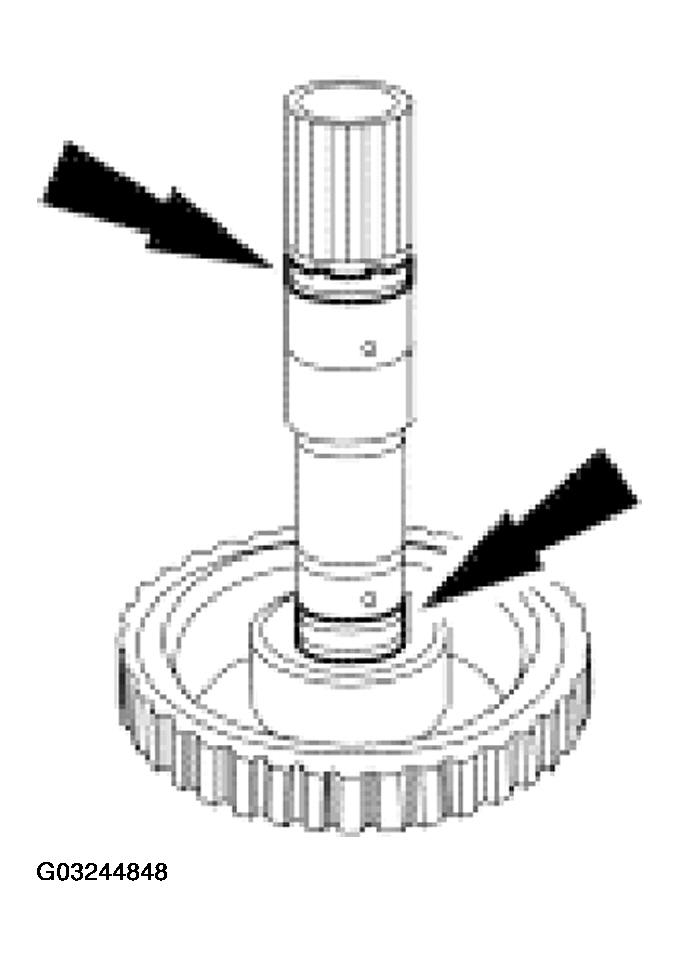

    Fig 1: Removing Drive Sprocket/Turbine Shaft Seal And O-Ring
    G03244848Courtesy of FORD MOTOR CO.
  2. Inspect the bearing race for wear. If the bearing is worn a new drive sprocket/turbine shaft will need to be installed.

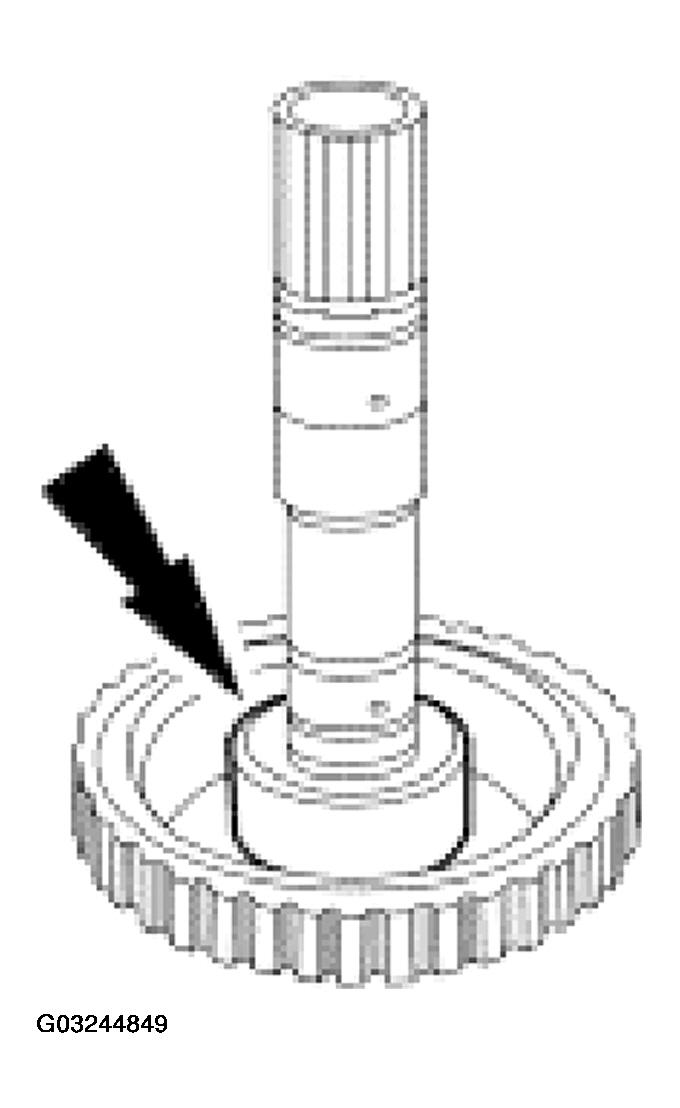

    Fig 2: Inspecting Bearing Race For Wear
    G03244849Courtesy of FORD MOTOR CO.
  3. Remove the turbine shaft front seal.

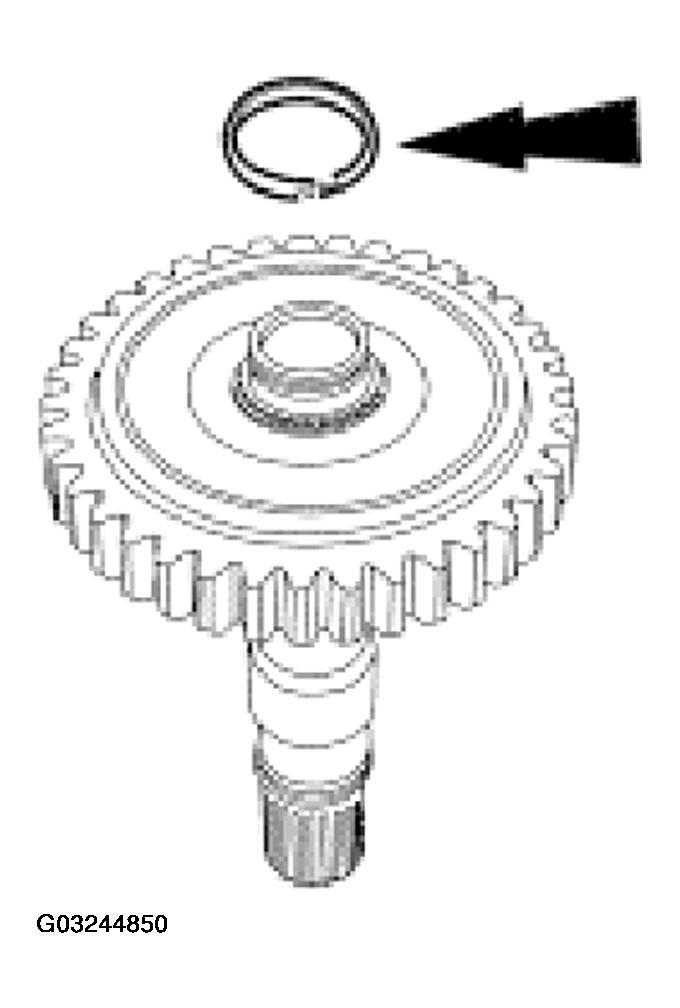

Fig 3: Removing Turbine Shaft Front Seal
G03244850Courtesy of FORD MOTOR CO.
