Drive Sprocket/Turbine Shaft: Assembly

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that the seals are mated correctly.
    Fig 1: Ensuring Seals Are Mated Correctly
    G03244851Courtesy of FORD MOTOR CO.
  2. Install the drive sprocket/turbine shaft seal and O-ring.
    • Install the drive sprocket/turbine shaft O-ring.
    • Install the drive sprocket/turbine shaft seal.

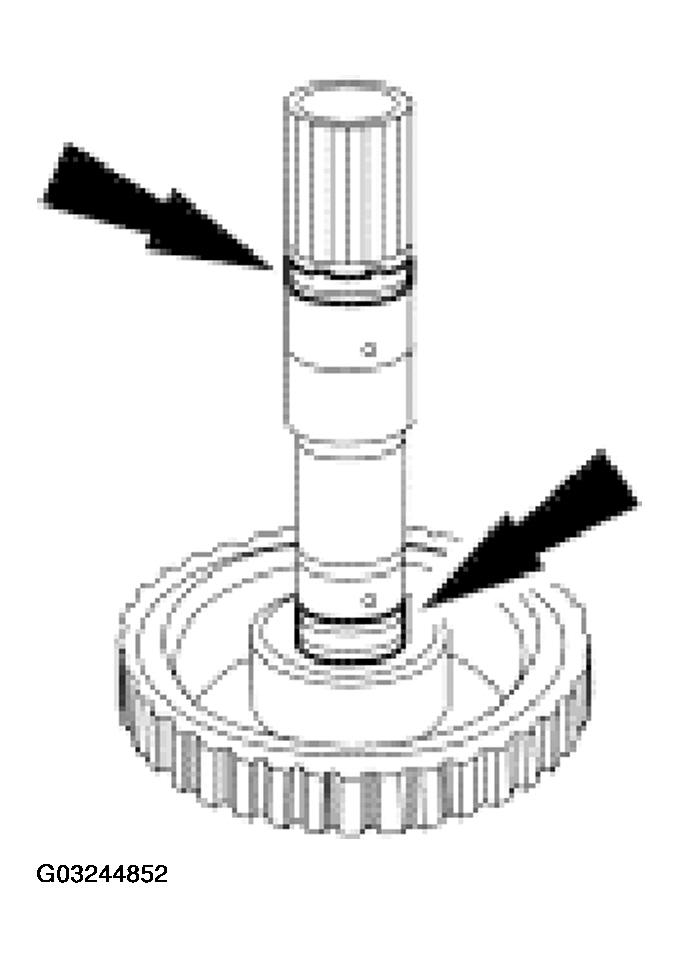

      Fig 2: Installing Drive Sprocket/Turbine Shaft Seal And O-Ring
      G03244852Courtesy of FORD MOTOR CO.
  3. Install the turbine shaft front seal.

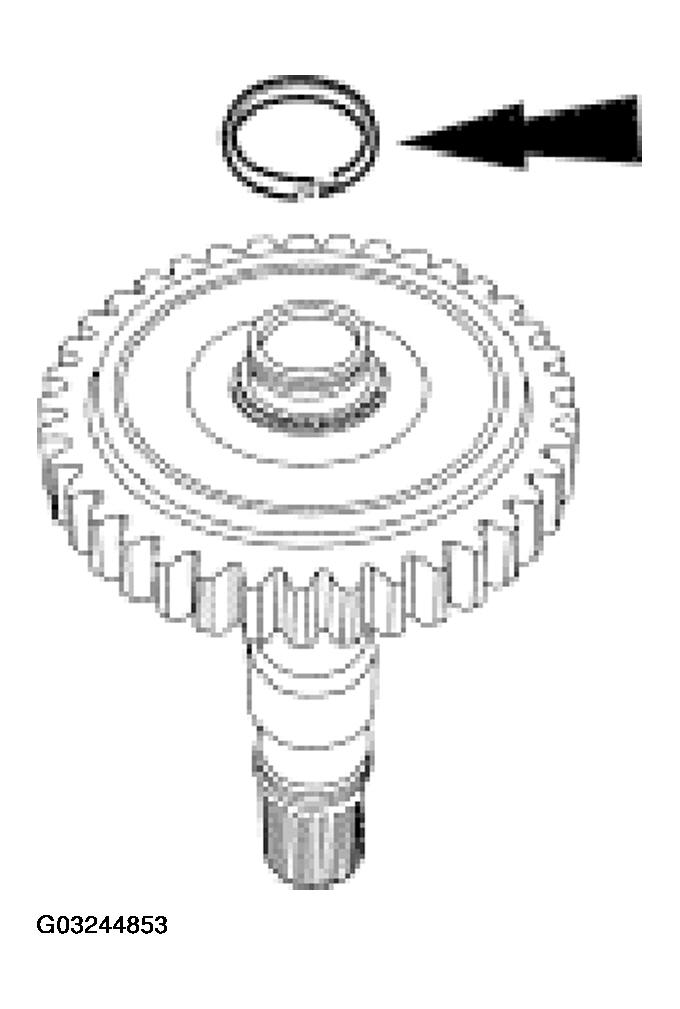

    Fig 3: Installing Turbine Shaft Front Seal
    G03244853Courtesy of FORD MOTOR CO.
  4. Make sure that the seal is locked correctly.
    Fig 4: Ensuring Seal Is Locked Correctly
    G03244854Courtesy of FORD MOTOR CO.
