Section 526 (Automatic Transmission)
>>
Diagnosis And Testing
>>
Transaxle Connector Layouts
>>
Transaxle Internal Harness Diagram
Transaxle Internal Harness Diagram
WARNING:
This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

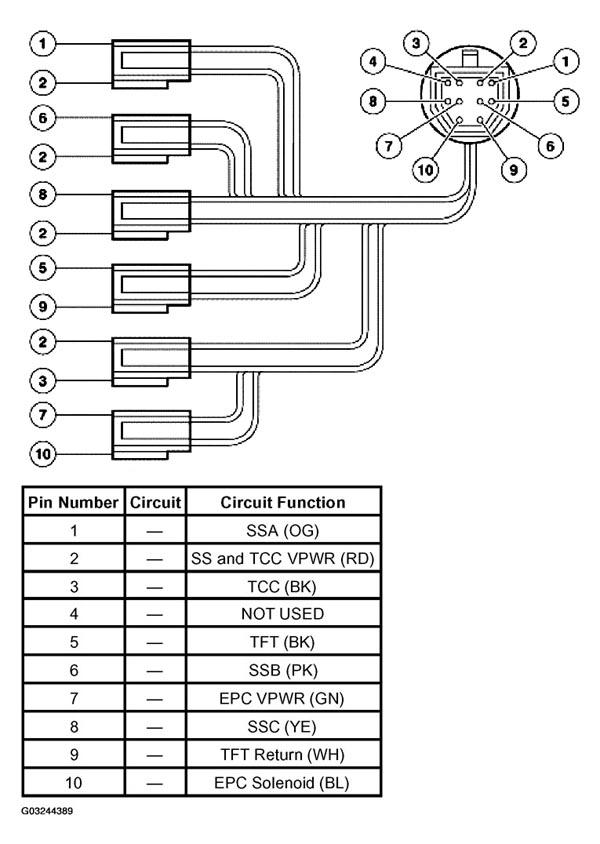

Fig 1: Transaxle Internal Harness Diagram
Courtesy of FORD MOTOR CO.
