WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

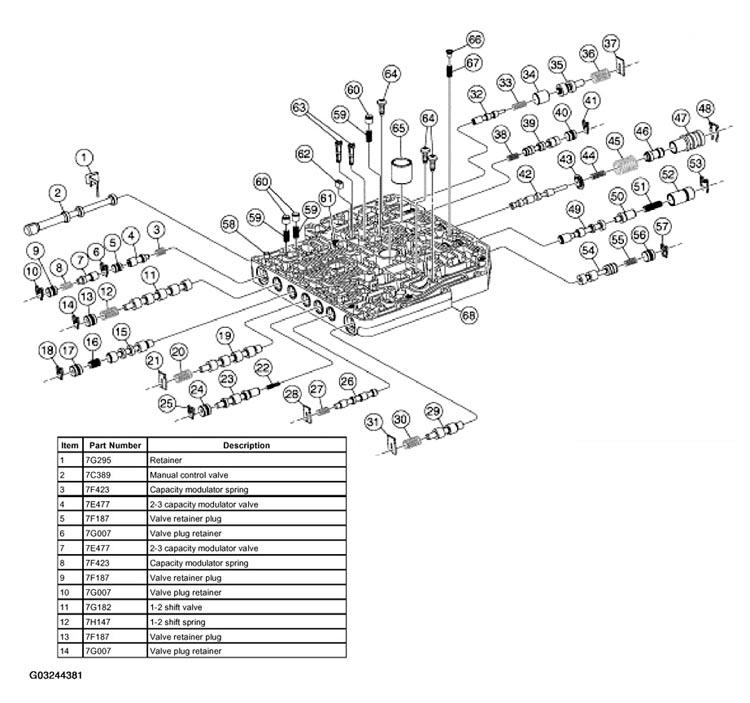

Fig 1: Identifying Main Control Valves Components (Items 1-14)
Courtesy of FORD MOTOR CO.

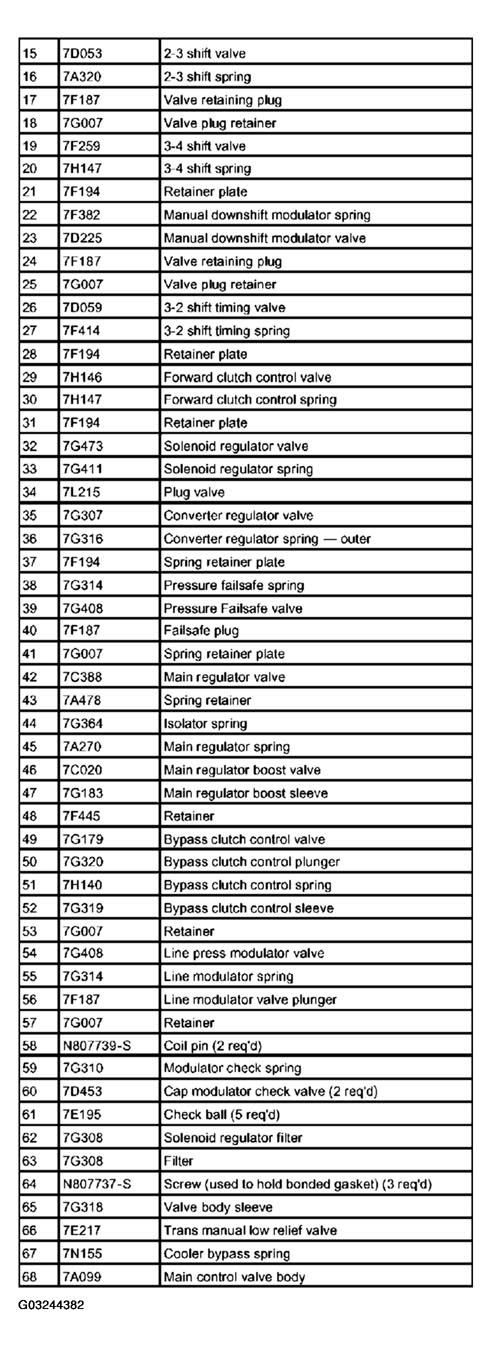

Fig 2: Identifying Main Control Valves Components (Items 15-68)
