Power Steering Position (PSP) Switch

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to IDENTIFICATION CODES .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  3. Remove the parts in the order indicated in Fig 1.

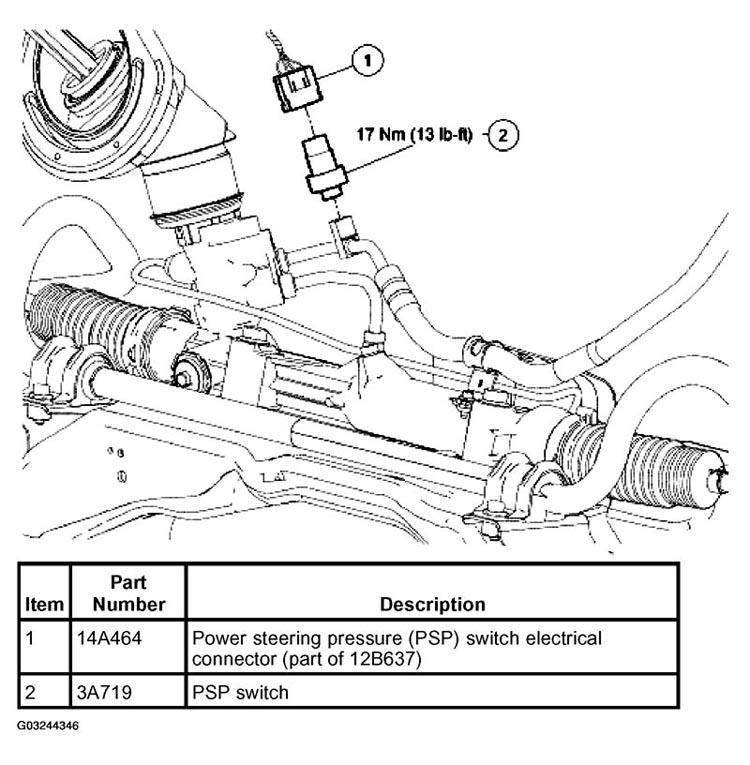

    Fig 1: Power Steering Position (PSP) Switch Parts Removal Sequence
    G03244346Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
