Fuel Pump Driver Module (FPDM)

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH lower B-piller trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the parts in the order indicated in Fig 1.

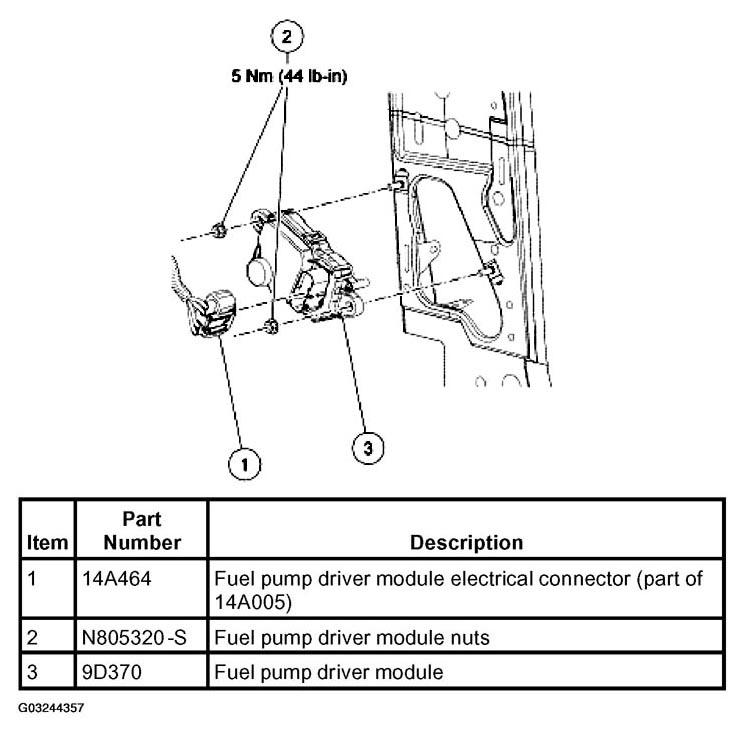

    Fig 1: Fuel Pump Driver Module (FPDM) Parts Removal Sequence
    G03244357Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
