Item 3: Fuel Tube Spring Lock Coupling Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tool.

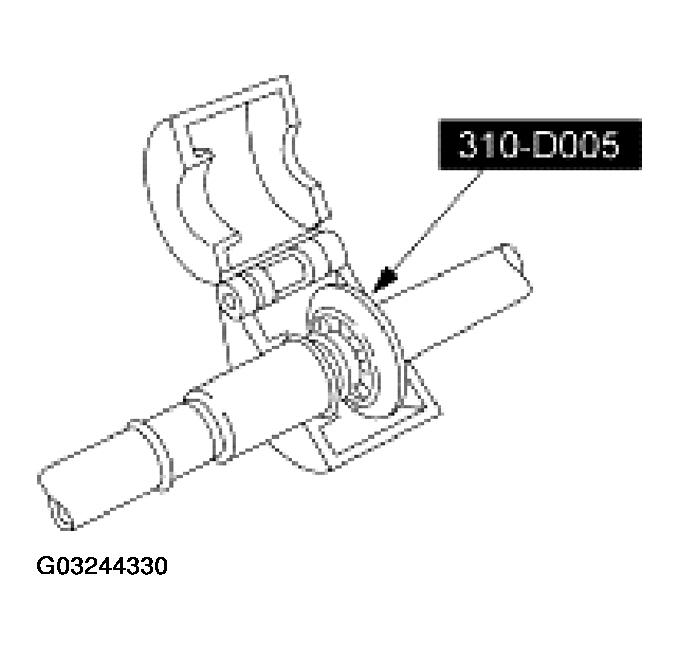

    Fig 1: Installing Spring Lock Coupling Removal Tool
    G03244330Courtesy of FORD MOTOR CO.
  2. Close and push the special tool into the open side of the cage.

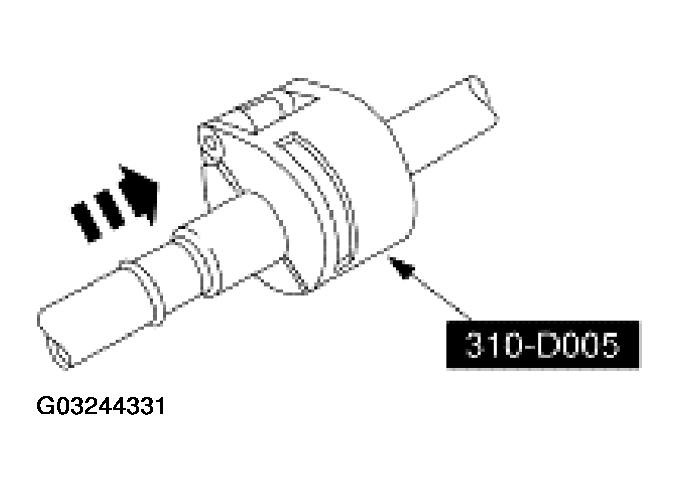

    Fig 2: Closing And Push Spring Lock Coupling Removal Tool Into Open Side Of Cage
    G03244331Courtesy of FORD MOTOR CO.
  3. Separate the fuel tube fitting.

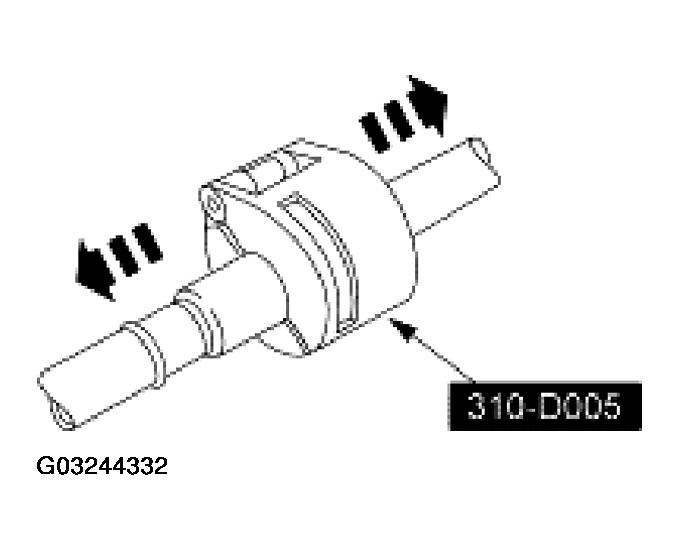

    Fig 3: Separating Fuel Tube Fitting
    G03244332Courtesy of FORD MOTOR CO.
  4. Remove the special tool.
    Fig 4: Removing Special Tool
    G03244333Courtesy of FORD MOTOR CO.
