Camshaft Position (CMP) Sensor: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

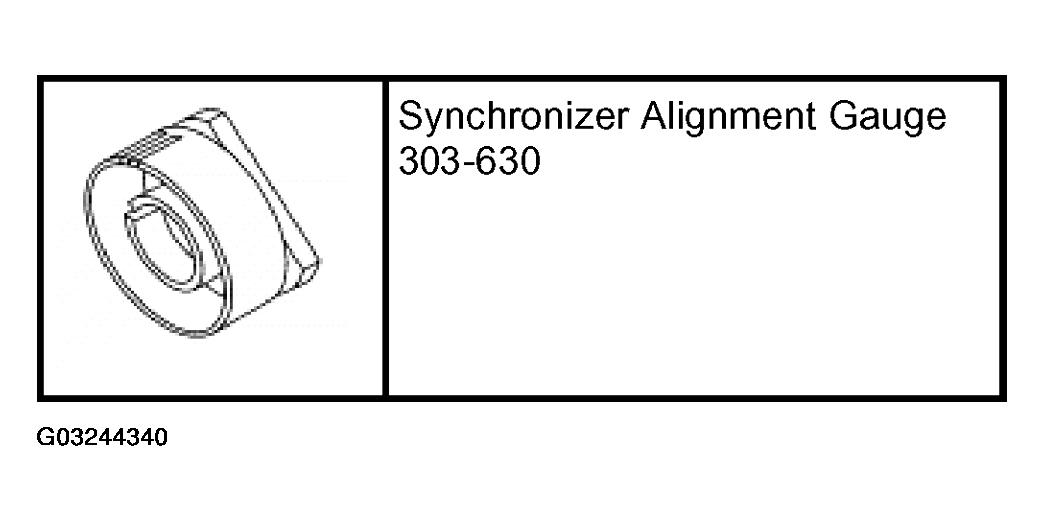

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
SAE 5W-20 Motorcraft Premium Synthetic Blend Motor Oil XO-5W20-QSP	WSS-M2C153-H

Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
If removing the camshaft synchronizer, drain the cooling system. For additional information, refer to ENGINE COOLING .
If removing the camshaft synchronizer, remove the accessory drive belt.
- Rotate the accessory drive belt tensioner counterclockwise.
- Push the spring clip toward the belt tensioner to lock the accessory drive belt tensioner in place.

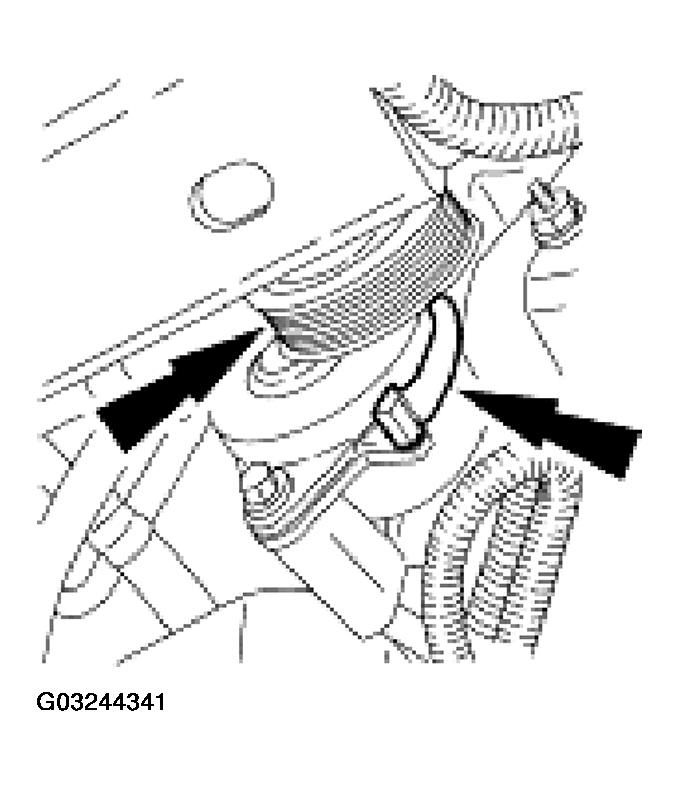

  Fig 2: Removing Accessory Drive Belt
  Courtesy of FORD MOTOR CO.

Remove the parts in the order indicated in Fig 3 and table.

PART REMOVAL SEQUENCE

Part	Steps
Camshaft position (CMP) sensor	1-3
Camshaft synchronizer	1-11

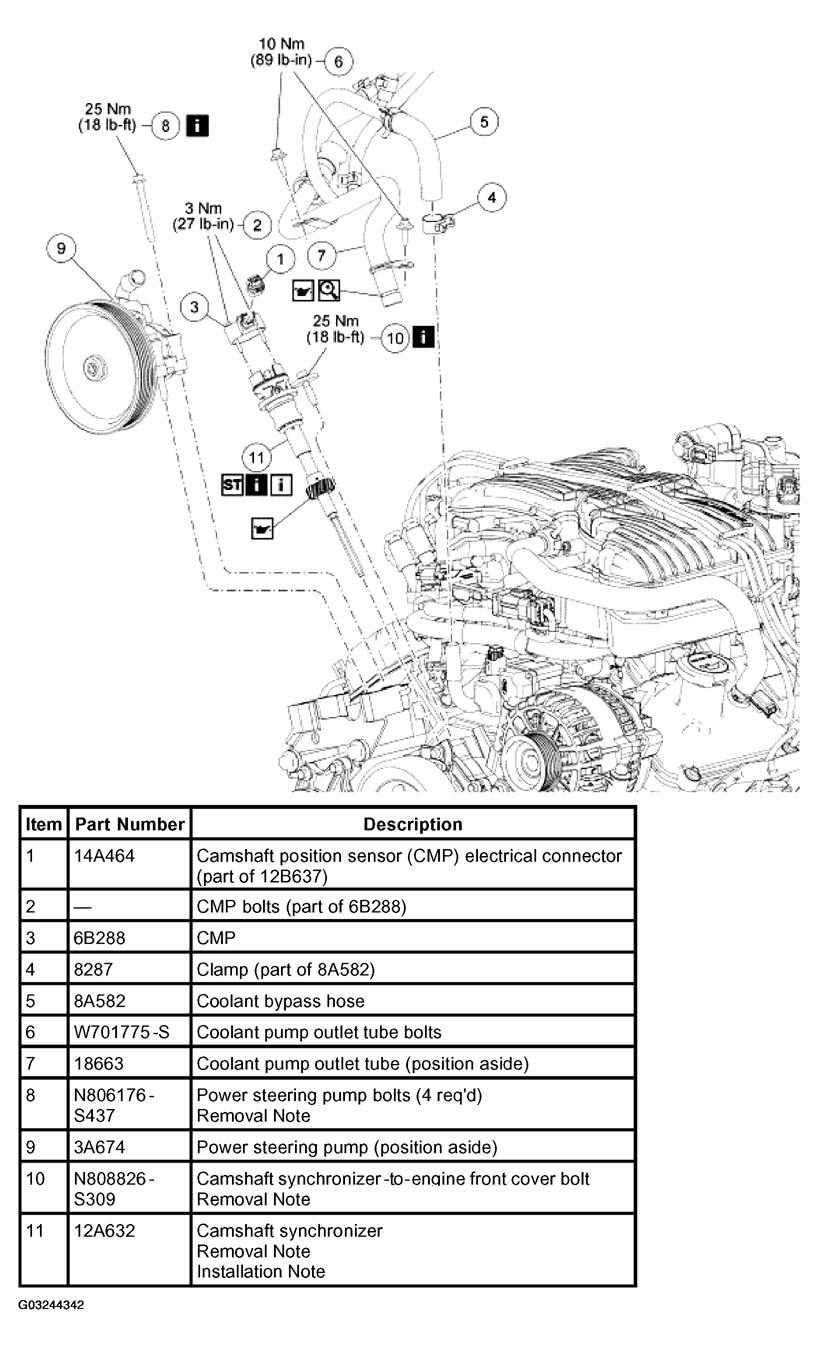

Fig 3: Camshaft Position (CMP) Sensor Parts Removal Sequence

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
