Air Cleaner Assembly: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in Fig 1 and table.
    PART REMOVAL SEQUENCE

    Part Steps
    Air cleaner outlet pipe 1-4
    Air cleaner element 1,2, 5-8
    Air cleaner assembly 1-5, 9, 10

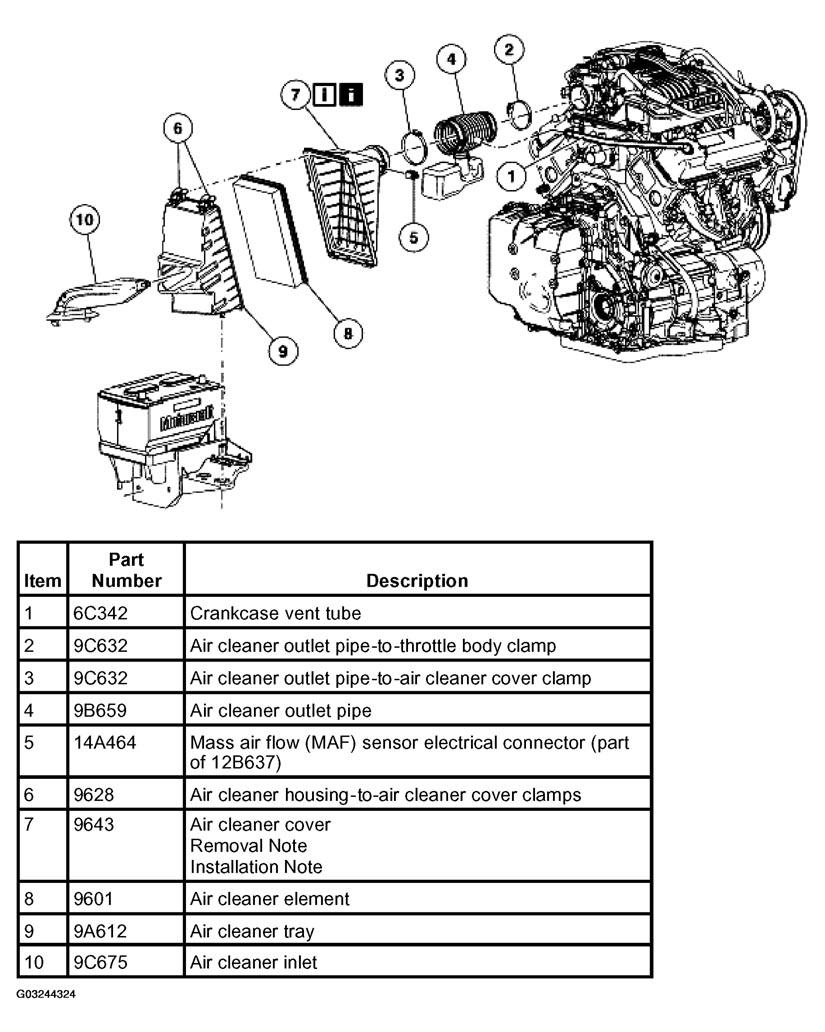

    Fig 1: Air Cleaner Assembly Removal Sequence
    G03244324Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
