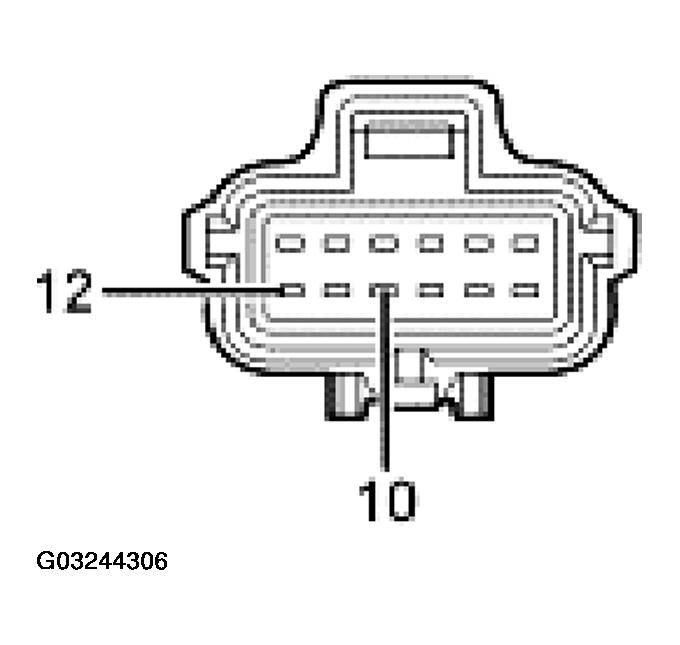

TR SENSOR C167 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 10 | CKT 33 (WH/PK) TR sensor to starter relay coil | 10,000 ohms or greater to chassis ground and 0 volts. |
| 12 | CKT 32 (RD/LB) TR sensor voltage feed | 10 volts or greater in START position. |
