Powertrain Control Module (PCM) C175

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

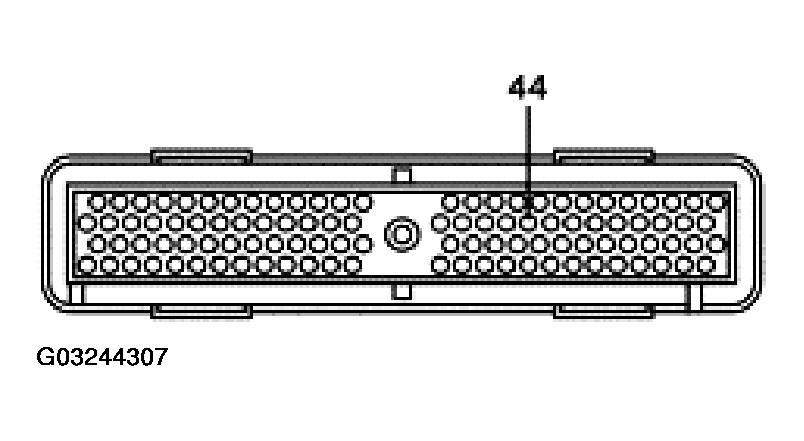

Fig 1: Identifying Powertrain Control Module (PCM) C175 Terminals
G03244307Courtesy of FORD MOTOR CO.
POWERTRAIN CONTROL MODULE (PCM) C175 - CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description  Normal Condition/Measurement
44 CKT 1419 (LG/YE) PCM to starter relay coil Greater than 10 volts with ignition in START position.
