Ignition Switch C250

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

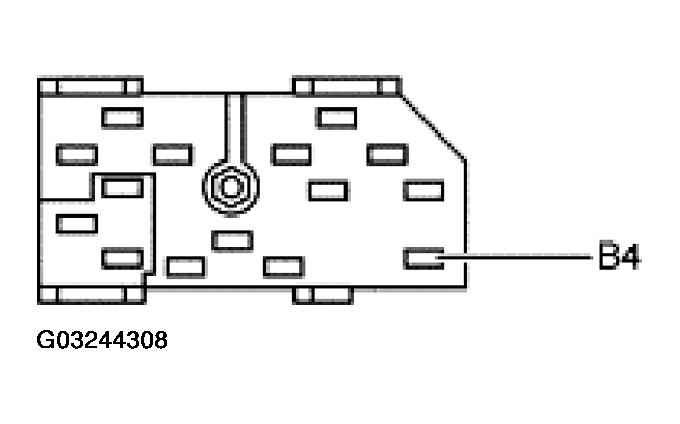

Fig 1: Identifying Ignition Switch C250 Terminals
G03244308Courtesy of FORD MOTOR CO.
IGNITION SWITCH C250 - CIRCUIT DESIGNATION/DESCRIPTION

Pin Number(s) Circuit Designation/Description  Normal Condition/Measurement
B4 CKT 1050 (LG/VT) voltage feed to ignition switch Greater than 10 volts at all times.
