Item 8: Generator Bracket Brace Bolts Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

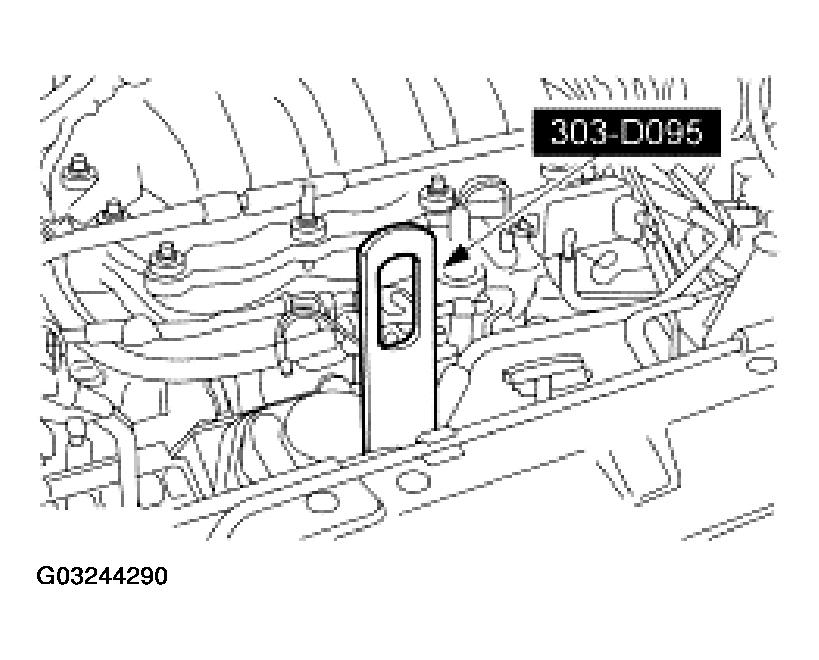

  1. Install the special tools to the exhaust manifold.
    Fig 1: Installing Special Tools To Exhaust Manifold
    G03244290Courtesy of FORD MOTOR CO.

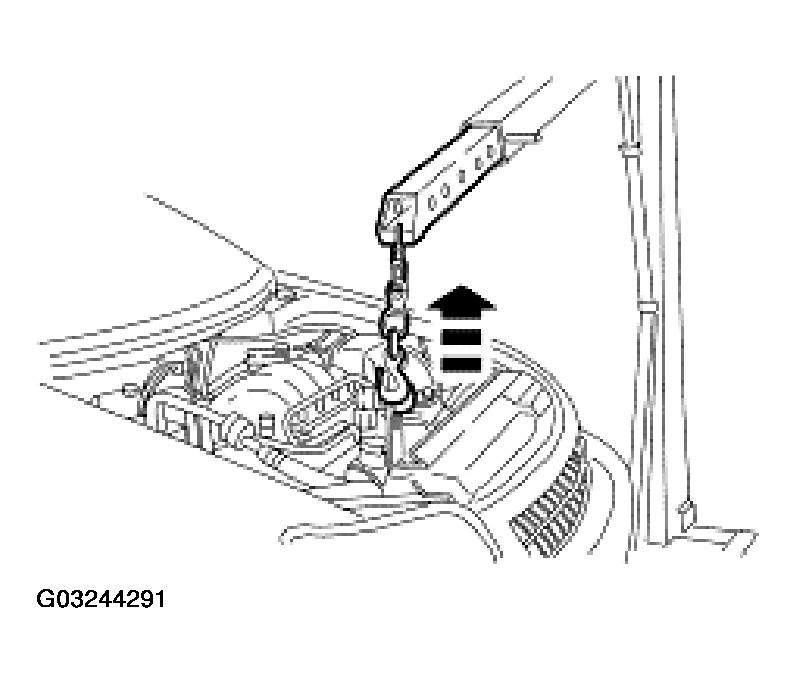

  2. Attach engine lifting equipment and raise the engine.
    Fig 2: Raising Engine
    G03244291Courtesy of FORD MOTOR CO.
