Bypass Tube

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color)	WSS-M97B51-A1

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the parts in the order indicated in Fig 1.

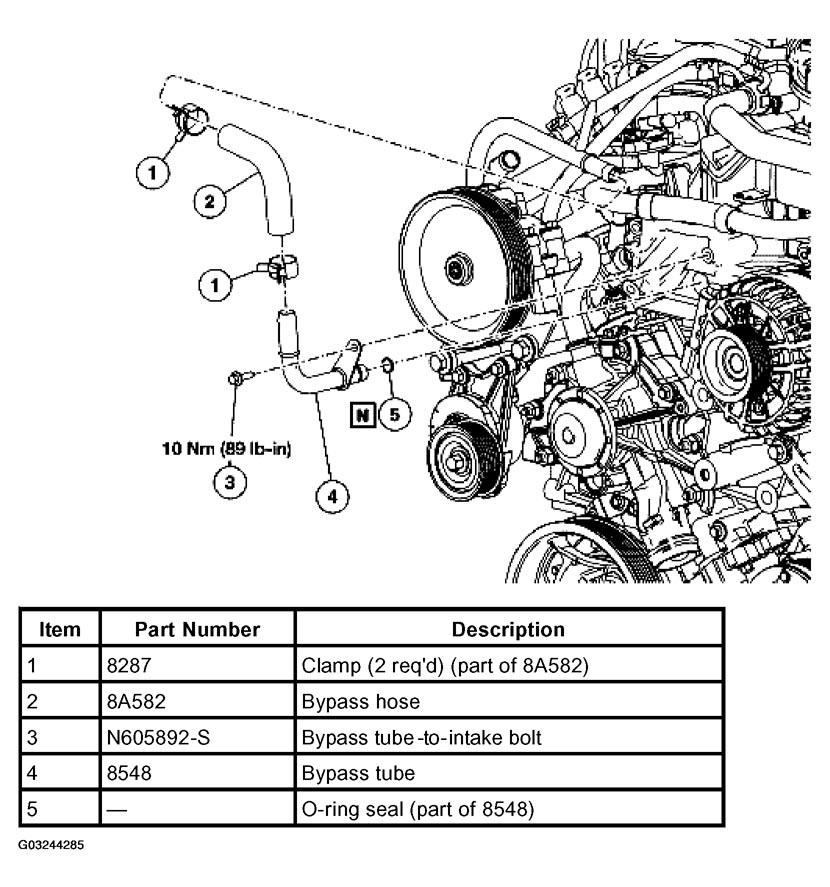

Fig 1: Bypass Tube Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
