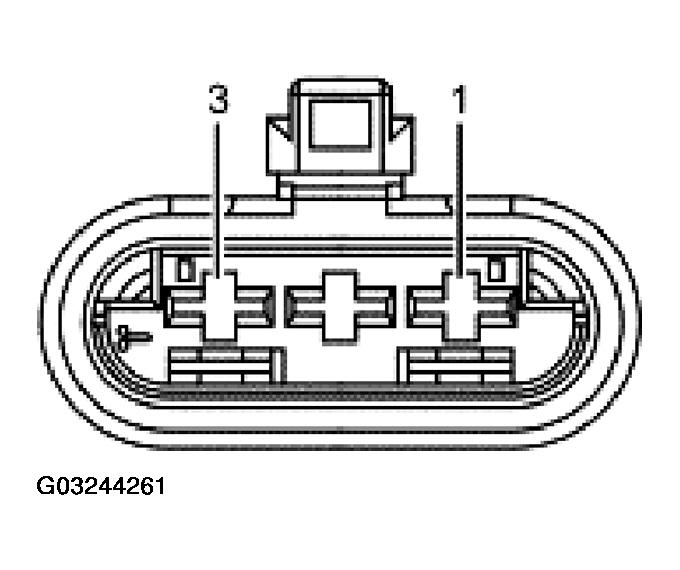

RH Cooling Fan Motor C1077
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
RH COOLING FAN MOTOR C1077 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1825 (LG/YE) cooling fan relay to fan motor | Greater than 10 volts when cooling fan command on. |
| 3 | CKT 461 (OG) cooling fan motor ground | 0 ohms to chassis ground when cooling fan is commanded high. |
