LH Cooling Fan Motor C1074 (Vehicles without trailer tow package)
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

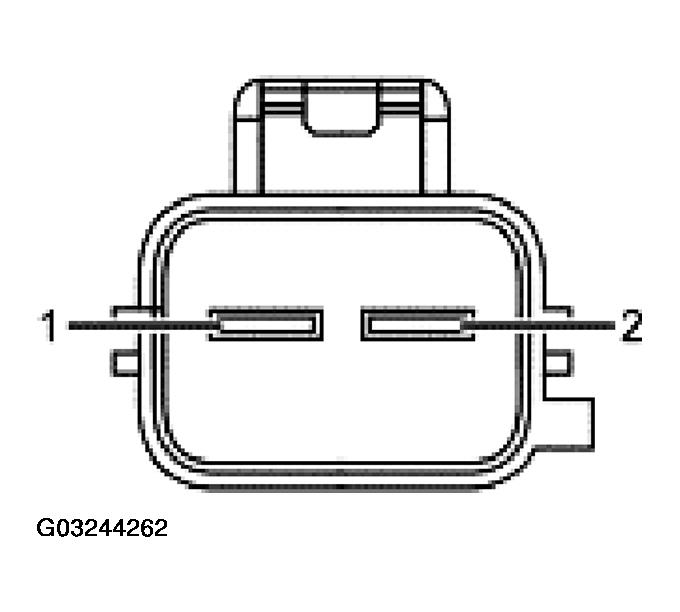

LH COOLING FAN MOTOR C1074 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 1824 (LG/VT) cooling fan relay to fan motor | Greater than 10 volts when cooling fan relay engaged. |
| 1 | CKT 462 (VT) cooling fan motor ground | 0 ohms to chassis ground when cooling fan is commanded high. |
