Cooling Fan Resistor

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

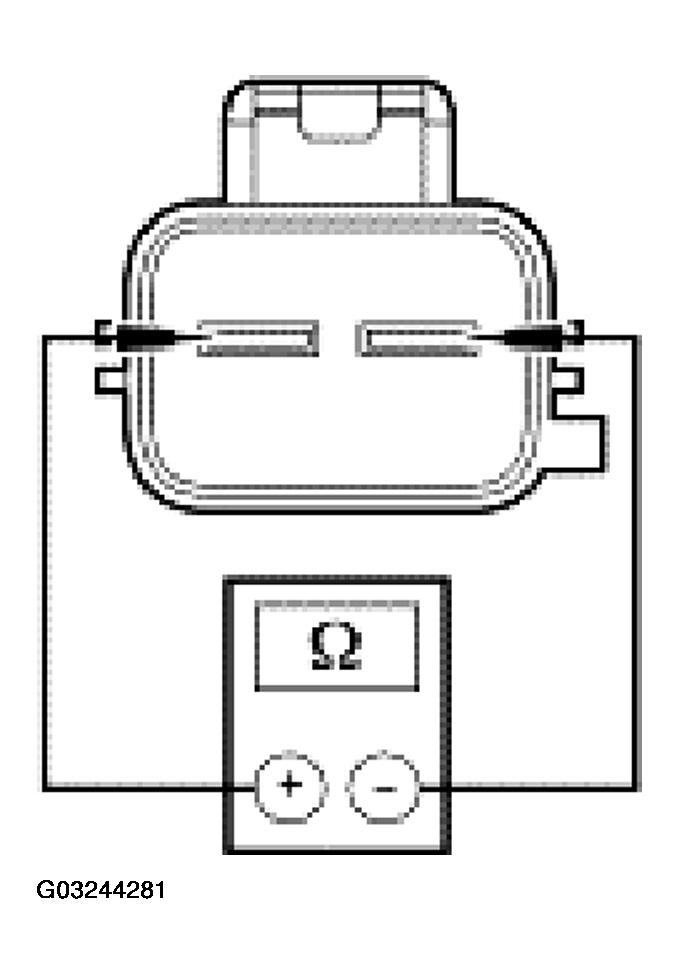

Fig 1: Identifying Cooling Fan Resistor
G03244281Courtesy of FORD MOTOR CO.
COOLING FAN RESISTOR - RESISTANCE SPECIFICATION

Blower Motor Resistor Pins Resistance
1 and 2 0.18 ohms
