Items 3-1: Rocker Arm Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker arms.
    • Position the rocker arms and pivots.
    • Hand-start the bolts.
    • Tighten the bolts in two stages.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 32 Nm (24 lb-ft).

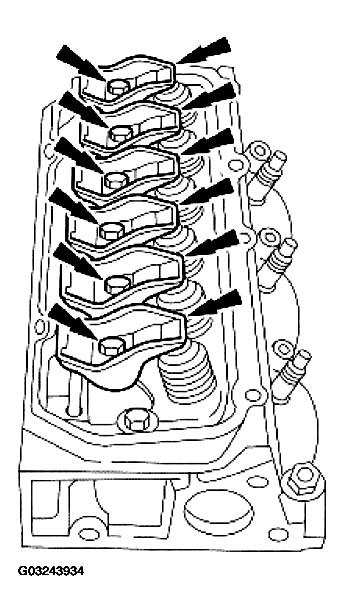

    Fig 1: Tightening Rocker Arm Bolts
    G03243934Courtesy of FORD MOTOR CO.
