Items 3, 4 and 5: A/C Compressor Bracket and Fasteners Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the engine lifting equipment and raise the engine.

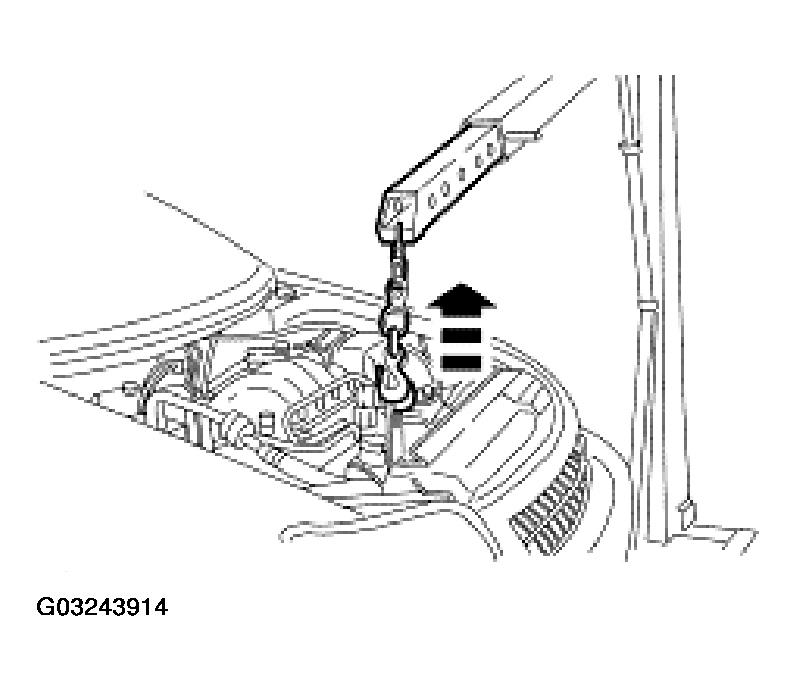

    Fig 1: Attaching Engine Lifting Equipment And Raising Engine
    G03243914Courtesy of FORD MOTOR CO.
  2. Install the A/C compressor bracket and fasteners.
  3. Lower the engine.
  4. Install the bolt to the LH motor mount.
  5. Detach the engine lifting equipment.
