Items 3, 4 And 5: A/C Compressor Bracket And Fasteners Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tool to the exhaust manifold.

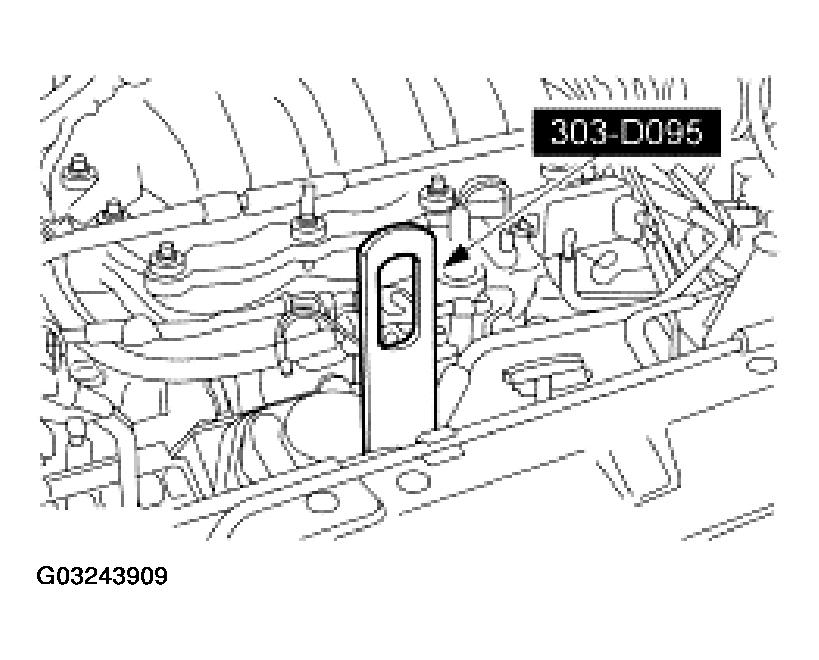

    Fig 1: Installing Special Tool To Exhaust Manifold
    G03243909Courtesy of FORD MOTOR CO.
  2. Attach the engine lifting equipment and raise the engine.

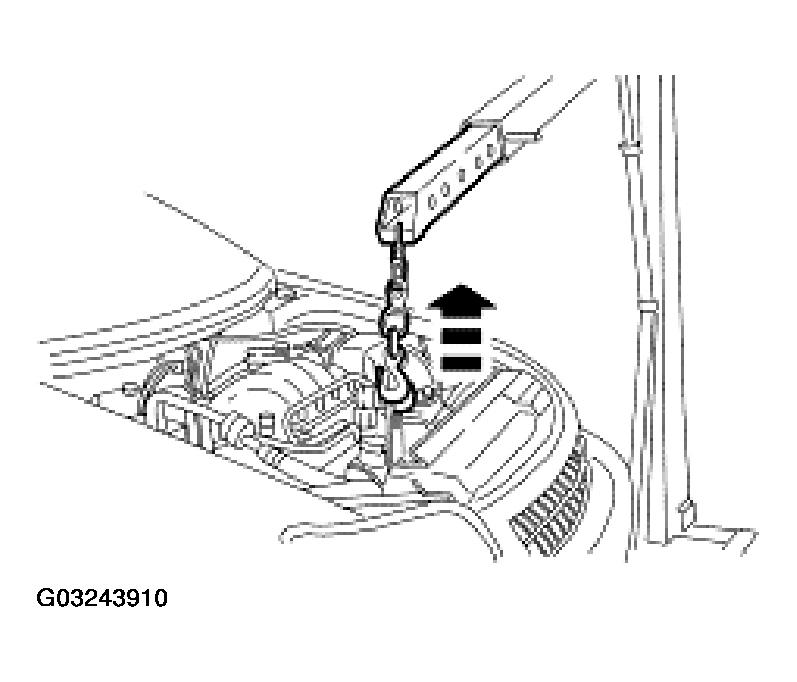

    Fig 2: Attaching Engine Lifting Equipment And Raising Engine
    G03243910Courtesy of FORD MOTOR CO.
  3. Remove the 5 bolts, 2 nuts and the A/C compressor bracket.
  4. Lower the engine.
  5. Detach the engine lifting equipment.
